LZS88CDYM604W0 - Exmark 60" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV88C (SN: 402082300 - 404314158) (2018) Fuel Assembly Parts Diagram

60" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV88C

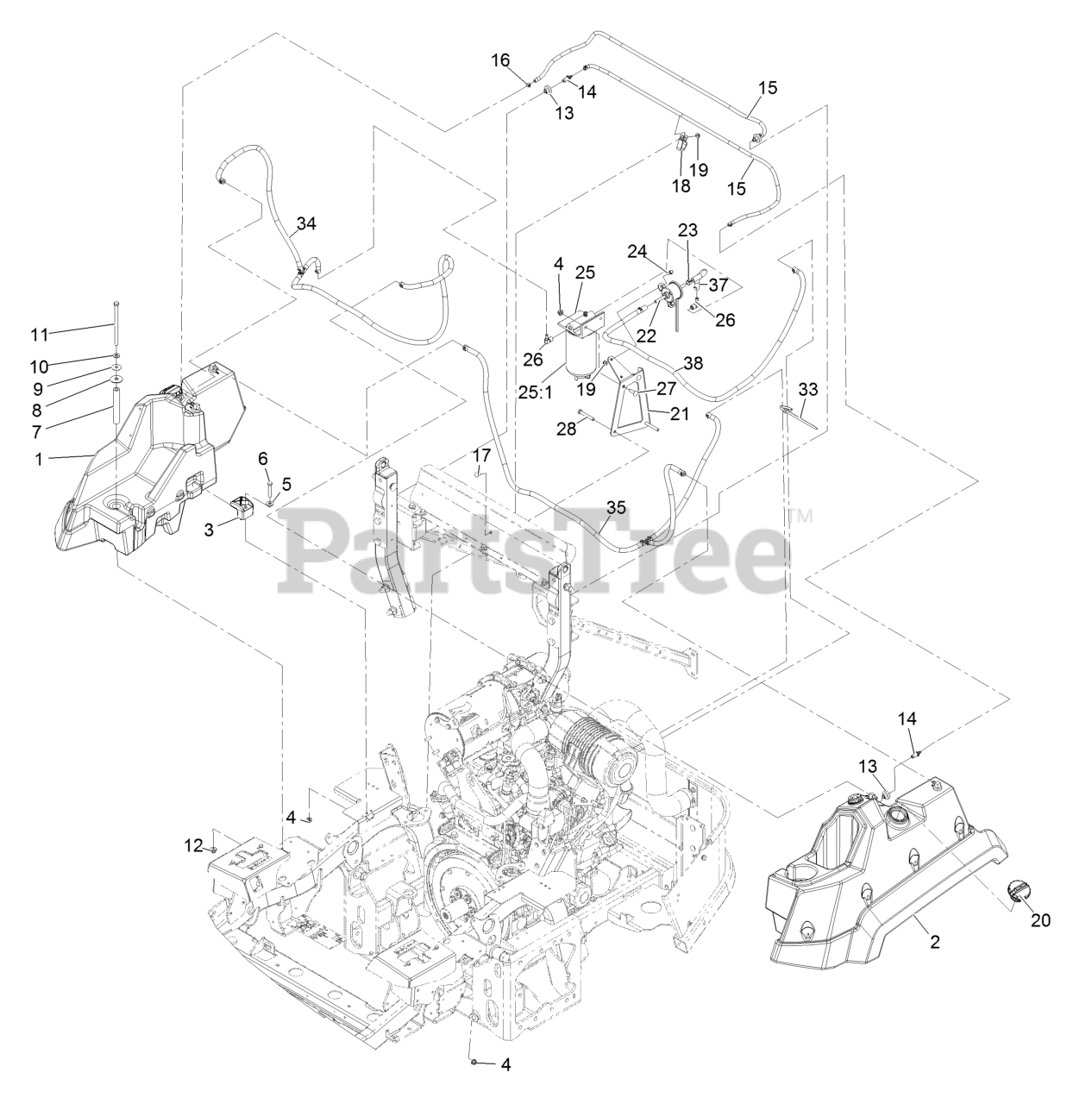

Fuel Assembly Parts Diagram

  • Title

1

Exmark 126-8651

RH Fuel Tank ASM
(Superseded to 142-8638)

$387.99

$

Usually ships in 3-6 days

0

2

Exmark 126-8652

LH Fuel Tank ASM
(Superseded to 142-8637)

$464.99

$

Usually ships in 3-6 days

0

3

Exmark 107-4543

Clamp

$13.99

$

Usually ships in 3-6 days

0

4

Exmark 104-8300

Nut-Nyloc 5/16-18 Flg

$1.49

$

In Stock, Qty 20+

0

5

Exmark 3256-3

Washer-5/16 Std

$0.99

$

In Stock, Qty 18

0

6

Exmark 322-21

Screw-HH

$5.49

$

In Stock, Qty 20+

0

7

Exmark 126-8335

Tube-Spacer

$15.99

$

Usually ships in 3-6 days

0

8

Exmark 95-1905

Washer-Rubber

$2.99

$

In Stock, Qty 8

0

9

Exmark 105-6814

Washer-Plain

$1.49

$

Usually ships in 3-6 days

0

10

Exmark 3256-24

Washer-3/8 SAE

$0.99

$

In Stock, Qty 20+

0

11

Exmark 323-22

Screw-HH

$15.99

$

Usually ships in 3-6 days

0

12

Exmark 104-8301

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

13

Exmark 46-6560

Bushing

$5.99

$

In Stock, Qty 20+

0

14

Exmark 116-4630

Fitting-Orifice, Straight

$5.49

$

Usually ships in 3-6 days

0

15

Exmark 117-6395

Hose-Vent, Tank

$20.99

$

Usually ships in 3-6 days

0

16

Exmark 2412-80

Clamp-Hose

$5.49

$

In Stock, only 1 left!

0

17

Exmark 3229-11

Bolt-Carriage 1/4-20 X 5/8

$1.49

$

In Stock, Qty 20+

0

18

Exmark 92-5753

Clamp-Hose

$5.49

$

Usually ships in 3-6 days

0

19

Exmark 104-7201

Nut-Nyloc 1/4-20 Flg

$1.49

$

In Stock, Qty 20+

0

20

Exmark 135-2715

Cap-Fuel, Diesel

$21.99

$

In Stock, only 3 left!

0

21

Exmark 126-8795-03

Bracket-Filter, Fuel

$33.99

$

Usually ships in 3-6 days

0

22

Exmark 121-5613

Pump-Fuel, Electric

$328.99

$

Usually ships in 3-6 days

0

23

Exmark 92-2379

Clamp-Hose

$0.99

$

Usually ships in 3-6 days

0

24

Exmark 32105-15

Screw-Machine 1/4-20 X 3/4

$2.99

$

In Stock, Qty 13

0

25

Exmark 125-2914

Separator Filter ASM

$111.99

$

Usually ships in 3-6 days

0

25

Exmark 126-8294

Filter-Water/Fuel Seperator

$137.99

$

In Stock, only 1 left!

0

25:1

Exmark 125-2915

Filter-Fuel/Water Separator

$42.99

$

In Stock, only 2 left!

0

26

Exmark 353-781

Fitting-Elb, 90

$27.99

$

Usually ships in 3-6 days

0

27

Exmark 3230-22

Bolt-Carriage 5/16-18 X 1 Sp
(Superseded to 3230-22)

$2.49

$

In Stock, Qty 20+

0

28

Exmark 322-11

Screw-HH 5/16-18 X 2 1/4
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0

33

Exmark 1-303335

Tie-Cable 7 15/16 (Large)
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

34

Exmark 135-0512

Fuel Suction Line ASM

$69.99

$

Usually ships in 3-6 days

0

35

Exmark 135-0513

Fuel Return Line ASM

$69.99

$

Usually ships in 3-6 days

0

37

Exmark 108-3280

Hose-Fuel

$5.99

$

Usually ships in 3-6 days

0

38

Exmark 110-7503

Hose-Fuel

$51.99

$

Usually ships in 3-6 days

0
