LZS88CDYM724W0 - Exmark 72" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV88C (SN: 402082300 - 404314158) (2018) Generator Assembly Parts Diagram

72" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV88C

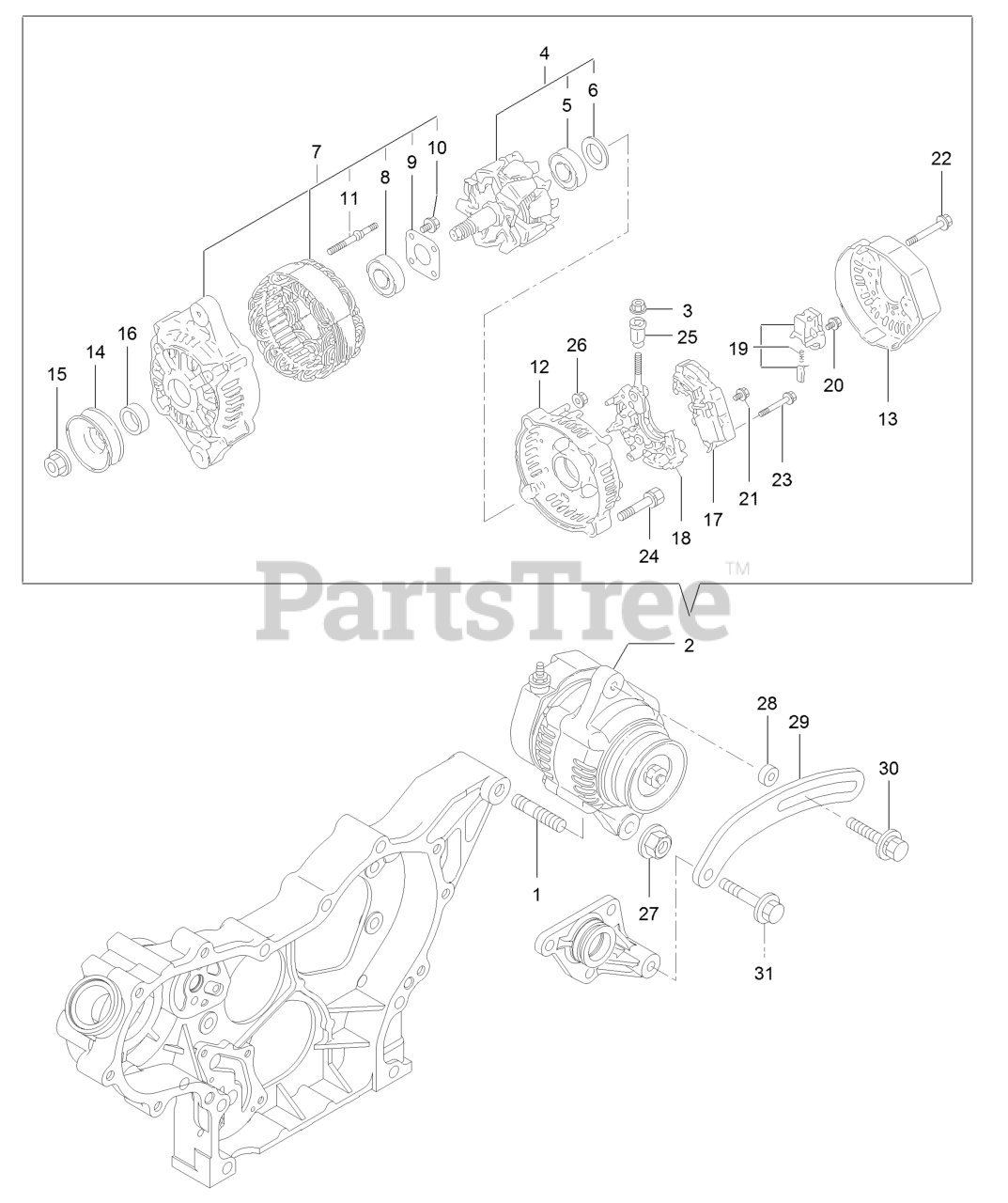

Generator Assembly Parts Diagram

  • Title

1

Exmark 127-3011

Stud

$9.99

$

Usually ships in 3-6 days

0

2

Exmark 127-3841

Generator

$1546.99

$

Usually ships in 3-6 days

0

3

Exmark 127-3190

Nut

$5.49

$

Usually ships in 3-6 days

0

4

Exmark 127-3843

Rotor ASM

$

$

Currently unavailable

5

Exmark 127-2983

Bearing-Ball

$30.99

$

Usually ships in 3-6 days

0

6

Exmark 127-2962

Cover

$

$

Currently unavailable

7

Exmark 135-4025

Frame ASM

$744.99

$

Usually ships in 3-6 days

0

8

Exmark 127-2958

Bearing-Ball

$31.99

$

Usually ships in 3-6 days

0

9

Exmark 127-2959

Plate-Retainer

$

$

Currently unavailable

10

Exmark 127-2960

Screw

$

$

Currently unavailable

11

Exmark 127-2961

Stud

$

$

Currently unavailable

12

Exmark 127-3845

Frame

$

$

Currently unavailable

13

Exmark 127-3846

Cover

$

$

Currently unavailable

14

Exmark 127-2954

Pulley

$72.99

$

Usually ships in 3-6 days

0

15

Exmark 127-2955

Nut

$

$

Currently unavailable

16

Exmark 127-2957

Collar

$16.99

$

0

17

Exmark 135-4026

Regulator ASM
(Superseded to 135-4278)

$1092.99

$

Usually ships in 3-6 days

0

18

Exmark 127-3848

Holder

$303.99

$

Usually ships in 3-6 days

0

19

Exmark 127-2993

Holder

$102.99

$

Usually ships in 3-6 days

0

20

Exmark 127-2965

Screw

$

$

Currently unavailable

21

Exmark 127-2966

Screw

$

$

Currently unavailable

22

Exmark 127-2967

Bolt

$

$

Currently unavailable

23

Exmark 127-2968

Screw

$5.49

$

Usually ships in 3-6 days

0

24

Exmark 127-2969

Bolt

$

$

Currently unavailable

25

Exmark 127-2970

Bushing-Insulation

$

$

Currently unavailable

26

Exmark 127-2971

Nut

$

$

Currently unavailable

27

Exmark 125-7230

Nut

$3.49

$

Usually ships in 3-6 days

0

28

Exmark 125-6947

Spacer

$23.99

$

Usually ships in 3-6 days

0

29

Exmark 127-2977

Adjuster

$118.99

$

Usually ships in 3-6 days

0

30

Exmark 135-4027

Bolt-Adjust

$6.49

$

Usually ships in 3-6 days

0

31

Exmark 125-7219

Bolt

$5.49

$

Usually ships in 3-6 days

0
