LZS88CDYM96RW0 - Exmark 96" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV88C (SN: 402082300 - 404314158) (2018) Cooling Water System Assembly Parts Diagram

96" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV88C

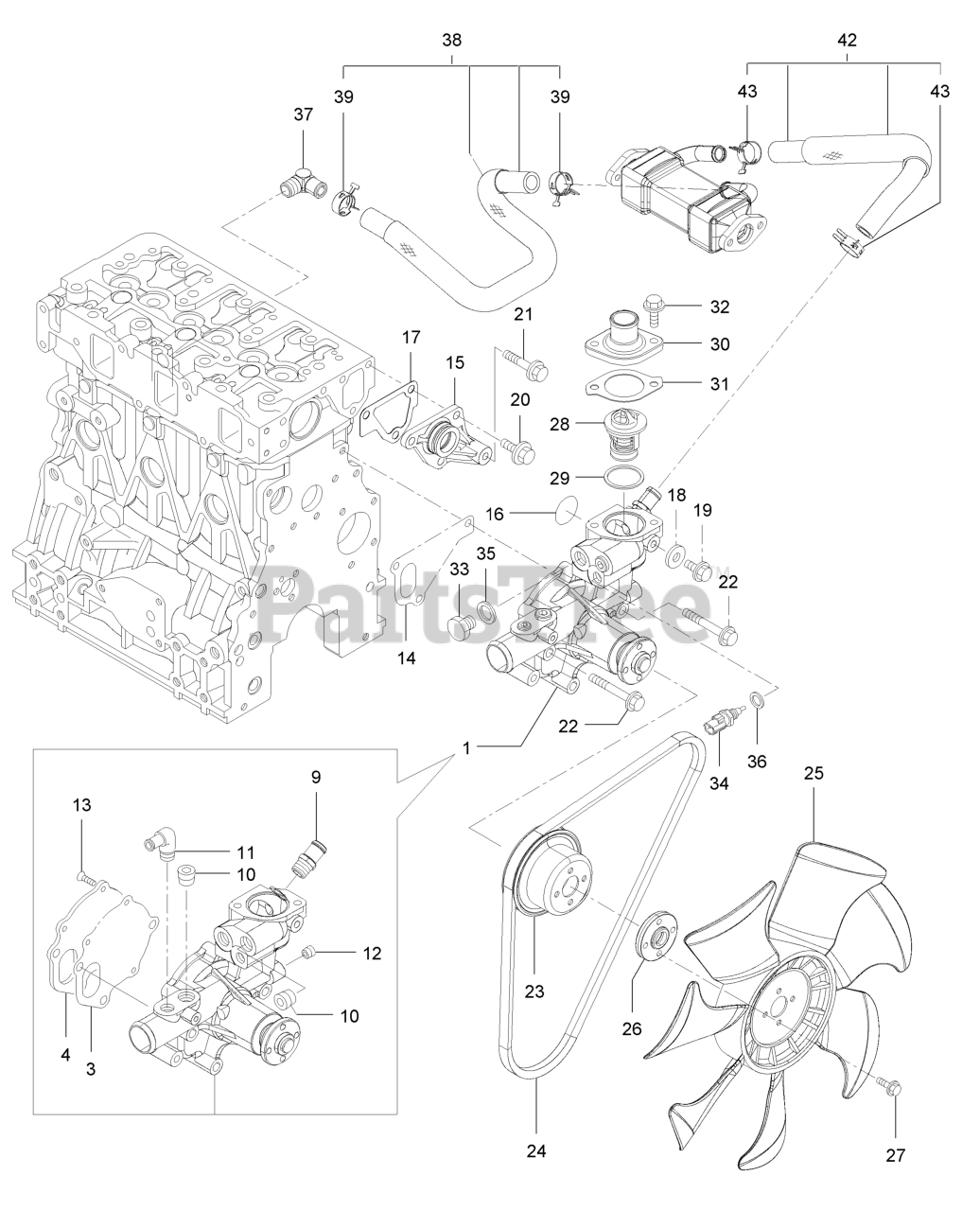

Cooling Water System Assembly Parts Diagram

  • Title

1

Exmark 127-3071

Water Pump ASM

$945.99

$

Usually ships in 3-6 days

0

3

Exmark 125-6998

Gasket

$12.99

$

Usually ships in 3-6 days

0

4

Exmark 125-6999

Plate

$61.99

$

Usually ships in 3-6 days

0

9

Exmark 127-3017

Joint

$74.99

$

Usually ships in 3-6 days

0

10

Exmark 125-7123

Plug

$10.99

$

Usually ships in 3-6 days

0

11

Exmark 125-7001

Elbow

$42.99

$

Usually ships in 3-6 days

0

12

Exmark 125-7195

Plug

$2.99

$

Usually ships in 3-6 days

0

13

Exmark 125-7234

Screw

$2.99

$

Usually ships in 3-6 days

0

14

Exmark 125-7047

Gasket

$5.49

$

Usually ships in 3-6 days

0

15

Exmark 125-6986

Joint

$25.99

$

Usually ships in 3-6 days

0

16

Exmark 125-7048

O-Ring

$2.99

$

Usually ships in 3-6 days

0

17

Exmark 125-6978

Gasket

$2.49

$

Usually ships in 3-6 days

0

18

Exmark 125-7192

Gasket

$1.49

$

Usually ships in 3-6 days

0

19

Exmark 93-0362

Bolt

$5.49

$

Usually ships in 3-6 days

0

20

Exmark 100-6928

Bolt

$4.99

$

Usually ships in 3-6 days

0

21

Exmark 125-7219

Bolt

$5.49

$

Usually ships in 3-6 days

0

22

Exmark 125-7222

Bolt

$5.49

$

Usually ships in 3-6 days

0

23

Exmark 127-4712

V-Pulley

$21.99

$

Usually ships in 3-6 days

0

24

Exmark 127-4771

V-Belt

$55.99

$

In Stock, only 1 left!

0

25

Exmark 127-4702

Fan

$75.99

$

Usually ships in 3-6 days

0

26

Exmark 127-3810

Spacer

$72.99

$

Usually ships in 3-6 days

0

27

Exmark 125-7209

Bolt

$3.49

$

Usually ships in 3-6 days

0

28

Exmark 125-7029

Thermostat

$64.99

$

Usually ships in 3-6 days

0

29

Exmark 125-7026

Gasket

$3.49

$

Usually ships in 3-6 days

0

30

Exmark 125-7034

Cover

$89.99

$

Usually ships in 3-6 days

0

31

Exmark 125-7110

Gasket

$4.49

$

Usually ships in 3-6 days

0

32

Exmark 125-7594

Bolt

$3.49

$

Usually ships in 3-6 days

0

33

Exmark 125-6953

Plug

$7.99

$

Usually ships in 3-6 days

0

34

Exmark 125-7124

Sensor-Thermostat, CW

$109.99

$

Usually ships in 3-6 days

0

35

Exmark 125-6979

Gasket

$2.99

$

Usually ships in 3-6 days

0

36

Exmark 125-7176

Washer-Seal

$8.49

$

Usually ships in 3-6 days

0

37

Exmark 127-4705

Elbow

$58.99

$

Usually ships in 3-6 days

0

38

Exmark 127-4757

E G R-C Pipe ASM

$67.99

$

Usually ships in 3-6 days

0

39

Exmark 127-3020

Clip-Hose

$

$

Currently unavailable

42

Exmark 127-3811

CW Pipe ASM

$94.99

$

Usually ships in 3-6 days

0

43

Exmark 127-3020

Clip-Hose

$

$

Currently unavailable
