LZS88CDYM96RW0 - Exmark 96" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV88C (SN: 402082300 - 404314158) (2018) Cylinder Block Assembly Parts Diagram

96" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV88C

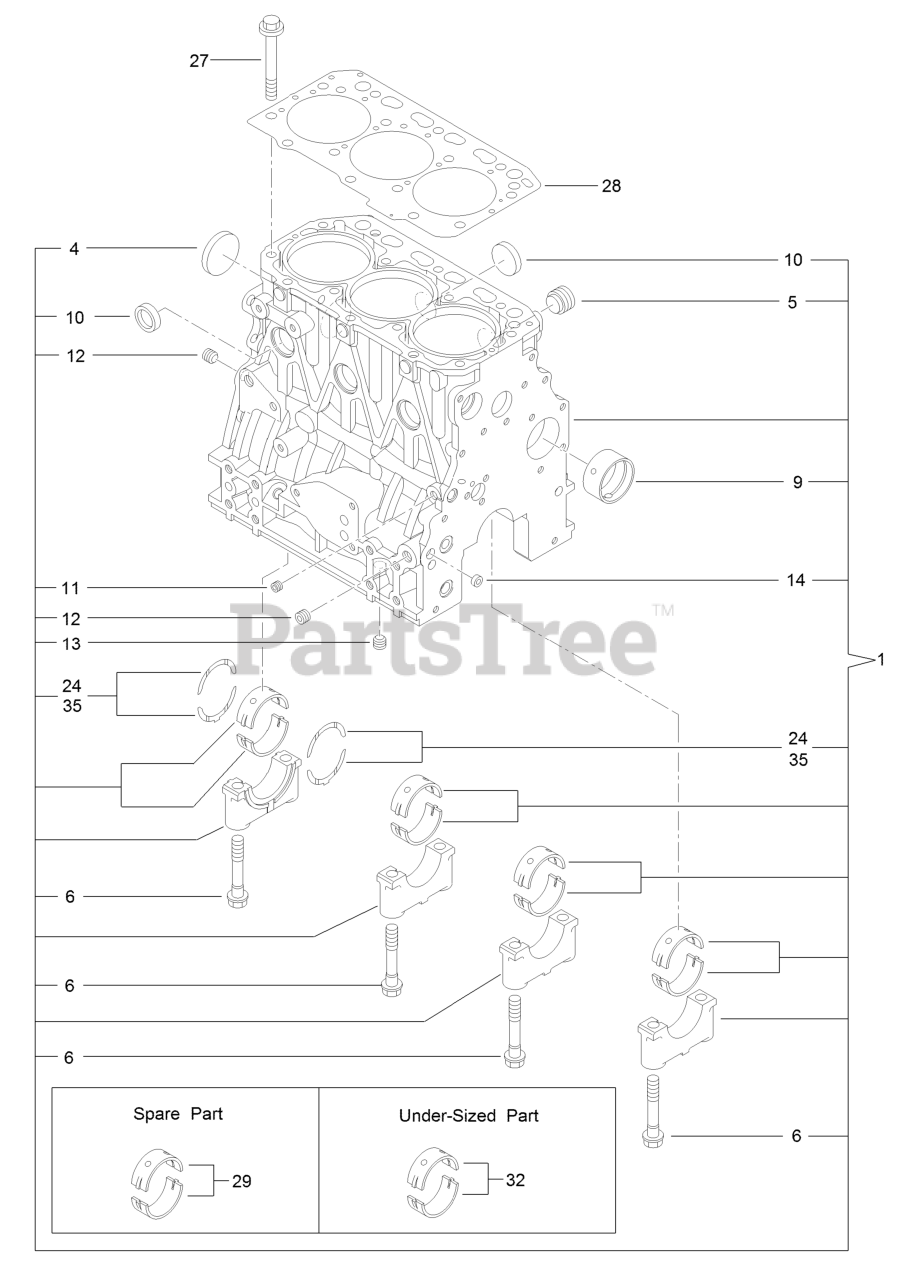

Cylinder Block Assembly Parts Diagram

  • Title

1

Exmark 127-4717

Cylinder Block ASM

$4682.99

$

Usually ships in 3-6 days

0

4

Exmark 125-6980

Plug

$5.99

$

Usually ships in 3-6 days

0

5

Exmark 125-7170

Plug

$14.99

$

Usually ships in 3-6 days

0

6

Exmark 125-7007

Bolt

$36.99

$

Usually ships in 3-6 days

0

9

Exmark 125-7108

Bushing

$43.99

$

In Stock, only 1 left!

0

10

Exmark 125-7239

Plug

$14.99

$

Usually ships in 3-6 days

0

11

Exmark 125-6969

Plug

$2.99

$

Usually ships in 3-6 days

0

12

Exmark 125-6973

Plug

$2.99

$

Usually ships in 3-6 days

0

13

Exmark 125-6973

Plug

$2.99

$

Usually ships in 3-6 days

0

14

Exmark 125-7237

Plug

$2.49

$

Usually ships in 3-6 days

0

24

Exmark 125-7010

Metal-Thrust

$9.99

$

In Stock, only 2 left!

0

27

Exmark 125-7006

Bolt

$36.99

$

Usually ships in 3-6 days

0

28

Exmark 127-4716

Head Gasket ASM

$79.99

$

Usually ships in 3-6 days

0

29

Exmark 125-6981

Metal-Main

$40.99

$

Usually ships in 3-6 days

0

32

Exmark 125-7009

Metal-Main (0.25)

$29.99

$

Usually ships in 3-6 days

0

35

Exmark 125-7011

Metal-Thrust (0.25)

$30.99

$

Usually ships in 3-6 days

0
