LZX740EKC526 - Exmark 52" Lazer Z X-Series Zero-Turn Mower, Kohler ECV740 (SN: 313000000 - 313999999) (2013) Controls Assembly Parts Diagram

52" Lazer Z X-Series Zero-Turn Mower, Kohler ECV740

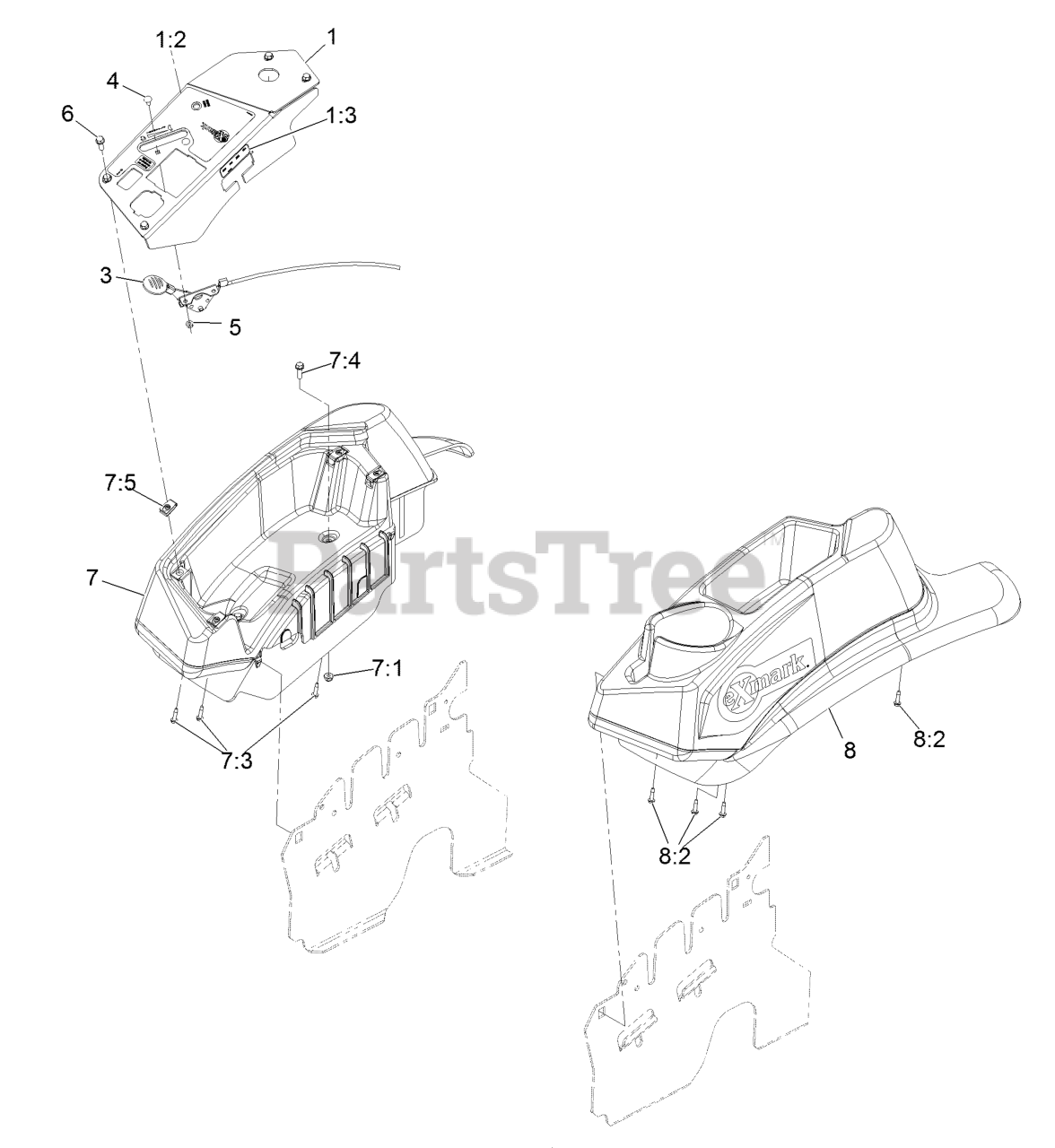

Controls Assembly Parts Diagram

  • Title

1

Exmark 116-2845

ASM,CONTROL PANEL W/DECAL

$113.99

$

Usually ships in 3-6 days

0

1:2

Exmark 116-2844

DECAL,CONTROL PANEL EFI

$26.99

$

Usually ships in 3-6 days

0

1:3

Exmark 109-7330

DECAL-FUSE

$5.99

$

Usually ships in 3-6 days

0

3

Exmark 116-0969

ASM,THROTTLE CABLE

$49.99

$

In Stock, only 2 left!

0

4

Exmark 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 18

0

5

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

6

Exmark 32105-15

SCREW-HWH

$2.99

$

In Stock, Qty 13

0

7

Exmark 109-9341

CONSOLE,RH NARROW ASM

$225.99

$

Usually ships in 3-6 days

0

7:1

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

7:3

Exmark 109-9345

SCREW,THD FORM,HWH

$1.49

$

Usually ships in 3-6 days

0

7:4

Exmark 32105-15

SCREW-HWH

$2.99

$

In Stock, Qty 13

0

7:5

Exmark 10706-9

Nut-Retainer-Panel 1/4-20

$2.99

$

In Stock, Qty 20+

0

8

Exmark 109-9342

CONSOLE.LH NARROW ASM

$225.99

$

Usually ships in 3-6 days

0

8:2

Exmark 109-9345

SCREW,THD FORM,HWH

$1.49

$

Usually ships in 3-6 days

0
