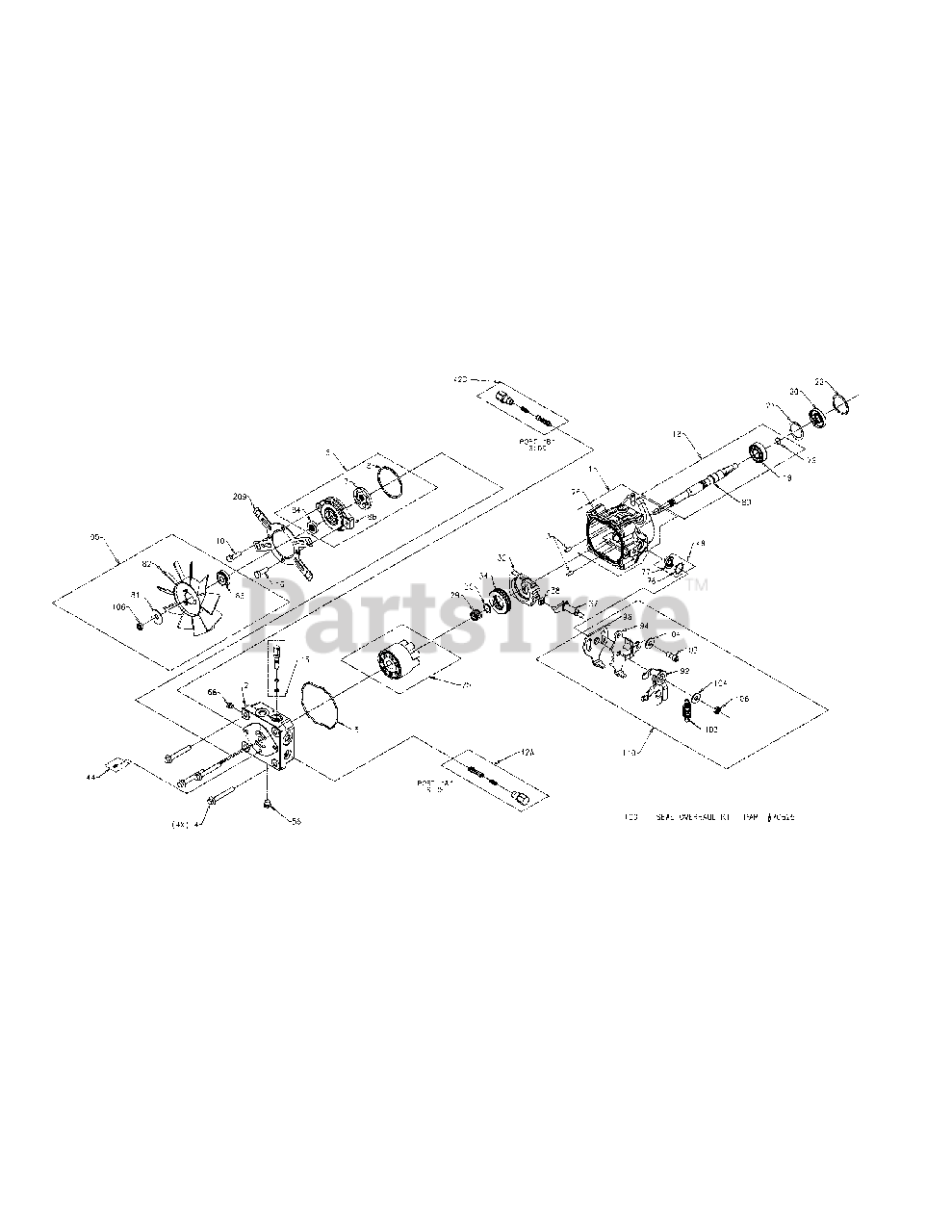

M48-KW (53AI8CT2050) - Cub Cadet 48" Tank Zero-Turn Mower, 23hp Kawasaki (2009 & Before) Hydraulic Pump RH Parts Diagram

48" Tank Zero-Turn Mower, 23hp Kawasaki

Hydraulic Pump RH Parts Diagram

  • Title

1

Cub Cadet HG-70797

Kit, Housing
(Superseded to HG-71717)

Note: (Pump)

$114.99

$

Usually ships in 3-6 days

0

2

Cub Cadet HG-52038

Kit, Endcap

$

$

Not available

3

Cub Cadet HG-50641

Straight Headless Pin

$6.49

$

Usually ships in 3-6 days

0

4

Cub Cadet HG-50969

Hex Flange Bolt M8-1.25 x 60mm Long

$5.49

$

Usually ships in 3-6 days

0

5

Cub Cadet HG-52629

Housing, O-Ring
(Superseded to HG-54022)

$7.49

$

Usually ships in 3-6 days

0

6

Cub Cadet HG-71247

Kit, Charge Pump (STD CHG .19 ci/rev, Thru)

Note: (Gerotor; O-Ring; Seal, Housing; Charge Pump)

$432.99

$

Usually ships in 3-6 days

0

10

Cub Cadet HG-9007200-3116

Screw, 5/16-18 x 1.00 Long
(Superseded to HG-72254)

$18.99

$

Usually ships in 3-6 days

0

15

Cub Cadet HG-71248

Kit, Bypass Valve

$

$

Not available

18

Cub Cadet HG-71252

Kit, Pump Shaft (15mm Tapered Keyed Thru)

Note: (Bearing, Ball 17 x 40 x 12; Ring, Ret. Wire .561 I.D.; Shaft, Input Tapered Keyed)

$295.99

$

Usually ships in 3-6 days

0

20

Cub Cadet HG-51161

Lip Seal 17 x 40 x 7 PTC

$10.99

$

Usually ships in 3-6 days

0

21

Cub Cadet HG-50951

Spacer

$3.99

$

Usually ships in 3-6 days

0

22

Cub Cadet HG-50329

Retaining Ring

$10.99

$

Usually ships in 3-6 days

0

25

Cub Cadet HG-71971

Cylinder Block Kit

$92.99

$

Usually ships in 3-6 days

0

29

Cub Cadet HG-2003014

Block Spring

$4.49

$

Usually ships in 3-6 days

0

30

Cub Cadet HG-2003017

Block Thrust Washer

$3.99

$

Usually ships in 3-6 days

0

32

Cub Cadet HG-2003087

Swashplate

$204.99

$

Usually ships in 3-6 days

0

34

Cub Cadet HG-50551P

Ball Thrust Bearing

$27.99

$

Usually ships in 3-6 days

0

37

Cub Cadet HG-50807

Arm, Trunnion Tapered Square

$

$

Not available

38

Cub Cadet HG-2000015

Slot Guide

$19.99

$

Usually ships in 3-6 days

0

42A

Cub Cadet HG-70743

Kit, Shock Valve (200 Bar, .031 Orifice)

$77.99

$

Usually ships in 3-6 days

0

42B

Cub Cadet HG-70743

Kit, Shock Valve (200 Bar, .031 Orifice)

$77.99

$

Usually ships in 3-6 days

0

44

Cub Cadet HG-70402

Charge Relief Kit, (1/4 Plastic Ball & 2000029 Spring)

$7.49

$

Usually ships in 3-6 days

0

49

Cub Cadet HG-2513043

Trunnion Seal / Retainer Kit

Note: (Ring, Ret. -Star Wash 1.0; Seal, Lip 12 x 25 x 5)

$11.99

$

Usually ships in 3-6 days

0

56

Cub Cadet HG-9005110-4400

Plug - 7/16-18 Steel (Diagnostic)

$

$

Not available

90

Cub Cadet HG-71172

Kit, Fan

Note: (Washer, O.D. Slotted .40 x 1.55 x .06; Fan, 6", 10 Blade; Fan Hub; Nut, Lock, Side 5/16-24UNF-2B)

$35.99

$

Usually ships in 3-6 days

0

100

Cub Cadet HG-70525

Overhaul Seal Kit

Note: (O-Ring, Housing; O-Ring; Seal, Lip 17 x 40 x 7; Ring, Retaining; Ring, Retaining; Seal, Lip 12 x 25 x 5)

$56.99

$

Usually ships in 3-6 days

0

110

Cub Cadet HG-70794

Kit, RTN

Note: (Arm, Control; Arm, RTN; Assembly, RTN Bi-Directional; Spring, Extension (STD); Screw, 5/16-24 x .75 (Patch); Washer; Nut, Lock, Side 5/16-24UNF-2B)

$67.99

$

Usually ships in 3-6 days

0

209

Cub Cadet HG-52016

Bracket, Shroud

$9.99

$

Usually ships in 3-6 days

0
