M48-KW (53AI8CT2050) - Cub Cadet 48" Tank Zero-Turn Mower, 23hp Kawasaki (2009 & Before) Kawasaki FH680V-DS29 Piston & Crankshaft Parts Diagram

48" Tank Zero-Turn Mower, 23hp Kawasaki

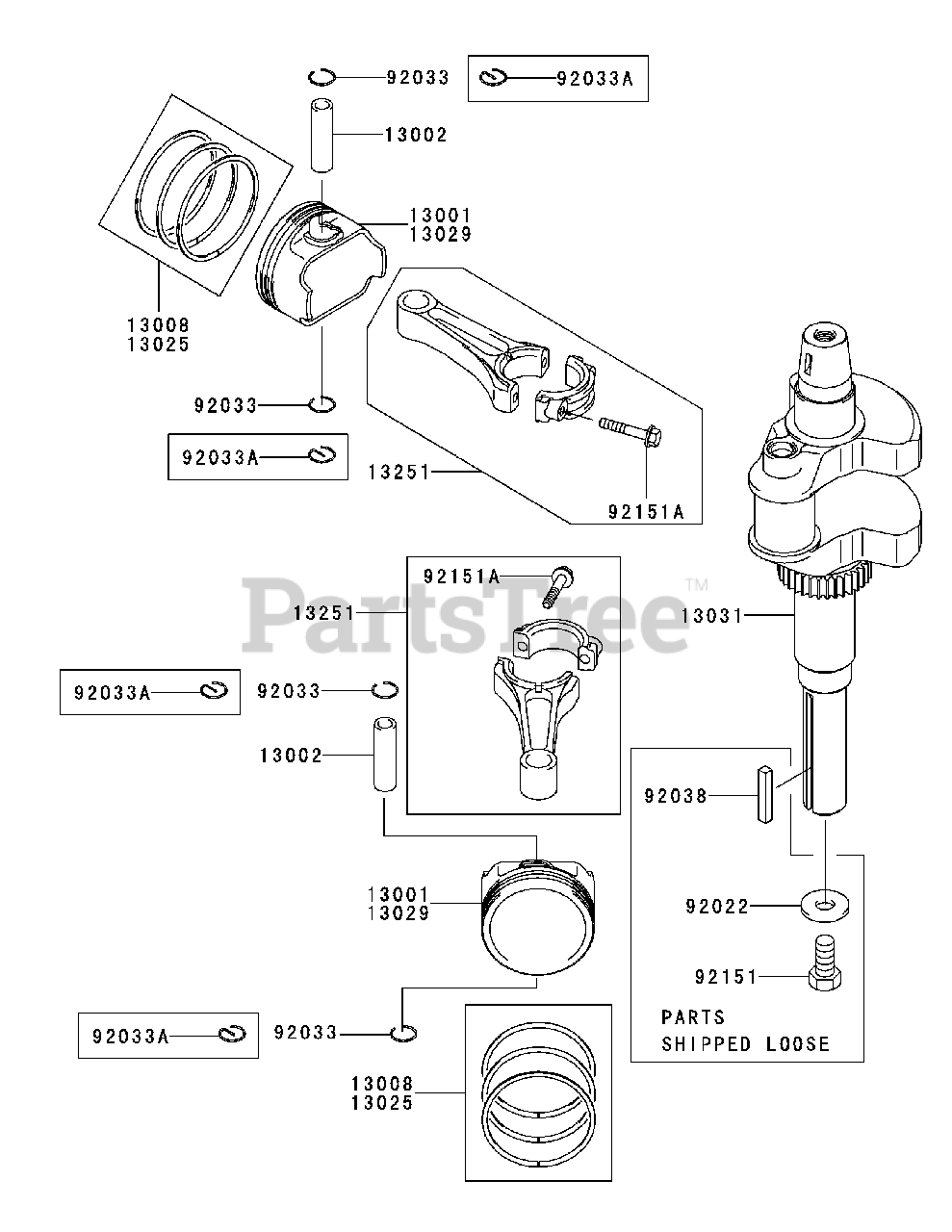

Kawasaki FH680V-DS29 Piston & Crankshaft Parts Diagram

  • Title

13001

Cub Cadet KM-13001-7007

Piston-Engine

$39.99

$

In Stock, Qty 5

0

13002

Cub Cadet KM-13002-7001

Pin-Piston

$4.99

$

In Stock, Qty 9

0

13008

Cub Cadet KM-13008-6058

Ring-Set-Piston

$81.99

$

In Stock, Qty 7

0

13025

Cub Cadet KM-13025-7002

Ring-Set-Piston L,0.50

Note: (AR)

$54.99

$

Usually ships in 2-5 days

0

13029

Cub Cadet KM-13029-7003

Piston-Engine L,0.50

Note: (AR)

$

$

Not available

13031

Cub Cadet KM-13031-7051

Crankshaft-Comp

$355.99

$

Usually ships in 2-5 days

0

13251

Cub Cadet KM-13251-7005

Rod-Assy-Connecting
(Superseded to KM-13251-0048)

$

$

Not available

92022

Cub Cadet KM-92022-1982

Washer, 12.5x32x3.2

$5.99

$

Usually ships in 2-5 days

0

92033

Cub Cadet KM-92033-7002

Ring-Snap
(Superseded to KM-92033-0780)

$0.99

$

In Stock, Qty 19

0

92033A

Cub Cadet KM-92033-7005

Ring-Snap

$0.99

$

In Stock, Qty 16

0

92038

Cub Cadet KM-92038-2101

Key

$4.99

$

In Stock, only 1 left!

0

92151

Cub Cadet KM-92151-7010

Bolt,7/16-20 UNF

$1.49

$

In Stock, only 4 left!

0

92151A

Cub Cadet KM-92151-7017

Bolt, 6x35
(Superseded to KM-92154-2842)

$1.49

$

In Stock, only 4 left!

0
