M48-KW (53AI8CTV750) - Cub Cadet 48" Tank Zero-Turn Mower, 23hp Kawasaki Fabricated Cutter Deck Parts Diagram

48" Tank Zero-Turn Mower, 23hp Kawasaki

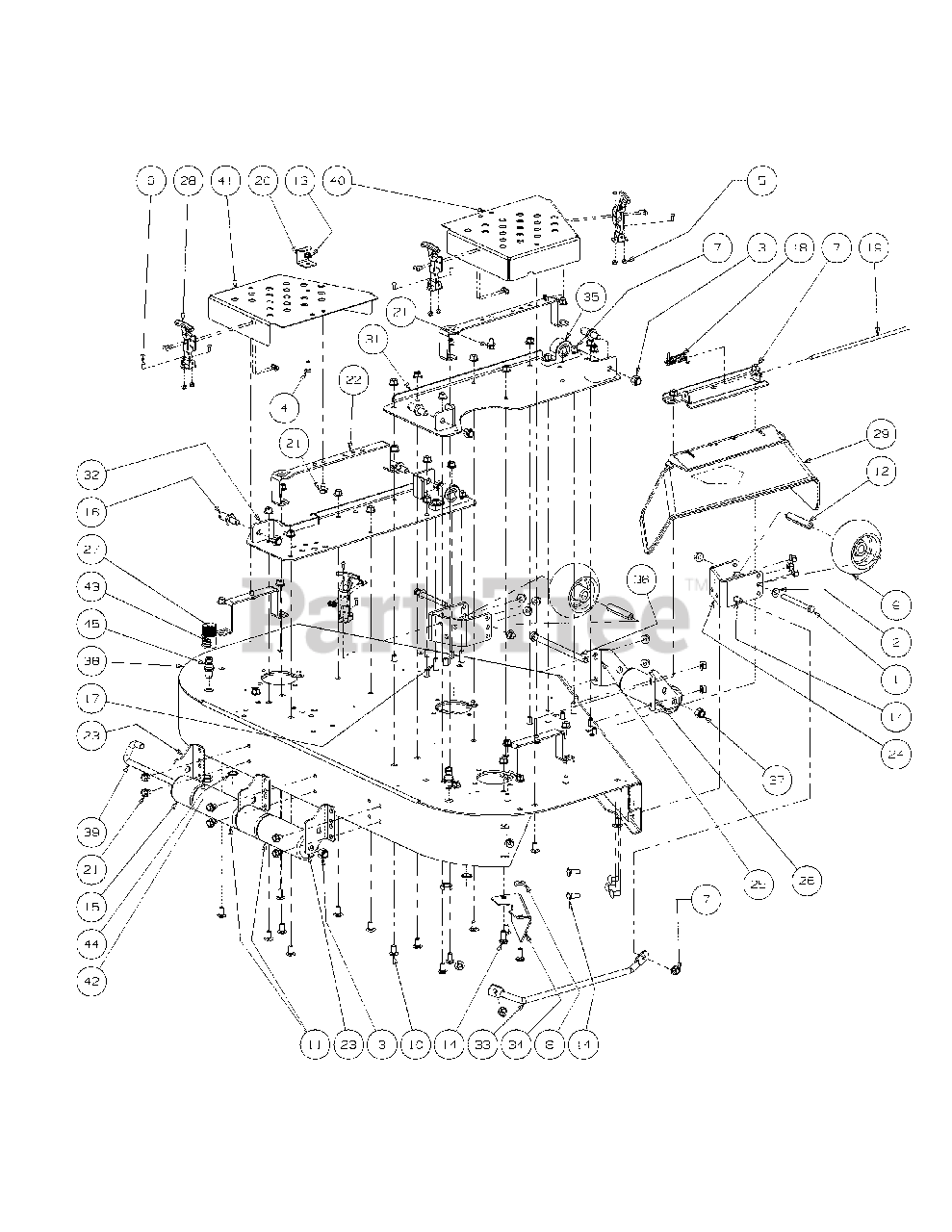

Fabricated Cutter Deck Parts Diagram

  • Title

1

Cub Cadet 00011925

Hex Cap Screw, 3/8-16, 3.75
(Superseded to 710-0411)

$7.99

$

In Stock, Qty 20+

0

2

Cub Cadet 00012158

Flat Washer, 3/8

$4.49

$

In Stock, Qty 10

0

3

Cub Cadet 00012428

Lock Nut, Nylon Insert, 1/2-13

$6.49

$

In Stock, Qty 8

0

4

Cub Cadet 00013406

Hex Cap Screw, 5/16-18 x 3/4
(Superseded to 710-3008)

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 00014608

Lock Nut, Nylon Insert, 10-32
(Superseded to 712-05003)

$2.99

$

In Stock, only 3 left!

0

6

Cub Cadet 00017778

Phillip Head Screw, 10-32

$4.49

$

In Stock, only 2 left!

0

7

Cub Cadet 00022560

Flange Lock Hex Nut, 3/8-16
(Superseded to 712-05007)

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 00083192

Idler Washer
(Superseded to 736-0258)

$4.49

$

Usually ships in 3-6 days

0

9

Cub Cadet 634-3159

Complete Wheel, 5.00 Dia

$31.99

$

In Stock, Qty 20+

0

10

Cub Cadet 710-3178

Carriage Bolt, 3/8-16 x .75 Lg

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 731-3005

Front Roller

$26.99

$

In Stock, Qty 20+

0

12

Cub Cadet 750-3193

Wheel Spacer

$17.99

$

In Stock, Qty 20+

0

13

Cub Cadet 712-3004A

Hex Flange Lock Nut, 5/16-18

$3.49

$

In Stock, Qty 20+

0

14

Cub Cadet 01000643

Carriage Bolt, 3/8-16 x 1

$5.49

$

In Stock, Qty 9

0

15

Cub Cadet 01001169

Roller

$22.99

$

In Stock, Qty 19

0

16

Cub Cadet 01001745

Pin, 5/8 Dia. x 1.2 Lg.
(Superseded to 711-05604)

$10.99

$

In Stock, Qty 20+

0

17

Cub Cadet 710-3034

Carriage Screw, 3/8-16 x 1.25

$3.99

$

In Stock, Qty 7

0

18

Cub Cadet 732-04797

Torsion Spring, 0.4 ID x 2.16 LG

$10.99

$

In Stock, Qty 11

0

19

Cub Cadet 747-3384

Chute Deflector Rod

$26.99

$

In Stock, Qty 6

0

20

Cub Cadet 01004109

Bracket Stop Tension Rod

$10.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 01004304

Hex Index Washer Screw, 3/8-16, .05
(Superseded to 710-0773)

$6.99

$

In Stock, Qty 5

0

22

Cub Cadet 01004684-0637

Fabricated Belt Support Cover

$39.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 01004707-0637

Fabricted Deck Roller Mount Bracket

$21.99

$

In Stock, Qty 20+

0

24

Cub Cadet 01005243-0637

Front Anti-Scalp Wheel Mount Bracket

$53.99

$

In Stock, only 2 left!

0

25

Cub Cadet 01005244

Left Hand Front Roller Mount Bracket

Variations

Cub Cadet 01005244-0637

Roller Bracket, LH - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 01005244-4021

Roller Bracket, LH - CUB YELLOW 2 (4021)

$

$

Not available

$

$

26

Cub Cadet 01005245-0637

Right Hand Front Roller Mount Bracket

$34.99

$

In Stock, Qty 5

0

27

Cub Cadet 01005438-0637

Outer Belt Cover Support Assembly

$

$

Not available

28

Cub Cadet 935-04038

Latch Drawing, T-Handle

$14.99

$

In Stock, Qty 20+

0

29

Cub Cadet 01006693P

Deflector Chute

$64.99

$

In Stock, Qty 20+

0

30

Cub Cadet 01006748-0637

Deflector Chute Bracket

$32.99

$

In Stock, Qty 5

0

31

Cub Cadet 01008635

Right Hand Deck Bracket Assembly

$

$

Not available

32

Cub Cadet 01008610-0637

Left Hand Deck Bracket Assembly

$

$

Not available

33

Cub Cadet 01008644

Fabricated Deck Finger Guard

$34.99

$

In Stock, Qty 5

0

34

Cub Cadet 01009296-0637

Fabricated Deck, Chute Bracket

$46.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 02000109

Pillow Block

$117.99

$

In Stock, Qty 7

0

36

Cub Cadet 01006961

Hex Cap Screw, 1/2-20 x 7.50
(Superseded to 710-05385)

$10.99

$

In Stock, Qty 20+

0

37

Cub Cadet 02002299

Lock Nut, Nylon Insert, 1/2-20
(Superseded to 712-04316)

$3.49

$

In Stock, Qty 8

0

38

Cub Cadet 02002733

48 Fabricated Deck Assembly

$

$

Not available

39

Cub Cadet 02002798

J-Hook w/ Threaded Roller

$74.99

$

In Stock, Qty 5

0

40

Cub Cadet 02002836

Right Hand Belt Cover

$67.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 02002837

Left Hand Belt Cover

$

$

Not available

42

Cub Cadet 912-0641

Hex Nut, M16-1.5
(Superseded to 712-0641)

$5.99

$

In Stock, Qty 20+

0

43

Cub Cadet 921-04041

Water Nozzle Adaptor

$21.99

$

In Stock, Qty 20+

0

44

Cub Cadet 936-0760

Lock Washer, 17 x 23.8 x 1.95

$3.99

$

In Stock, Qty 14

0

45

Cub Cadet 737-04003D

Deck Water Nozzle

$21.99

$

In Stock, Qty 18

0
