M48-KWS (53AB5D4M150) - Cub Cadet 48" Tank Zero-Turn Mower, 17hp Kawasaki Kawasaki Engine Assembly Parts Diagram

48" Tank Zero-Turn Mower, 17hp Kawasaki

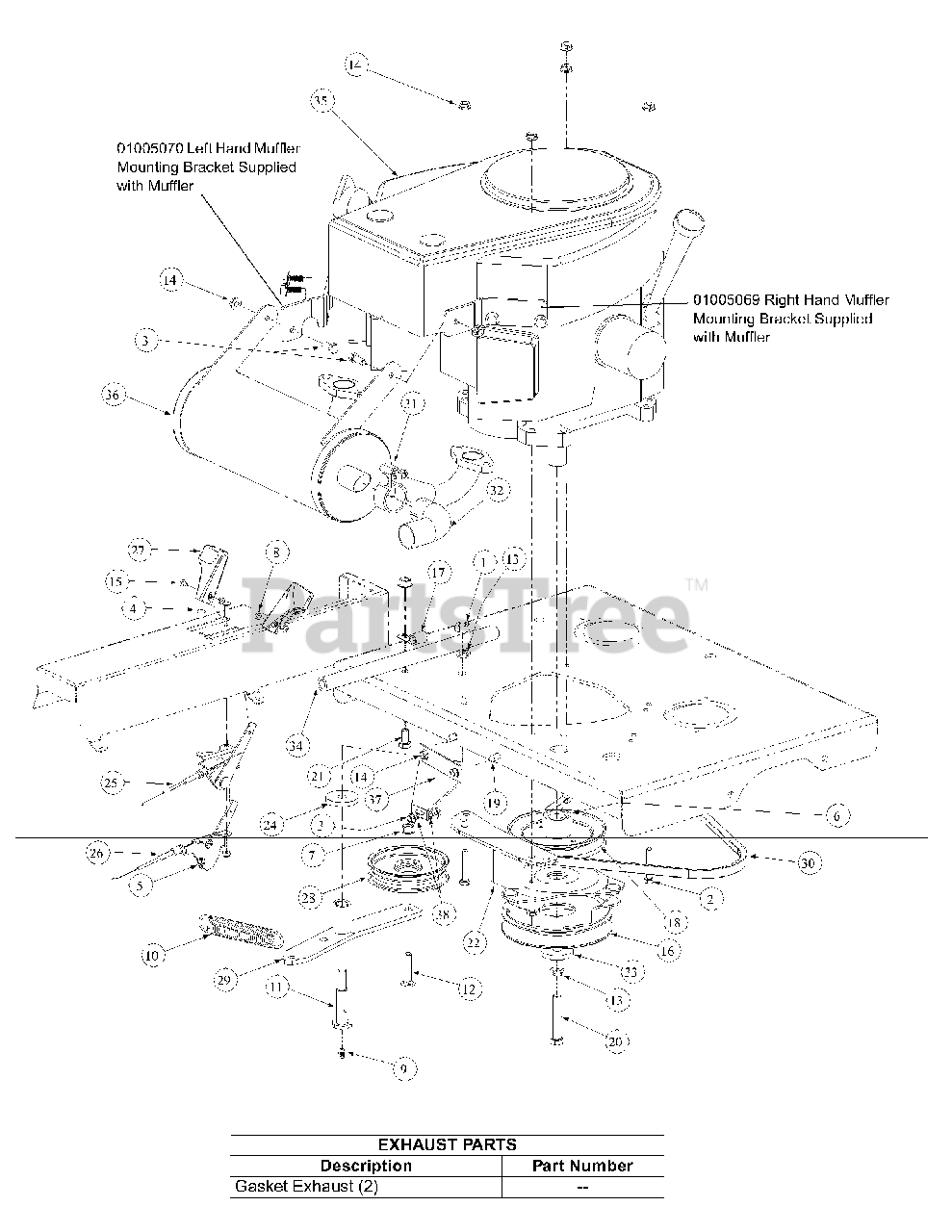

Kawasaki Engine Assembly Parts Diagram

  • Title

1

Cub Cadet 912-3019

Hex Nut, 7/16-14
(Superseded to 712-3019)

$6.49

$

In Stock, only 1 left!

0

2

Cub Cadet 00006129

HHCS, 5/16-18, 1-3/4

$6.49

$

Usually ships in 3-6 days

0

3

Cub Cadet 00013406

Hex Cap Screw, 5/16-18 x 3/4
(Superseded to 710-3008)

$3.99

$

In Stock, Qty 20+

0

4

Cub Cadet 00014602

Round Hd. Machine Screw, 10-32 x 3/4

$

$

Not available

5

Cub Cadet 00014608

Lock Nut, Nylon Insert, 10-32
(Superseded to 712-05003)

$2.99

$

In Stock, only 3 left!

0

6

Cub Cadet 00010022

Key,1/4 x 1-1/8

$6.49

$

Usually ships in 3-6 days

0

7

Cub Cadet 00022560

Flange Lock, Hex Nut, 3/8-16
(Superseded to 712-05007)

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 00060056

Nut Washer, W/Star, 8-32

$6.49

$

In Stock, only 1 left!

0

9

Cub Cadet 737-04345

Grease Fitting, 1/4-28 x 3/16

$4.49

$

In Stock, Qty 16

0

10

Cub Cadet 01000199

Extension Spring, 1.0 OD x 5.00

$16.99

$

In Stock, Qty 20+

0

11

Cub Cadet 01000302

Shoulder Screw, 7/16-14
(Superseded to 738-3102)

$19.99

$

In Stock, Qty 12

0

12

Cub Cadet 710-0560

Hex Carriage Screw, 3/8-16, 1.75

$6.49

$

In Stock, Qty 17

0

13

Cub Cadet 936-0171

Lock Washer, 7/16
(Superseded to 736-0171)

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 712-3004A

Hexflange Lock Nut, 5/16-18

$3.49

$

In Stock, Qty 20+

0

15

Cub Cadet 710-3217

Machine Screw, 8-32, .375

$6.49

$

In Stock, Qty 10

0

16

Cub Cadet 917-3389

Electric Clutch

$597.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 726-3008

Clip, Heat Shield Cable

$4.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 756-3060A

Transmission Drive Pulley

$90.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 00020508

Carriage Bolt, 5/16-18 x .75 Lg

$6.49

$

In Stock, only 3 left!

0

20

Cub Cadet 710-0510

Capscrew, 7/16-20 x3.00

$10.99

$

In Stock, only 1 left!

0

21

Cub Cadet 710-0216

Hex Cap Screw, 3/8-16, .750

$3.99

$

In Stock, Qty 17

0

22

Cub Cadet 01007358

Retainer Clutch Assembly, Ogura

$

$

Not available

24

Cub Cadet 01003269

Flat Washer, 7/16 ID x 1.75 OD x .25
(Superseded to 736-3082A)

$9.49

$

In Stock, Qty 17

0

25

Cub Cadet 01003271P

Choke, Control Cable, 43.0

$

$

Not available

26

Cub Cadet 01003272P

Throttle, Control Cable, 39.0

$40.99

$

In Stock, only 1 left!

0

27

Cub Cadet 731-04914

Control Throttle Knob

$12.99

$

In Stock, only 3 left!

0

28

Cub Cadet 02005077

Flat Pulley with Flanges

$33.99

$

In Stock, Qty 20+

0

29

Cub Cadet 01005006

Engine Idler Arm Assembly

$112.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 01005010

V Belt, A Section x 47.3
(Superseded to 01005010P)

$66.99

$

In Stock, Qty 6

0

31

Cub Cadet 01005084

Tube Clamp, 1.375

$

$

Not available

32

Cub Cadet 01005085

Muffler Accessory Exhaust Tube

$

$

Not available

33

Cub Cadet 736-04131

Flat Washer, 7/16 IDx 1.750 OD x .250T

$14.99

$

In Stock, only 4 left!

0

34

Cub Cadet 01006223

Oil Drain Hose
(Superseded to 751-3141-14)

$11.99

$

In Stock, Qty 20+

0

35

Cub Cadet 01006565

17HP Kawasaki Engine

Note: NLA

$

$

Not available

36

Cub Cadet 01006572

17HP Kawasaki Exhaust

$

$

Not available

37

Cub Cadet 01006798

Muffler Bracket

$

$

Not available

38

Cub Cadet 00012169

Flat Washer, 5/16

$4.49

$

In Stock, only 2 left!

0
