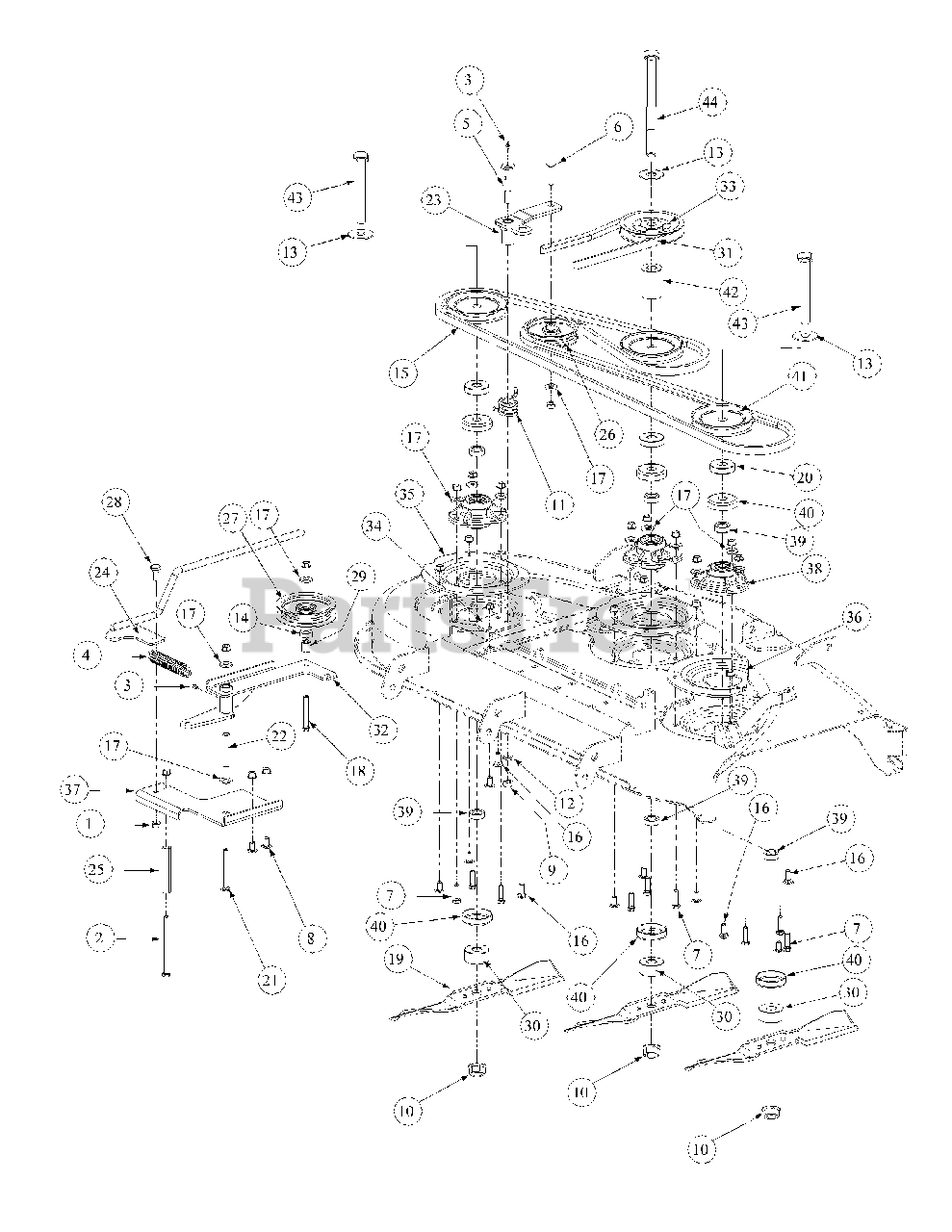

M48-KWS (53AB5D4M150) - Cub Cadet 48" Tank Zero-Turn Mower, 17hp Kawasaki Stamped Deck Spindle Assembly Parts Diagram

48" Tank Zero-Turn Mower, 17hp Kawasaki

Stamped Deck Spindle Assembly Parts Diagram

  • Title

1

Cub Cadet 00022560

Flange Lock Hex Nut, 3/8-16
(Superseded to 712-05007)

$3.99

$

In Stock, Qty 20+

0

2

Cub Cadet 00034167

Hex Capscrew, 3/8-16,5.00

$

$

Not available

3

Cub Cadet 737-04345

Grease Fitting, 1/4-28 x 3/16

$4.49

$

In Stock, Qty 16

0

4

Cub Cadet 01000199

Extension Spring, 1.0 OD x 5.00

$16.99

$

In Stock, Qty 20+

0

5

Cub Cadet 01000302

Shoulder Screw, 7/16-14
(Superseded to 738-3102)

$19.99

$

In Stock, Qty 12

0

6

Cub Cadet 710-0560

Hex Carriage Screw, 3/8-16, 1.75

$6.49

$

In Stock, Qty 17

0

7

Cub Cadet 710-3005

Hex Cap Screw, 3/8-16, 1.25

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 710-3178

Carriage Bolt, 3/8-16 x .75 Lg

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 912-3019

Hex Nut, 7/16-14
(Superseded to 712-3019)

$6.49

$

In Stock, only 1 left!

0

10

Cub Cadet 712-3078

Flange Hex Nut, 3/4-16

$9.49

$

In Stock, Qty 20+

0

11

Cub Cadet 932-3009

Torsion Idler Spring

$22.99

$

In Stock, Qty 20+

0

12

Cub Cadet 936-0171

Lock Washer, 7/16
(Superseded to 736-0171)

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 736-3014

Flat Washer, .781 ID, 2.00 OD. 105

$4.49

$

In Stock, Qty 19

0

14

Cub Cadet 750-3119

Spacer, .406 ID x 1.00 OD x .38

$10.99

$

In Stock, Qty 20+

0

15

Cub Cadet 01000399

Belt, A Section x 107.3

$62.99

$

In Stock, only 2 left!

0

16

Cub Cadet 01000643

Carriage Bolt, 3/8-16 x 1

$5.49

$

In Stock, Qty 9

0

17

Cub Cadet 736-3052

Flat Washer, .406 ID, 1.0 OD, .105

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 710-3022

Hex Capscrew, 3/8-16, 2.75

$4.49

$

In Stock, Qty 10

0

19

Cub Cadet 01002072

Mower Blade, 16.5 Lg

$

$

Not available

20

Cub Cadet 01002564

Spacer, .76ID x 2.0OD x .477

$19.99

$

In Stock, only 2 left!

0

21

Cub Cadet 710-0521

Carriage Bolt, 3/8-16 x 3.5 Lg

$4.99

$

In Stock, Qty 15

0

22

Cub Cadet 01003245

Spacer, .39 ID x .625 OD x 2.75

$17.99

$

In Stock, only 1 left!

0

23

Cub Cadet 01007390

Idler Arm Assembly, Bearing
(Superseded to 01007390P)

$

$

Not available

24

Cub Cadet 01005734

Idler Spring Rod Assembly

$

$

Not available

25

Cub Cadet 01004065

Spacer, .405 x .75 x 3.875

$

$

Not available

26

Cub Cadet 02005077

Flat Pulley with Flanges

$33.99

$

In Stock, Qty 20+

0

27

Cub Cadet 02004447

Idler Pulley, 4.06 OD with Deep Flange

$53.99

$

In Stock, Qty 20+

0

28

Cub Cadet 01004118

Shoulder Screw, .50 x .27 Lg; 3/8-16
(Superseded to 938-0380)

$7.49

$

In Stock, Qty 13

0

29

Cub Cadet 01004129

Spacer, .385 ID x .75 OD x .875

$26.99

$

In Stock, only 1 left!

0

30

Cub Cadet 01004415

Spacer, .760 ID x 2.000 OD x 0.9

$37.99

$

In Stock, only 3 left!

0

31

Cub Cadet 01005011

Belt, B Section x 83.2
(Superseded to 01005011P)

$96.99

$

In Stock, Qty 20+

0

32

Cub Cadet 01005733P

Idler Arm Assembly, Flat Top Bearing

$

$

Not available

33

Cub Cadet 01005201

Cast Pulley, 5.25 OD

$121.99

$

In Stock, only 1 left!

0

34

Cub Cadet 01007376

48" Idler Arm Mounting Plate

$

$

Not available

35

Cub Cadet 01007377

Disk Reinforcement

$

$

Not available

36

Cub Cadet 01007378

Disk Reinforcement, Right Hand

$

$

Not available

37

Cub Cadet 01007379

48" Idler Arm Mounting Bracket

$

$

Not available

38

Cub Cadet 903-0691P

Bearing Housing Assembly

$171.99

$

In Stock, only 2 left!

0

39

Cub Cadet 01006533

Spacer, .76ID x 1.25 OD x .44 Lg

$10.99

$

In Stock, Qty 8

0

40

Cub Cadet 01006534

Spindle Cup
(Superseded to 903-1387)

$23.99

$

In Stock, Qty 16

0

41

Cub Cadet 956-1209

Pulley, A Sect x 4.90

$56.99

$

In Stock, only 2 left!

0

42

Cub Cadet 01006584

Spacer, .765 ID x 1.75 OD x 2.42

$

$

Not available

43

Cub Cadet 01006590

Hex Capscrew, 3/4-16, 5.50

$18.99

$

Usually ships in 3-6 days

0

44

Cub Cadet 01006679

Hex Capscrew, 3/4-16, 8.50

$37.99

$

In Stock, only 1 left!

0
