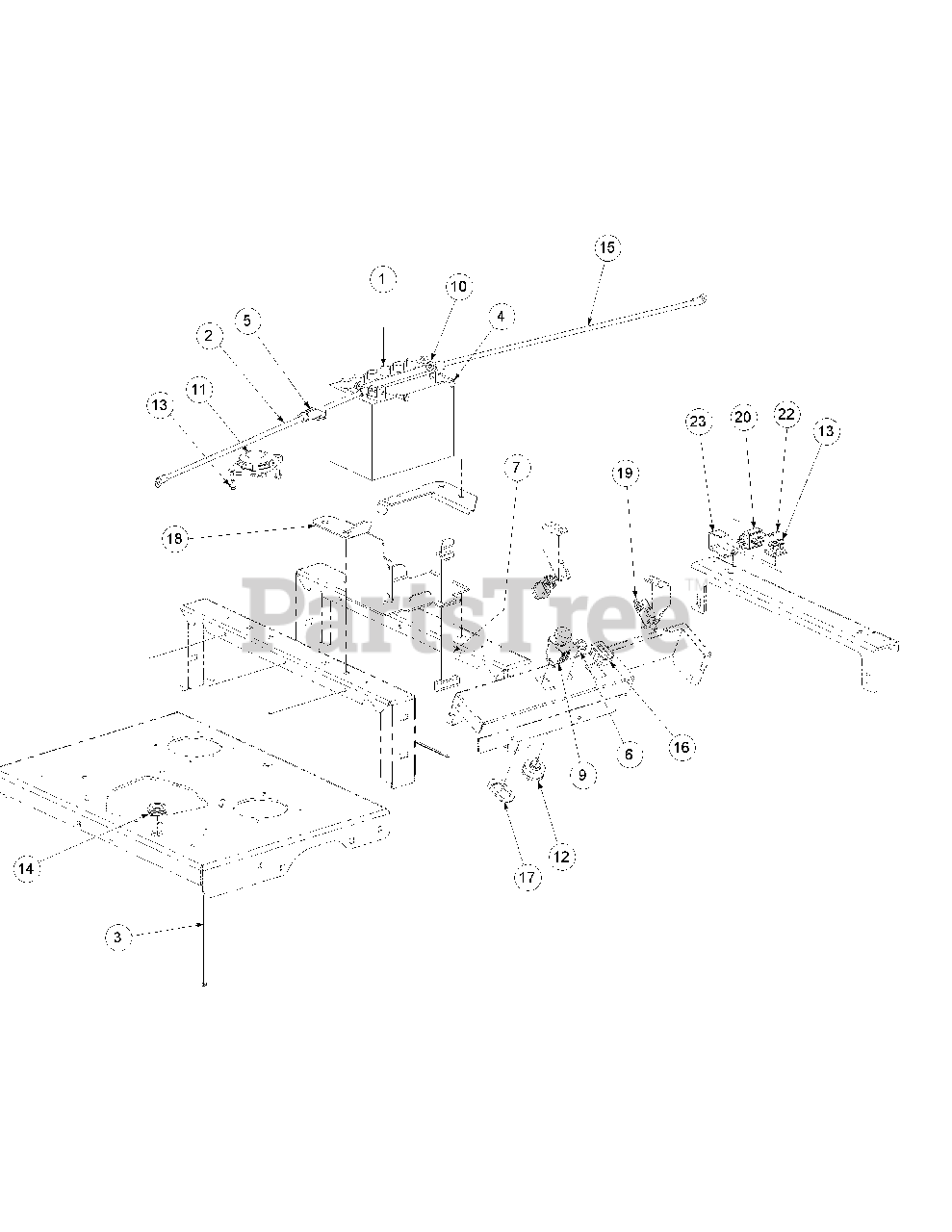

M50-KHS (53BB5BBP750) - Cub Cadet 50" Tank Zero-Turn Mower, 23hp Kohler Electrical Engine Assembly Parts Diagram

50" Tank Zero-Turn Mower, 23hp Kohler

Electrical Engine Assembly Parts Diagram

  • Title

1

Cub Cadet 925-1707D

Battery

$

$

Not available

2

Cub Cadet 00012289

Cable, Battery, Red, 36"

$

$

Not available

3

Cub Cadet 725-0157

Tie, Cable, 3/16 x .05 x 7.4"

$3.49

$

In Stock, only 4 left!

0

4

Cub Cadet 00013131

Screw, Hex, Cap, 1/4-20 x .75

$6.49

$

In Stock, only 1 left!

0

5

Cub Cadet 00013258

Boot, 1" OD Rubber Battery-PST, Red

$9.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 00032097

Nut, W/Cap, 5/8-32 Ignition
(Superseded to 00032097P)

$

$

Not available

7

Cub Cadet 723-3064

Strap, Battery

$27.99

$

In Stock, only 4 left!

0

9

Cub Cadet 01002111

Switch, Electric, PTO
(Superseded to 925-1716A)

$68.99

$

In Stock, Qty 20+

0

10

Cub Cadet 912-3027

Nut, 1/4-20, Hex Flange Lock Nut

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 01003277

Switch, Seat N/C

$36.99

$

In Stock, only 4 left!

0

12

Cub Cadet 01003581P

Switch, Ignition, 6 Pin

$65.99

$

In Stock, Qty 20+

0

13

Cub Cadet 710-0599

Screw, TT, 1/4-20 x .5, Hex Index Washer

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 01004040

Grommet, .75 ID
(Superseded to 735-04285)

$3.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 01004078

Cable, Battery Black, 28"

$35.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 925-04893

Meter, Hour
(Superseded to 925-04893A)

$154.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 01009905

Bracket, PTO Switch Retainer

$25.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 02000897-0637

Mount Bracket, Battery

$

$

Not available

19

Cub Cadet 02000024P

Switch, Safety
(Superseded to 925-3164A)

$37.99

$

In Stock, Qty 13

0

20

Cub Cadet 02000165P

Switch, Plunger
(Superseded to 725-04232)

$46.99

$

In Stock, Qty 11

0

22

Cub Cadet 02000349

Switch Bracket Mount

$

$

Not available

23

Cub Cadet 02000348

Switch Clamp

$

$

Not available

Cub Cadet 01001811

Hourmeter, Harness
(Superseded to 929-04195)

Note: (not shown)

$7.99

$

Usually ships in 3-6 days

0

Cub Cadet 02000167

Harness Assembly, Kohler

Note: (not shown)

$

$

Not available
