M54-KH (53BB5B8W750) - Cub Cadet 54" Tank Zero-Turn Mower, 25hp Kohler CV730-0025 Blower Housing & Baffles Parts Diagram

54" Tank Zero-Turn Mower, 25hp Kohler

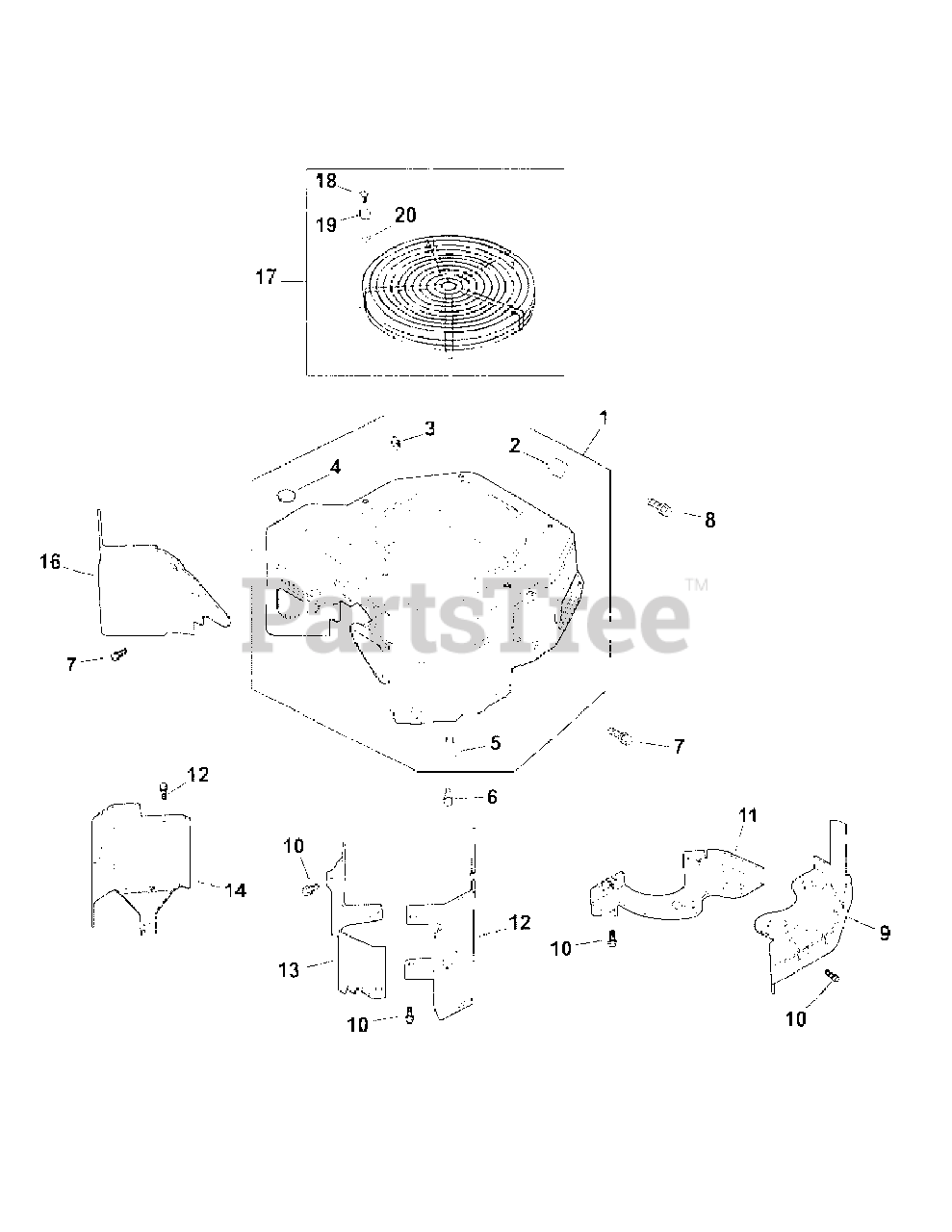

CV730-0025 Blower Housing & Baffles Parts Diagram

  • Title

1

Cub Cadet KH-24-027-199-S

Blower Housing
(Superseded to KH-24-027-494-S)

$165.99

$

Usually ships in 2-5 days

0

2

Cub Cadet KH-25-100-37-S

Plastic Nut

$2.49

$

In Stock, only 3 left!

0

3

Cub Cadet KH-25-086-43

Set Screw

$

$

Not available

4

Cub Cadet KH-25-139-16

Button Plug

$

$

Not available

5

Cub Cadet KH-24-100-02

Plastic Nut

$

$

Not available

6

Cub Cadet KH-M-545020-S

Hex Flange Screw
(Superseded to KH-25-086-473-S)

$2.49

$

In Stock, Qty 17

0

7

Cub Cadet KH-M-545016-S

Hex Flange Screw
(Superseded to KH-25-086-398-S)

$3.99

$

In Stock, Qty 13

0

8

Cub Cadet KH-M-551016-S

Hex Flange Screw

$2.49

$

In Stock, only 1 left!

0

9

Cub Cadet KH-24-146-19-S

Backing Plate
(Superseded to KH-24-146-59-S)

Note: #2 Side

$15.99

$

In Stock, only 2 left!

0

10

Cub Cadet KH-M-645016-S

Hex Flange Screw

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet KH-24-146-20-S

Backing Plate

Note: #1 Side

$

$

Not available

12

Cub Cadet KH-24-063-88-S

Cylinder Barrel Baffle

Note: #2 Side

$28.99

$

Usually ships in 2-5 days

0

13

Cub Cadet KH-24-063-60-S

Valley Baffle

$

$

Not available

14

Cub Cadet KH-24-063-85-S

Cylinder Barrel Baffle

Note: #1 Side

$17.99

$

Usually ships in 2-5 days

0

15

Cub Cadet KH-M-0545010

Hex Flange Screw

$

$

Not available

16

Cub Cadet KH-24-063-69-S

Valley Baffle
(Superseded to KH-24-063-94-S)

Note: #2 Side

$9.49

$

In Stock, only 1 left!

0

17

Cub Cadet KH-24-755-94-S

Guard Kit

$86.99

$

In Stock, only 2 left!

0

18

Cub Cadet KH-24-086-39-S

Pan Head Screw
(Superseded to KH-25-086-160-S)

$2.99

$

In Stock, only 4 left!

0

19

Cub Cadet KH-24-112-09-S

Spacer
(Superseded to KH-25-112-30-S)

$4.49

$

In Stock, only 4 left!

0

20

Cub Cadet KH-24-468-10

Flat Washer

$

$

Not available

Cub Cadet KH-25-086-91-S

Tapping Screw

Note: (not shown)

$3.49

$

Usually ships in 2-5 days

0

Cub Cadet KH-24-096-85-S

Blower Housing Cover
(Superseded to KH-24-096-161-S)

Note: (not shown)

$2.49

$

Usually ships in 2-5 days

0

Cub Cadet KH-24-332-01-S

Threaded Insert

Note: (not shown)

$

$

Not available

Cub Cadet KH-24-113-52-S

25 HP Decal

Note: (not shown)

$

$

Not available

Cub Cadet KH-25-113-39-S

Clear Lamination Decal
(Superseded to KH-25-113-79-S)

Note: (not shown)

$2.49

$

In Stock, only 4 left!

0
