M54-KW (53AI8CT4050) - Cub Cadet 54" Tank Zero-Turn Mower, 25hp Kawasaki Kawasaki FH721V-BS24 Carburetor Parts Diagram

54" Tank Zero-Turn Mower, 25hp Kawasaki

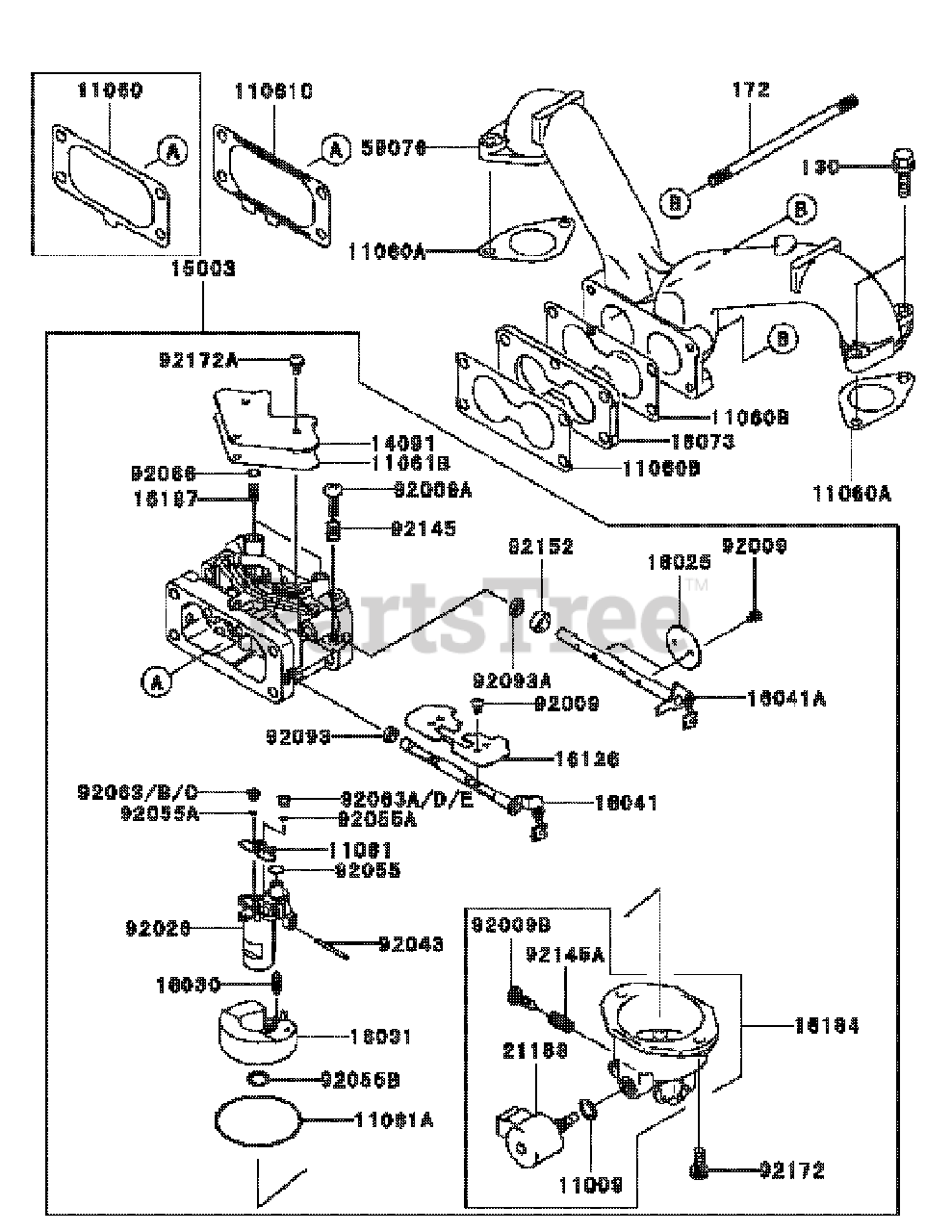

Kawasaki FH721V-BS24 Carburetor Parts Diagram

  • Title

11009

Cub Cadet KM-11009-2056

GASKET

$0.99

$

In Stock, Qty 20+

0

11060

Cub Cadet KM-11060-7009

GASKET, AIR FILTER

$2.49

$

In Stock, Qty 20+

0

11060A

Cub Cadet KM-11060-7011

GASKET, MANIFOLD

$2.49

$

In Stock, Qty 20+

0

11060B

Cub Cadet KM-11060-7024

GASKET, CARBURETOR

$11.99

$

In Stock, Qty 20+

0

11061

Cub Cadet KM-11061-7037

GASKET

$6.99

$

In Stock, Qty 20+

0

11061A

Cub Cadet KM-11061-7038

GASKET

$2.49

$

In Stock, Qty 20+

0

11061B

Cub Cadet KM-11061-7039

GASKET

$4.49

$

In Stock, Qty 20+

0

11061C

Cub Cadet KM-11061-7042

GASKET, AIR FILTER

$3.49

$

In Stock, Qty 7

0

130

Cub Cadet KM-130P0620

BOLT-FLANGED, 6X20

$1.49

$

In Stock, Qty 6

0

14091

Cub Cadet KM-14091-7031

COVER

$14.99

$

Usually ships in 2-5 days

0

15003

Cub Cadet KM-15004-7030

CARBURETOR-ASSY
(Superseded to KM-15004-1005)

$262.99

$

In Stock, only 1 left!

0

16025

Cub Cadet KM-16025-7003

VALVE-THROTTLE

$25.99

$

Usually ships in 2-5 days

0

16030

Cub Cadet KM-16030-7004

VALVE-FLOAT

$25.99

$

In Stock, Qty 8

0

16031

Cub Cadet KM-16031-7003

FLOAT

$44.99

$

In Stock, only 3 left!

0

16041

Cub Cadet KM-16041-7021

SHAFT-CARBURETOR
(Superseded to KM-16041-0028)

$51.99

$

In Stock, only 4 left!

0

16041A

Cub Cadet KM-16041-7025

SHAFT-CARBURETOR
(Superseded to KM-16041-0029)

$46.99

$

In Stock, only 1 left!

0

16073

Cub Cadet KM-16073-7005

INSULATOR

$4.49

$

In Stock, Qty 10

0

16126

Cub Cadet KM-16126-7015

VALVE

$15.99

$

Usually ships in 2-5 days

0

16184

Cub Cadet KM-16184-7017

CHAMBER-ASSY-FLOAT

$362.99

$

Usually ships in 2-5 days

0

16187

Cub Cadet KM-16187-7002

NEEDLE-JET

$13.99

$

In Stock, Qty 5

0

172

Cub Cadet KM-172G06105

BOLT-STUD, 6X105
(Superseded to KM-172BA06105)

$4.49

$

In Stock, only 2 left!

0

21188

Cub Cadet KM-21188-7003

SOLENOID

$95.99

$

In Stock, Qty 7

0

59076

Cub Cadet KM-59076-7011

MANIFOLD-INTAKE
(Superseded to KM-59076-0026)

$125.99

$

Usually ships in 2-5 days

0

92009

Cub Cadet KM-92009-7003

SCREW

$0.99

$

In Stock, Qty 20+

0

92009A

Cub Cadet KM-92009-7004

SCREW

$1.49

$

In Stock, only 4 left!

0

92009B

Cub Cadet KM-92009-7006

SCREW, DRAIN

$1.49

$

In Stock, only 3 left!

0

92026

Cub Cadet KM-92026-7011

SPACER

$8.49

$

In Stock, only 1 left!

0

92043

Cub Cadet KM-92043-7014

PIN

$6.99

$

Usually ships in 2-5 days

0

92055

Cub Cadet KM-92055-7012

RING-O
(Superseded to KM-92055-7024)

$0.99

$

In Stock, Qty 20+

0

92055A

Cub Cadet KM-92055-7013

RING-O

$0.99

$

In Stock, Qty 20+

0

92055B

Cub Cadet KM-92055-7014

RING-O
(Superseded to KM-92055-7016)

$2.49

$

In Stock, Qty 20+

0

92063

Cub Cadet KM-92063-7051

JET-MAIN, #104

$30.99

$

Usually ships in 2-5 days

0

92063A

Cub Cadet KM-92063-7054

JET-MAIN, #108

$30.99

$

In Stock, only 1 left!

0

92063B

Cub Cadet KM-92063-7075

JET-MAIN, #101, 3280FT

Note: (AR)

$21.99

$

Usually ships in 2-5 days

0

92063C

Cub Cadet KM-92063-7076

JET-MAIN, #098, 6560FT

Note: (AR)

$21.99

$

Usually ships in 2-5 days

0

92063D

Cub Cadet KM-92063-7077

JET-MAIN, #105, 3280FT

Note: (AR)

$21.99

$

In Stock, only 4 left!

0

92063E

Cub Cadet KM-92063-7078

JET-MAIN, #102, 6560FT

Note: (AR)

$21.99

$

In Stock, only 1 left!

0

92066

Cub Cadet KM-92066-7009

PLUG, EXPANSION

$7.99

$

In Stock, Qty 8

0

92093

Cub Cadet KM-92093-7001

SEAL, D=5.9

$2.49

$

In Stock, Qty 9

0

92093A

Cub Cadet KM-92093-7002

SEAL, D=6.9

$2.49

$

In Stock, Qty 18

0

92145

Cub Cadet KM-92145-7010

SPRING

$2.49

$

Usually ships in 2-5 days

0

92145A

Cub Cadet KM-92145-7011

SPRING

$2.49

$

Usually ships in 2-5 days

0

92152

Cub Cadet KM-92152-7005

COLLAR

$10.99

$

Usually ships in 2-5 days

0

92172

Cub Cadet KM-92172-7005

SCREW

$1.49

$

In Stock, Qty 5

0

92172A

Cub Cadet KM-92172-7006

SCREW

$1.49

$

In Stock, only 4 left!

0
