M54-KW (53AI8CT4050) - Cub Cadet 54" Tank Zero-Turn Mower, 25hp Kawasaki Kawasaki FH721V-BS24 Cylinder & Crankcase Parts Diagram

54" Tank Zero-Turn Mower, 25hp Kawasaki

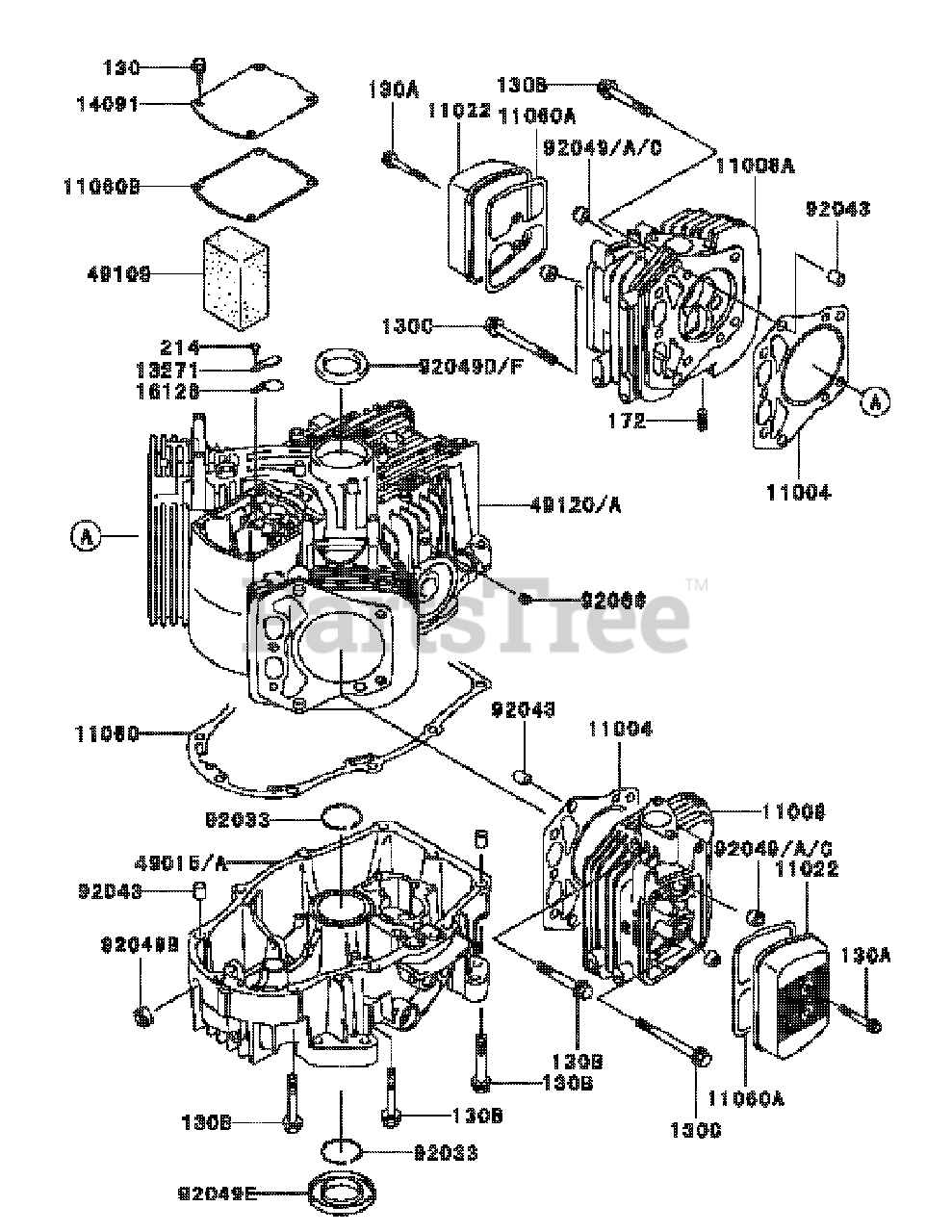

Kawasaki FH721V-BS24 Cylinder & Crankcase Parts Diagram

  • Title

11004

Cub Cadet KM-11004-7006

GASKET-HEAD

$10.99

$

In Stock, Qty 20+

0

11008

Cub Cadet KM-11008-7023

HEAD-COMP-CYLINDER, #2

$278.99

$

In Stock, only 1 left!

0

11008A

Cub Cadet KM-11008-7024

HEAD-COMP-CYLINDER, #1

$277.99

$

In Stock, only 1 left!

0

11022

Cub Cadet KM-11022-7002

CASE-ROCKER
(Superseded to KM-11022-0728)

$14.99

$

In Stock, only 2 left!

0

11060

Cub Cadet KM-11060-7012

GASKET, CRANKCASE COVER
(Superseded to KM-11061-7098)

$45.99

$

In Stock, Qty 20+

0

11060A

Cub Cadet KM-11060-7013

GASKET, ROCKER CASE

$5.99

$

In Stock, Qty 20+

0

11060B

Cub Cadet KM-11060-7014

GASKET, BREATHER

$6.49

$

Usually ships in 2-5 days

0

130

Cub Cadet KM-130BA0612

BOLT-FLANGED, 6X12

$1.99

$

In Stock, Qty 20+

0

130A

Cub Cadet KM-130G0640

BOLT-FLANGED, 6X40
(Superseded to KM-130BA0640)

$1.49

$

In Stock, only 3 left!

0

130B

Cub Cadet KM-130CA0850

BOLT-FLANGED, 8X50

$1.99

$

In Stock, Qty 20+

0

130C

Cub Cadet KM-130T0875

BOLT-FLANGED, 8X75
(Superseded to KM-130CA0875)

$2.49

$

In Stock, Qty 11

0

13271

Cub Cadet KM-13271-7006

PLATE

$1.49

$

In Stock, Qty 13

0

14091

Cub Cadet KM-14091-7004

COVER

$3.99

$

In Stock, only 1 left!

0

16126

Cub Cadet KM-16126-7001

VALVE

$2.49

$

In Stock, Qty 13

0

172

Cub Cadet KM-172G0818

BOLT-STUD, 8X18
(Superseded to KM-172BA0818)

$1.99

$

In Stock, Qty 20+

0

214

Cub Cadet KM-214B0408

SCREW-PAN, 4X8
(Superseded to KM-214AA0408)

$3.99

$

In Stock, only 2 left!

0

49015A

Cub Cadet KM-49015-7064

COVER-CRANKCASE

$199.99

$

Usually ships in 2-5 days

0

49109

Cub Cadet KM-99999-7072

ELEMENT-BREATHER

$14.99

$

In Stock, only 3 left!

0

49120A

Cub Cadet KM-49120-7038

CRANKCASE-COMP

$

$

Currently unavailable

92033

Cub Cadet KM-92033-7004

RING-SNAP

$0.99

$

In Stock, Qty 20+

0

92043

Cub Cadet KM-92043-7001

PIN

$0.99

$

In Stock, Qty 20+

0

92049

Cub Cadet KM-92049-7001

SEAL-OIL, RVC2 6X11X10.2

$8.49

$

In Stock, Qty 20+

0

92049B

Cub Cadet KM-92049-7005

SEAL-OIL, SO 8X14X5 HS
(Superseded to KM-92049-7019)

$2.49

$

In Stock, Qty 20+

0

92049E

Cub Cadet KM-92049-7011

SEAL-OIL, SD 35X62X8 L HS

$5.99

$

In Stock, Qty 20+

0

92049F

Cub Cadet KM-92049-7014

SEAL-OIL, SD 35X52X7 R HS

$3.99

$

In Stock, Qty 20+

0

92066

Cub Cadet KM-92066-7002

PLUG

$

$

Not available
