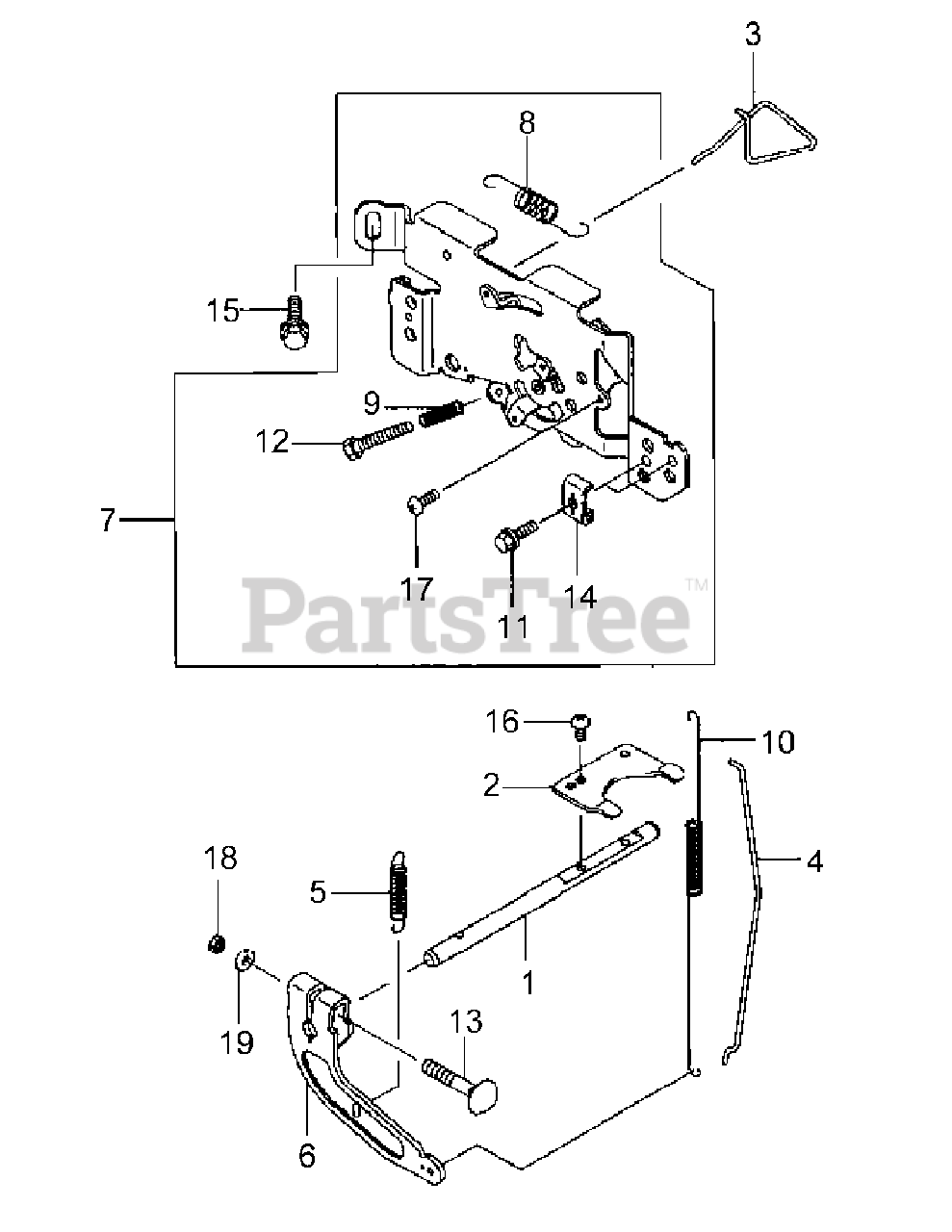

M54-KW (53DB5DBW750) - Cub Cadet 54" Tank Zero-Turn Mower, 23hp Kawasaki FH680V-BS29 Control Equipment Parts Diagram

54" Tank Zero-Turn Mower, 23hp Kawasaki

FH680V-BS29 Control Equipment Parts Diagram

  • Title

1

Cub Cadet KM-13107-7013

SHAFT
(Superseded to KM-13107-0751)

$12.99

$

In Stock, only 1 left!

0

2

Cub Cadet KM-13271-7032

PLATE

$3.99

$

In Stock, Qty 10

0

3

Cub Cadet KM-16169-7006

CHOKE LINK
(Superseded to KM-16169-0009)

$3.49

$

In Stock, Qty 6

0

4

Cub Cadet KM-16171-7004

LINK
(Superseded to KM-16171-0040)

$2.49

$

In Stock, only 2 left!

0

5

Cub Cadet KM-39129-7012

GOVERNOR SPRING

$5.49

$

In Stock, only 2 left!

0

6

Cub Cadet KM-49103-7004

GOVERNOR ARM

$7.99

$

In Stock, only 2 left!

0

7

Cub Cadet KM-49113-7017

CONTROL PANEL

$27.99

$

In Stock, only 1 left!

0

8

Cub Cadet KM-92145-7032

SPRING
(Superseded to KM-92145-2180)

$0.99

$

In Stock, Qty 20+

0

9

Cub Cadet KM-92145-7005

SPRING

$0.99

$

In Stock, Qty 6

0

10

Cub Cadet KM-92145-7034

SPRING

$3.49

$

In Stock, Qty 14

0

11

Cub Cadet KM-92150-2182

BOLT, 5x18

$0.99

$

In Stock, Qty 16

0

12

Cub Cadet KM-92151-7014

BOLT, 5x30

$1.49

$

In Stock, Qty 7

0

13

Cub Cadet KM-92153-7005

BOLT, 6x35
(Superseded to KM-92154-2697)

$0.99

$

In Stock, only 3 left!

0

14

Cub Cadet KM-92170-7001

CLAMP

$2.99

$

In Stock, Qty 15

0

15

Cub Cadet KM-130BA0612

FLANGED BOLT

$1.99

$

In Stock, Qty 20+

0

16

Cub Cadet KM-214AA0408

PAN SCREW

$3.99

$

In Stock, only 2 left!

0

17

Cub Cadet KM-220B0412

PAN SCREW

$

$

Not available

18

Cub Cadet KM-311AA0600

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

19

Cub Cadet KM-411B0600

PLAIN WASHER

$4.49

$

In Stock, only 1 left!

0
