M60-KH (53AH8CT6050) - Cub Cadet 60" Tank Zero-Turn Mower, 30hp Kohler Kohler CV750-0028 Fuel System Parts Diagram

60" Tank Zero-Turn Mower, 30hp Kohler

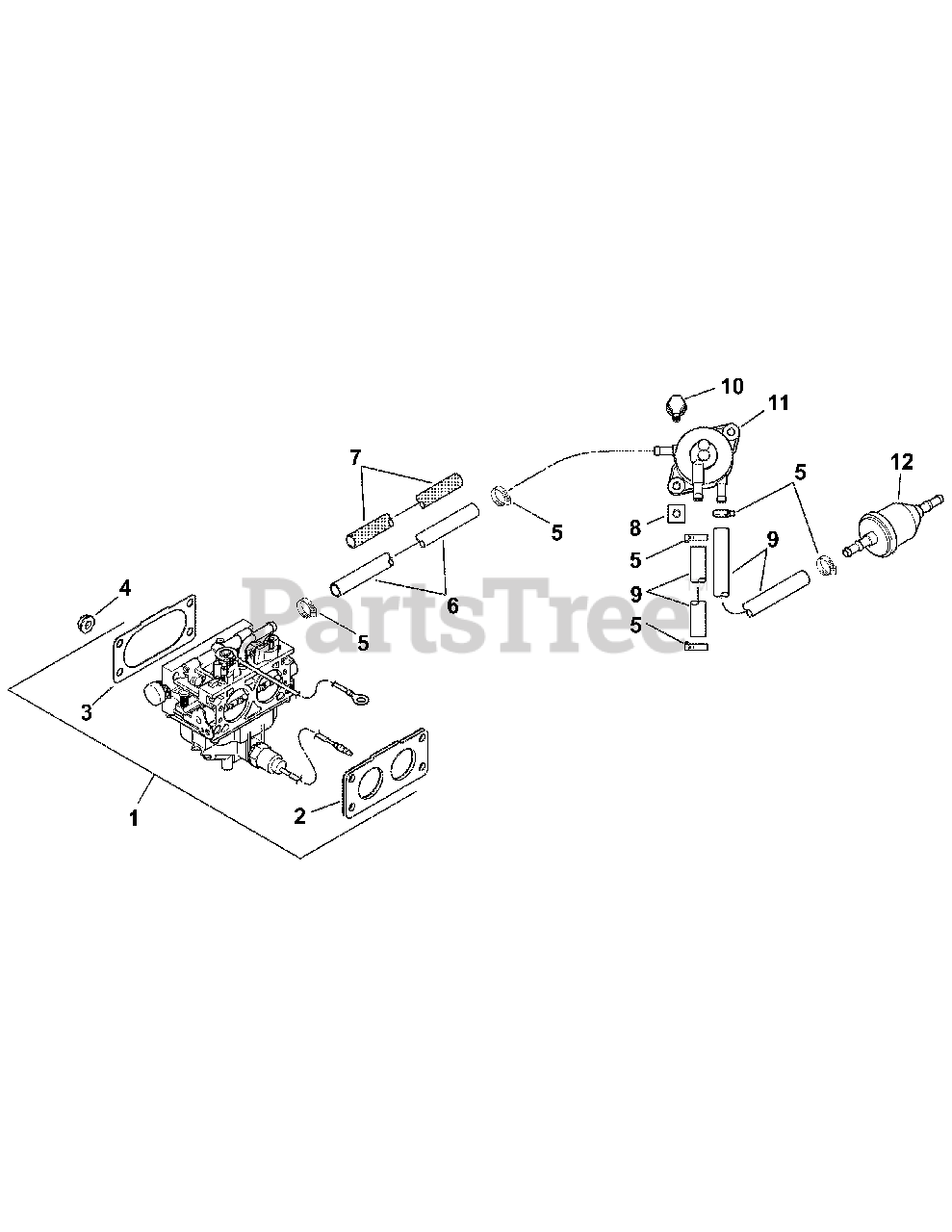

Kohler CV750-0028 Fuel System Parts Diagram

  • Title

1

Cub Cadet KH-24-853-103-S

KIT, CARBURETOR W/GASKETS
(Superseded to KH-24-853-111-S)

Note: (INCLUDES 2,3)

$403.99

$

Usually ships in 2-5 days

0

2

Cub Cadet KH-24-041-60-S

GASKET, CARBURETOR
(Superseded to KH-24-041-81-S)

$7.99

$

Usually ships in 2-5 days

0

3

Cub Cadet KH-24-041-58-S

GASKET, AIR CLEANER BASE

$2.99

$

In Stock, only 1 left!

0

4

Cub Cadet KH-M-641060-S

NUT, FLG M6X1.0

$4.49

$

In Stock, Qty 14

0

5

Cub Cadet KH-25-237-14-S

CLAMP, HOSE
(Superseded to KH-25-237-31-S)

$4.99

$

In Stock, Qty 6

0

6

Cub Cadet KH-24-353-12

LINE, FLEX 11" PUMP-PULSE

Note: (AIR ONLY)

$

$

Not available

7

Cub Cadet KH-24-431-02-S

SLEEVE, INSULATING 14"

$5.99

$

Usually ships in 2-5 days

0

8

Cub Cadet KH-24-100-01

NUT, PLASTIC
(Superseded to KH-25-100-37-S)

$2.49

$

In Stock, only 3 left!

0

9

Cub Cadet KH-25-111-34-S

LINE, FUEL
(Superseded to KH-25-111-81-S)

Note: (24"-CUT TO LENGTH)

$17.99

$

In Stock, Qty 5

0

10

Cub Cadet KH-24-086-12

SCREW, TAP M6X1.7X18

$

$

Not available

11

Cub Cadet KH-24-393-16

PUMP, FUEL

$

$

Not available

12

Cub Cadet KH-24-050-10-S

FILTER, FUEL
(Superseded to 2405013S1C)

$12.99

$

In Stock, Qty 20+

0

Cub Cadet KH-24-757-48-S

KIT, CHOKE REPAIR

Note: (not shown)

$243.99

$

In Stock, only 1 left!

0

Cub Cadet KH-24-757-49-S

KIT, FLOAT REPAIR

Note: (not shown)

$135.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-24-757-50-S

KIT, SOLENOID VALVE REPAIR

Note: (not shown)

$217.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-24-757-51-S

KIT, OVERHAUL REPAIR

Note: (not shown)

$202.99

$

Usually ships in 2-5 days

0
