M60-KH (53AH8CT6050) - Cub Cadet 60" Tank Zero-Turn Mower, 30hp Kohler Kohler CV750-0028 Ignition & Electrical Parts Diagram

60" Tank Zero-Turn Mower, 30hp Kohler

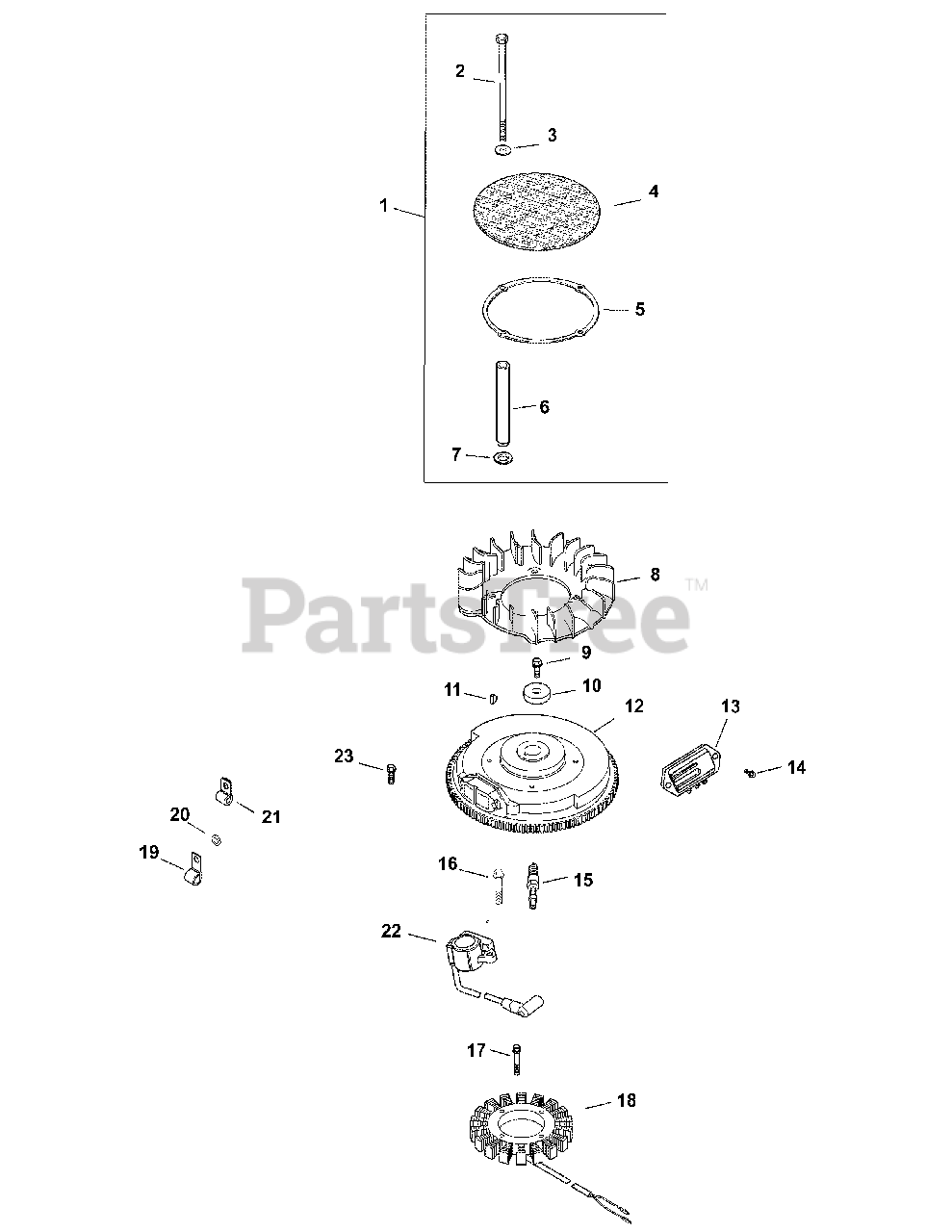

Kohler CV750-0028 Ignition & Electrical Parts Diagram

  • Title

1

Cub Cadet KH-24-755-79

KIT, CHOPPER SCREEN

Note: (INCLUDES 2-7)

$

$

Not available

2

Cub Cadet KH-M-603100

SCREW, CAP M6X1.0X99.5

$

$

Not available

3

Cub Cadet KH-X-25-53

WASHER, FLAT 1/4"

$

$

Not available

4

Cub Cadet KH-24-162-41-S

SCREEN, GRASS

$24.99

$

In Stock, only 3 left!

0

5

Cub Cadet KH-24-141-06

RING, SUPPORT
(Superseded to KH-25-141-08-S)

$5.49

$

In Stock, Qty 9

0

6

Cub Cadet KH-24-112-14

SPACER

$

$

Not available

7

Cub Cadet KH-24-468-11

WASHER, SPRING 10 MM

$

$

Not available

8

Cub Cadet KH-24-157-12-S

FAN

$22.99

$

In Stock, only 2 left!

0

9

Cub Cadet KH-12-086-14

SCREW, FLG M10X1.5X45
(Superseded to KH-25-086-361-S)

$3.49

$

In Stock, only 1 left!

0

10

Cub Cadet KH-12-468-03

WASHER, FLAT 13/32"

$

$

Not available

11

Cub Cadet KH-X-42-15

KEY, 3/16" X 5/8"

$

$

Not available

12

Cub Cadet KH-24-025-58-S

FLYWHEEL

$

$

Not available

13

Cub Cadet KH-41-403-09

REGULATOR/RECTIFIER
(Superseded to KH-25-403-37-S)

$105.99

$

In Stock, only 2 left!

0

14

Cub Cadet KH-24-086-157-S

SCREW, PHL HD #11-16X7/8"

$

$

Currently unavailable

15

Cub Cadet 759-3336

PLUG, SPARK
(Superseded to RC12YC)

$3.49

$

In Stock, Qty 20+

0

16

Cub Cadet KH-M-548025-S

SCREW, THD FRM M5X0.8X25
(Superseded to KH-25-086-402-S)

$2.49

$

In Stock, only 2 left!

0

17

Cub Cadet KH-25-086-43

SCREW, SKT SET #10-24X1/4"

$

$

Not available

18

Cub Cadet KH-237878

KIT, 15 AMP STATOR

$149.99

$

In Stock, Qty 10

0

19

Cub Cadet KH-12-154-01

CLAMP, INSULATED

$

$

Not available

20

Cub Cadet KH-X-25-63

WASHER, FLAT 1/4"

$

$

Not available

21

Cub Cadet KH-235173

CLIP, CABLE

$

$

Not available

22

Cub Cadet KH-24-584-53-S

MODULE SPARK ADV (DSAI) ASSY

$

$

Not available

23

Cub Cadet KH-M-545020-S

SCREW, FLG THD FRM M5X0.8X20
(Superseded to KH-25-086-473-S)

$2.49

$

In Stock, Qty 17

0

Cub Cadet KH-24-126-137-S

BRACKET, GROUND STRAP
(Superseded to KH-24-518-12-S)

Note: (not shown)

$4.99

$

In Stock, only 1 left!

0

Cub Cadet KH-24-176-98-S

HARNESS, WIRING

Note: (not shown)

$61.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-25-454-07-S

TIE

Note: (not shown)

$2.49

$

Usually ships in 2-5 days

0

Cub Cadet KH-25-452-01-S

TERMINAL

Note: (not shown)

$5.49

$

Usually ships in 2-5 days

0

Cub Cadet KH-24-176-130-S

HARNESS, DSAI WIRING

Note: (not shown)

$33.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-24-518-09

LEAD, OIL SENTRY

Note: (not shown)

$

$

Not available

Cub Cadet KH-25-518-34-S

LEAD

Note: (not shown)

$6.99

$

Usually ships in 2-5 days

0
