M60-KW (53AB5DCX150) - Cub Cadet 60" Tank Zero-Turn Mower, 25hp Kawasaki FH721V-AS15 Crankcase & Cylinder Heads Parts Diagram

60" Tank Zero-Turn Mower, 25hp Kawasaki

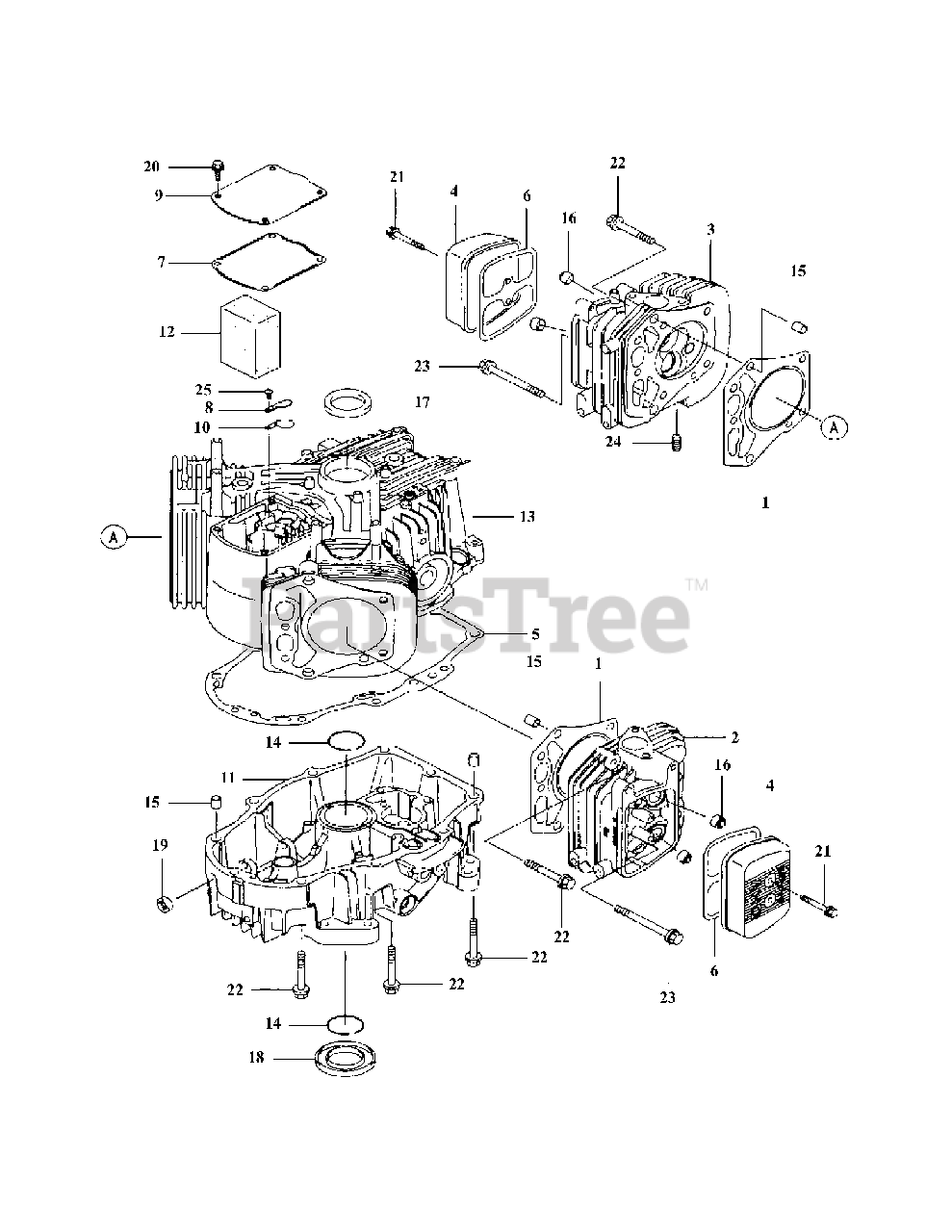

FH721V-AS15 Crankcase & Cylinder Heads Parts Diagram

  • Title

1

Cub Cadet KM-11004-7006

Gasket, Head

$10.99

$

In Stock, Qty 19

0

2

Cub Cadet KM-11008-7004

Head-compl,cylinder#2

Note: NLA

$

$

Not available

3

Cub Cadet KM-11008-7024

Head-compl,cylinder#1

$277.99

$

In Stock, only 1 left!

0

4

Cub Cadet KM-11022-7029

Case-Rocker
(Superseded to KM-11022-0728)

$14.99

$

In Stock, only 2 left!

0

5

Cub Cadet KM-11061-7098

Gasket, Crankcase Cover

$48.99

$

In Stock, Qty 20+

0

6

Cub Cadet KM-11060-7013

Gasket, Rocker Case

$5.99

$

In Stock, Qty 20+

0

7

Cub Cadet KM-11060-7014

Gasket, Breather

$6.49

$

Usually ships in 2-5 days

0

8

Cub Cadet KM-13271-7006

Plate

$1.49

$

In Stock, Qty 13

0

9

Cub Cadet KM-14091-7004

Cover

$3.99

$

In Stock, only 1 left!

0

10

Cub Cadet KM-16126-7001

Valve

$2.49

$

In Stock, Qty 13

0

11

Cub Cadet KM-49015-6255

Cover-Crankcase
(Superseded to KM-99999-7059)

$218.99

$

Usually ships in 2-5 days

0

12

Cub Cadet KM-99999-7072

Element-Breather

$14.99

$

In Stock, only 3 left!

0

13

Cub Cadet KM-49120-6131

Crankcase

Note: NLA

$

$

Not available

14

Cub Cadet KM-92033-7004

Ring-Snap

$0.99

$

In Stock, Qty 20+

0

15

Cub Cadet KM-92043-7001

Pin

$0.99

$

In Stock, Qty 20+

0

16

Cub Cadet KM-92049-7001

Seal-Oil

$8.49

$

In Stock, Qty 20+

0

17

Cub Cadet KM-92049-7010

Seal-Oil

$3.49

$

In Stock, Qty 14

0

18

Cub Cadet KM-92049-7011

Seal-Oil

$5.99

$

In Stock, Qty 20+

0

19

Cub Cadet KM-92049-7019

Seal-Oil

$2.49

$

In Stock, Qty 18

0

20

Cub Cadet KM-130BA0612

Bolt-Flange

$1.99

$

In Stock, Qty 20+

0

21

Cub Cadet KM-130BA0640

Bolt-Flange

$1.49

$

In Stock, only 3 left!

0

22

Cub Cadet KM-130CA0850

Bolt-Flange

$1.99

$

In Stock, Qty 20+

0

23

Cub Cadet KM-130CA0875

Bolt-Flange

$2.49

$

In Stock, Qty 11

0

24

Cub Cadet KM-172BA0818

Bolt-Stud

$1.99

$

In Stock, Qty 20+

0

25

Cub Cadet KM-214AA0408

Screw-Pan

$3.99

$

In Stock, only 1 left!

0

Cub Cadet KM-FH721V-BS24S

Replacement Engine

Note: (not shown)

$

$

Not available
