M60-KW (53AI8CTX750) - Cub Cadet 60" Tank Zero-Turn Mower, 25hp Kawasaki FH601V-BS27 Carburetor Parts Diagram

60" Tank Zero-Turn Mower, 25hp Kawasaki

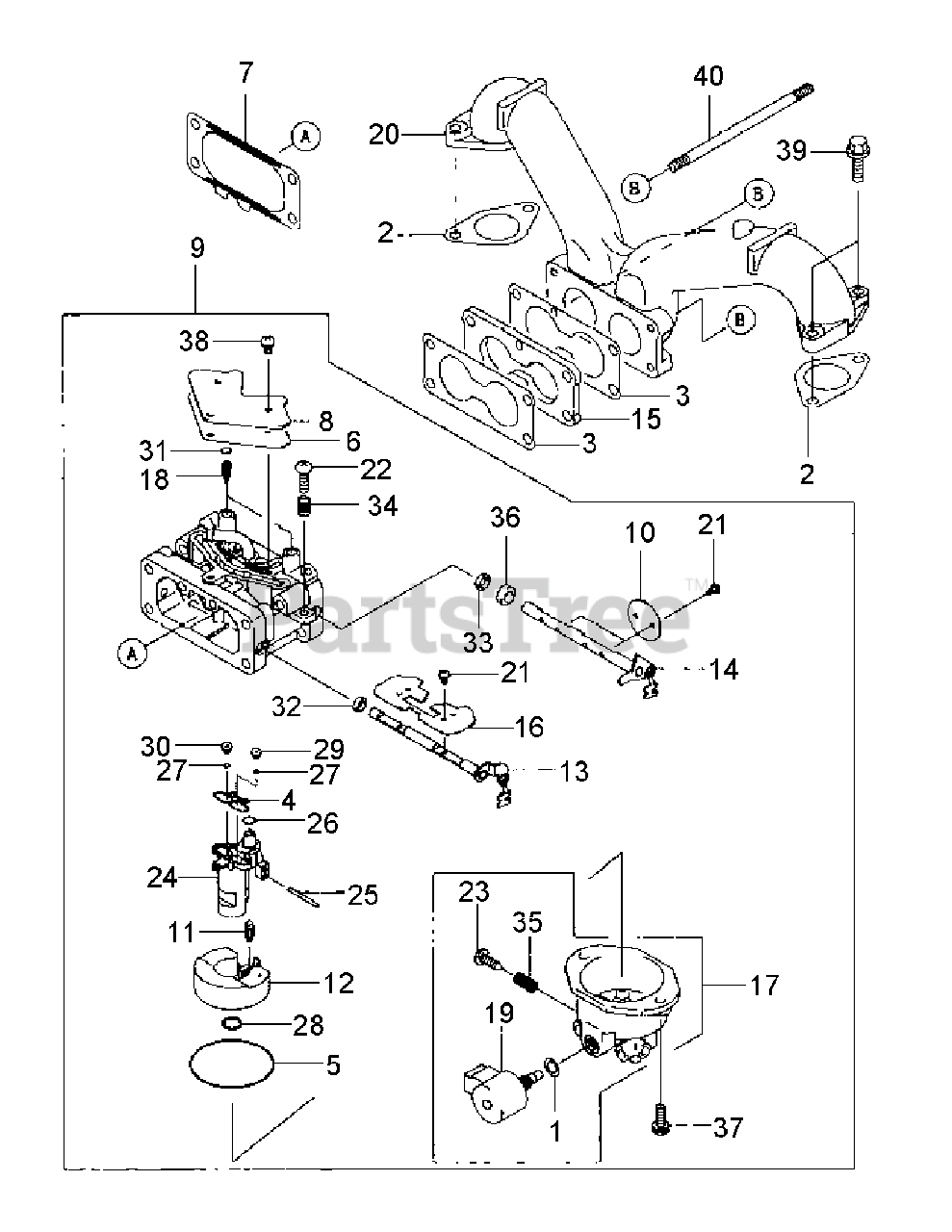

FH601V-BS27 Carburetor Parts Diagram

  • Title

1

Cub Cadet KM-11009-2056

GASKET

$0.99

$

In Stock, Qty 20+

0

2

Cub Cadet KM-11060-7011

MANIFOLD GASKET

$2.49

$

In Stock, Qty 20+

0

3

Cub Cadet KM-11060-7024

CARBURETOR GASKET

$11.99

$

In Stock, Qty 20+

0

4

Cub Cadet KM-11060-7037

GASKET

Note: NLA

$

$

Currently unavailable

5

Cub Cadet KM-11061-7038

GASKET

$2.49

$

In Stock, Qty 20+

0

6

Cub Cadet KM-11061-7039

GASKET

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet KM-11061-7043

GASKET

$3.49

$

In Stock, Qty 10

0

8

Cub Cadet KM-14091-7031

COVER

$14.99

$

Usually ships in 2-5 days

0

9

Cub Cadet KM-15004-7027

CARBURETOR ASSY.
(Superseded to KM-15004-1006)

$262.99

$

In Stock, only 2 left!

0

10

Cub Cadet KM-16025-7003

THROTTLE VALVE

$25.99

$

Usually ships in 2-5 days

0

11

Cub Cadet KM-16030-7004

FLOAT VALVE

$25.99

$

In Stock, Qty 8

0

12

Cub Cadet KM-16031-7003

FLOAT

$44.99

$

In Stock, only 3 left!

0

13

Cub Cadet KM-16041-7021

CARBURETOR SHAFT
(Superseded to KM-16041-0028)

$51.99

$

In Stock, only 4 left!

0

14

Cub Cadet KM-16041-7022

CARBURETOR SHAFT
(Superseded to KM-16041-0032)

$51.99

$

Usually ships in 2-5 days

0

15

Cub Cadet KM-16073-7005

INSULATOR

$4.49

$

In Stock, Qty 10

0

16

Cub Cadet KM-16126-7015

CHOKE VALVE

$15.99

$

Usually ships in 2-5 days

0

17

Cub Cadet KM-16184-7017

FLOAT CHAMBER ASSY.

$362.99

$

Usually ships in 2-5 days

0

18

Cub Cadet KM-16187-7002

NEEDLE JET

$13.99

$

In Stock, Qty 5

0

19

Cub Cadet KM-21188-7003

SOLENOID

$95.99

$

In Stock, Qty 7

0

20

Cub Cadet KM-59076-7011

INTAKE MANIFOLD
(Superseded to KM-59076-0026)

$125.99

$

Usually ships in 2-5 days

0

21

Cub Cadet KM-92009-7003

SCREW

$0.99

$

In Stock, Qty 20+

0

22

Cub Cadet KM-92009-7004

SCREW

$1.49

$

In Stock, only 4 left!

0

23

Cub Cadet KM-92009-7006

DRAIN SCREW

$1.49

$

In Stock, only 3 left!

0

24

Cub Cadet KM-92026-7011

SPACER

$8.49

$

In Stock, only 1 left!

0

25

Cub Cadet KM-92043-7014

FLOAT PIN

$6.99

$

Usually ships in 2-5 days

0

26

Cub Cadet KM-92055-7024

O-RING

$0.99

$

In Stock, Qty 20+

0

27

Cub Cadet KM-92055-7013

O-RING

$0.99

$

In Stock, Qty 20+

0

28

Cub Cadet KM-92055-7016

O-RING

$2.49

$

In Stock, Qty 20+

0

29

Cub Cadet KM-92063-7051

MAIN JET #104

$30.99

$

Usually ships in 2-5 days

0

30

Cub Cadet KM-92063-7054

MAIN JET #108

$30.99

$

In Stock, only 1 left!

0

31

Cub Cadet KM-92066-7009

EXPANSION PLUG

$7.99

$

In Stock, Qty 8

0

32

Cub Cadet KM-92093-7001

SEAL

$2.49

$

In Stock, Qty 9

0

33

Cub Cadet KM-92093-7002

SEAL

$2.49

$

In Stock, Qty 18

0

34

Cub Cadet KM-92145-7010

SPRING

$2.49

$

Usually ships in 2-5 days

0

35

Cub Cadet KM-92145-7011

SPRING

$2.49

$

Usually ships in 2-5 days

0

36

Cub Cadet KM-92152-7005

COLLAR

$10.99

$

Usually ships in 2-5 days

0

37

Cub Cadet KM-92172-7005

SCREW

$1.49

$

In Stock, Qty 5

0

38

Cub Cadet KM-92172-7006

SCREW

$1.49

$

In Stock, only 4 left!

0

39

Cub Cadet KM-130CA0620

FLANGED BOLT

$1.49

$

In Stock, Qty 6

0

40

Cub Cadet KM-172BA06105

BOLT STUD

$4.49

$

In Stock, only 2 left!

0
