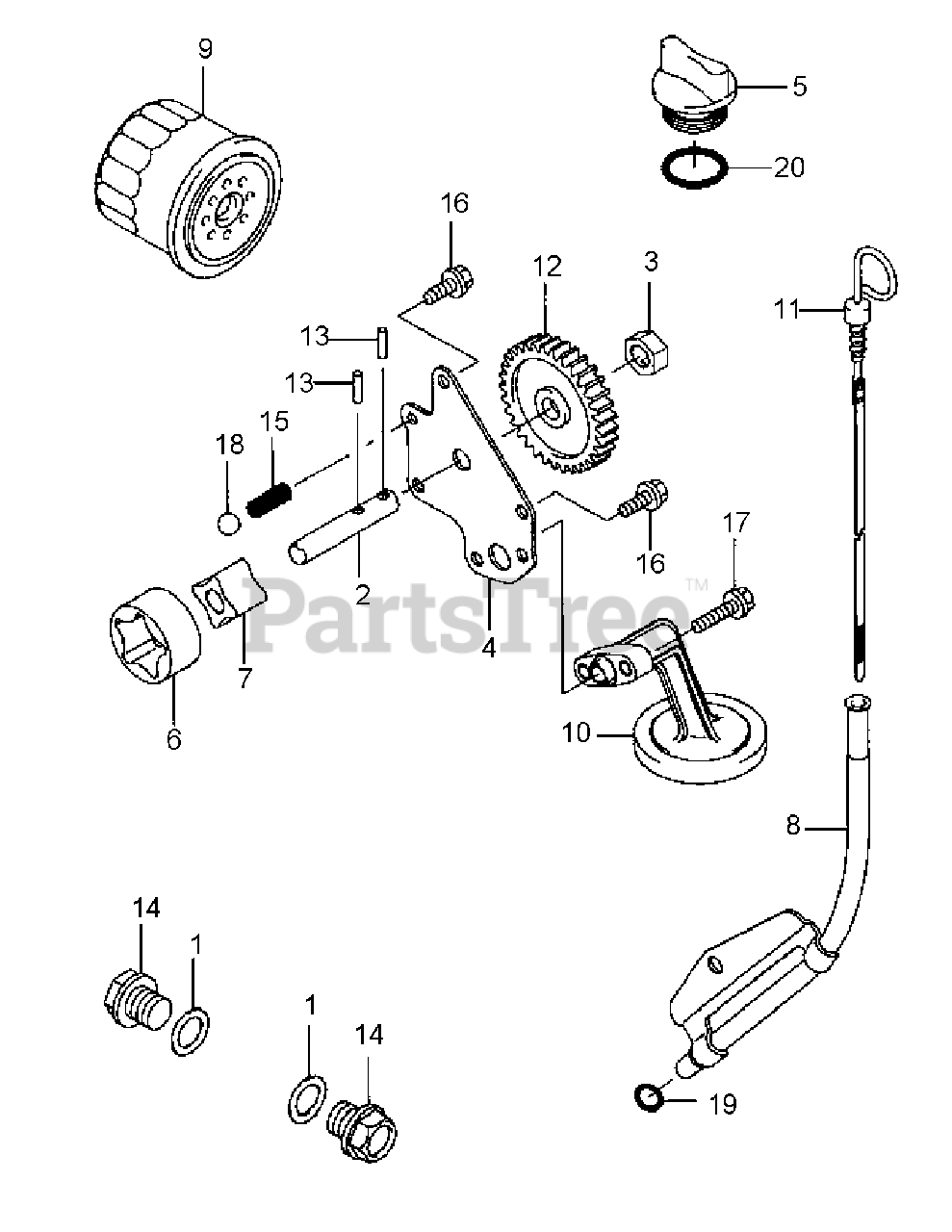

M60-KW LC (53BB5GFX750) - Cub Cadet 60" Tank Zero-Turn Mower, 29hp Kawasaki FD791D-AS05 Lubrication-Equipment Parts Diagram

60" Tank Zero-Turn Mower, 29hp Kawasaki

FD791D-AS05 Lubrication-Equipment Parts Diagram

  • Title

1

Cub Cadet KM-11009-2566

DRAIN PLUG GASKET

$0.99

$

In Stock, Qty 10

0

2

Cub Cadet KM-13107-2281

OIL PUMP SHAFT

$11.99

$

Usually ships in 2-5 days

0

3

Cub Cadet KM-13280-2061

OIL PUMP HOLDER

$6.49

$

Usually ships in 2-5 days

0

4

Cub Cadet KM-14091-2065

OIL PUMP COVER

$9.49

$

In Stock, only 1 left!

0

5

Cub Cadet KM-16115-2126

OIL FILLER CAP
(Superseded to KM-16115-7001)

$2.99

$

In Stock, Qty 6

0

6

Cub Cadet KM-16154-1075

OUTER PUMP ROTOR

$22.99

$

Usually ships in 2-5 days

0

7

Cub Cadet KM-16154-1076

INNER PUMP ROTOR

$22.99

$

Usually ships in 2-5 days

0

8

Cub Cadet KM-32153-20769H

OIL GAUGE PIPE

$

$

Not available

9

Cub Cadet KM-49065-7010

OIL FILTER
(Superseded to KM-49065-0724)

$18.99

$

In Stock, Qty 20+

0

10

Cub Cadet KM-49065-2082

OIL PICKUP

$30.99

$

Usually ships in 2-5 days

0

11

Cub Cadet KM-52005-2132

OIL GAUGE

$26.99

$

Usually ships in 2-5 days

0

12

Cub Cadet KM-59051-2354

SPUR GEAR 33T

$21.99

$

In Stock, only 4 left!

0

13

Cub Cadet KM-92042-014

PIN

$0.99

$

In Stock, Qty 12

0

14

Cub Cadet KM-92066-2099

DRAIN PLUG

$15.99

$

In Stock, only 3 left!

0

15

Cub Cadet KM-92145-2132

SPRING

$0.99

$

In Stock, Qty 5

0

16

Cub Cadet KM-130BA0616

FLANGED BOLT

$1.49

$

In Stock, only 3 left!

0

17

Cub Cadet KM-130BA0625

FLANGED BOLT

$1.49

$

In Stock, Qty 20+

0

18

Cub Cadet KM-600A1300

STEEL BALL

$0.99

$

In Stock, only 2 left!

0

19

Cub Cadet KM-670B2010

O-RING 10mm

$1.99

$

In Stock, Qty 7

0

20

Cub Cadet KM-670B3025

O-RING 25mm

$1.49

$

In Stock, only 2 left!

0
