M72-KW (53AI8CTZ750) - Cub Cadet 72" Tank Zero-Turn Mower, 37hp Kawasaki FX1000V-AS00 Carburetor Parts Diagram

72" Tank Zero-Turn Mower, 37hp Kawasaki

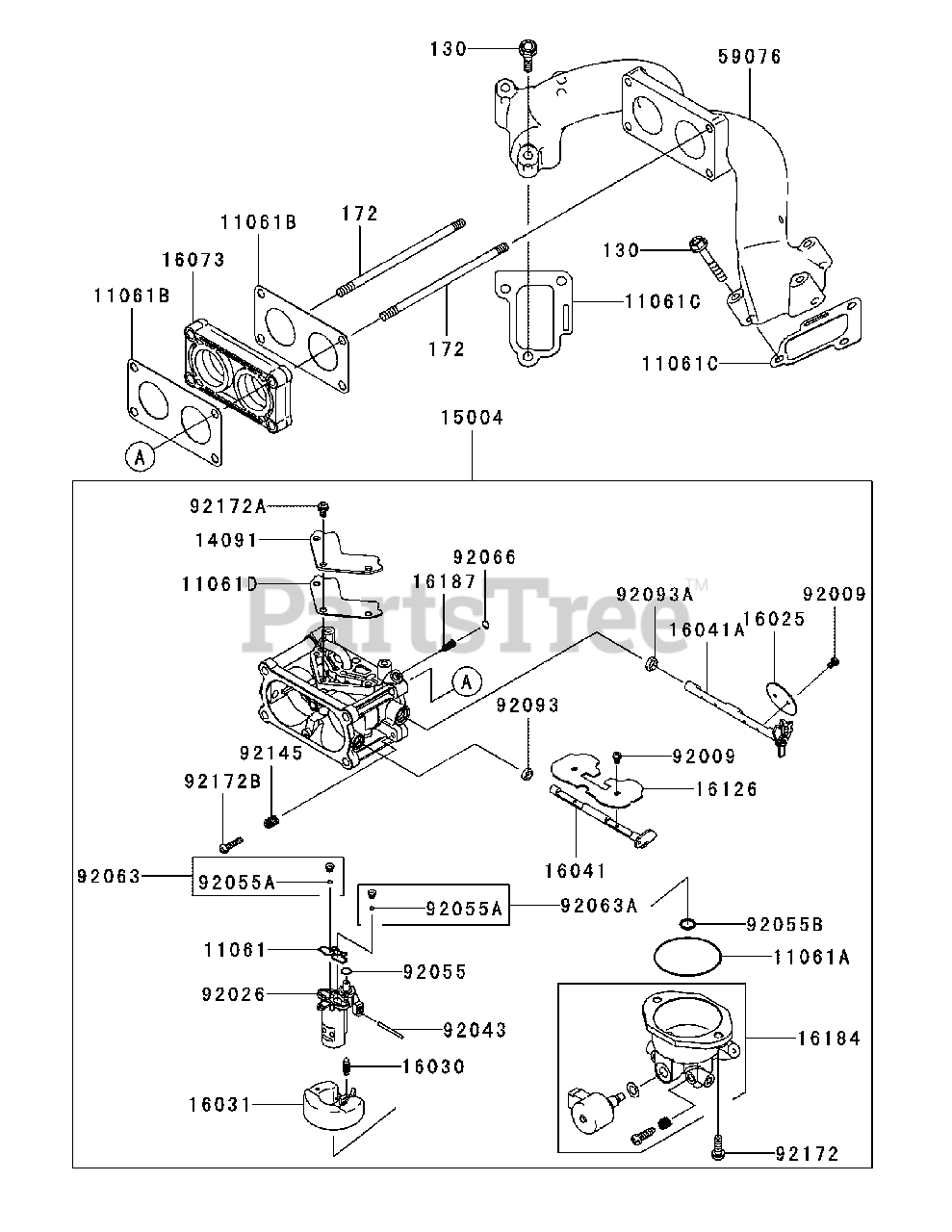

FX1000V-AS00 Carburetor Parts Diagram

  • Title

11061

Cub Cadet KM-11061-7037

GASKET

$6.99

$

In Stock, Qty 20+

0

11061A

Cub Cadet KM-11061-7038

GASKET

$2.49

$

In Stock, Qty 20+

0

11061B

Cub Cadet KM-11061-7057

GASKET, INSULATOR
(Superseded to KM-11061-7057P)

$3.49

$

Usually ships in 3-6 days

0

11061C

Cub Cadet KM-11061-7062

GASKET, MANIFOLD

$12.99

$

In Stock, only 2 left!

0

11061D

Cub Cadet KM-11061-7067

GASKET

$3.99

$

In Stock, Qty 13

0

14091

Cub Cadet KM-14091-7059

COVER

$13.99

$

Usually ships in 2-5 days

0

15004

Cub Cadet KM-15004-7003

CARBURETOR-ASSY

$

$

Not available

16025

Cub Cadet KM-16025-7012

VALVE-THROTTLE

$14.99

$

In Stock, Qty 20+

0

16030

Cub Cadet KM-16030-7004

VALVE-FLOAT

$25.99

$

In Stock, Qty 6

0

16031

Cub Cadet KM-16031-7003

FLOAT

$44.99

$

In Stock, only 2 left!

0

16041

Cub Cadet KM-16041-7035

SHAFT-CARBURETOR, CHOCK

$48.99

$

Usually ships in 2-5 days

0

16041A

Cub Cadet KM-16041-7036

SHAFT-CARBURETOR, THROTTLE

$43.99

$

In Stock, Qty 20+

0

16073

Cub Cadet KM-16073-7010

INSULATOR

$12.99

$

In Stock, only 1 left!

0

16126

Cub Cadet KM-16126-7019

VALVE, CHOCK

$14.99

$

Usually ships in 2-5 days

0

16184

Cub Cadet KM-16184-7021

CHAMBER-ASSY-FLOAT

$

$

Not available

16187

Cub Cadet KM-16187-7005

NEEDLE-JET

$12.99

$

In Stock, only 1 left!

0

59076

Cub Cadet KM-59076-7010

MANIFOLD-INTAKE

$

$

Not available

92009

Cub Cadet KM-92009-7003

SCREW

$0.99

$

In Stock, Qty 20+

0

92026

Cub Cadet KM-92026-7022

SPACER

$7.99

$

Usually ships in 2-5 days

0

92043

Cub Cadet KM-92043-7014

PIN

$6.99

$

Usually ships in 2-5 days

0

92055

Cub Cadet KM-92055-7024

RING-O

$0.99

$

In Stock, Qty 20+

0

92055A

Cub Cadet KM-92055-7013

RING-O

$0.99

$

In Stock, Qty 20+

0

92055B

Cub Cadet KM-92055-7016

RING-O

$2.49

$

In Stock, Qty 20+

0

92063

Cub Cadet KM-92063-7099

JET-MAIN, #134

$28.99

$

In Stock, only 1 left!

0

92063A

Cub Cadet KM-92063-7100

JET-MAIN, #140

$28.99

$

Usually ships in 2-5 days

0

92066

Cub Cadet KM-92066-7009

PLUG, EXPANSION

$7.99

$

In Stock, Qty 7

0

92093

Cub Cadet KM-92093-7001

SEAL, D=5.9

$2.49

$

In Stock, Qty 9

0

92093A

Cub Cadet KM-92093-7002

SEAL, D=6.9

$2.49

$

In Stock, Qty 18

0

92145

Cub Cadet KM-92145-7039

SPRING

$2.99

$

In Stock, Qty 20+

0

92172

Cub Cadet KM-92172-7005

SCREW

$1.49

$

In Stock, Qty 5

0

92172A

Cub Cadet KM-92172-7006

SCREW

$1.49

$

In Stock, only 4 left!

0

92172B

Cub Cadet KM-92172-7031

SCREW, THROTTLE ADJUST

$

$

Not available

130

Cub Cadet KM-130G0635

BOLT-FLANGED, 6X35
(Superseded to KM-130BA0635)

$1.49

$

In Stock, Qty 6

0

172

Cub Cadet KM-172BA06120

BOLT-STUD, 6X120

$3.99

$

Usually ships in 2-5 days

0
