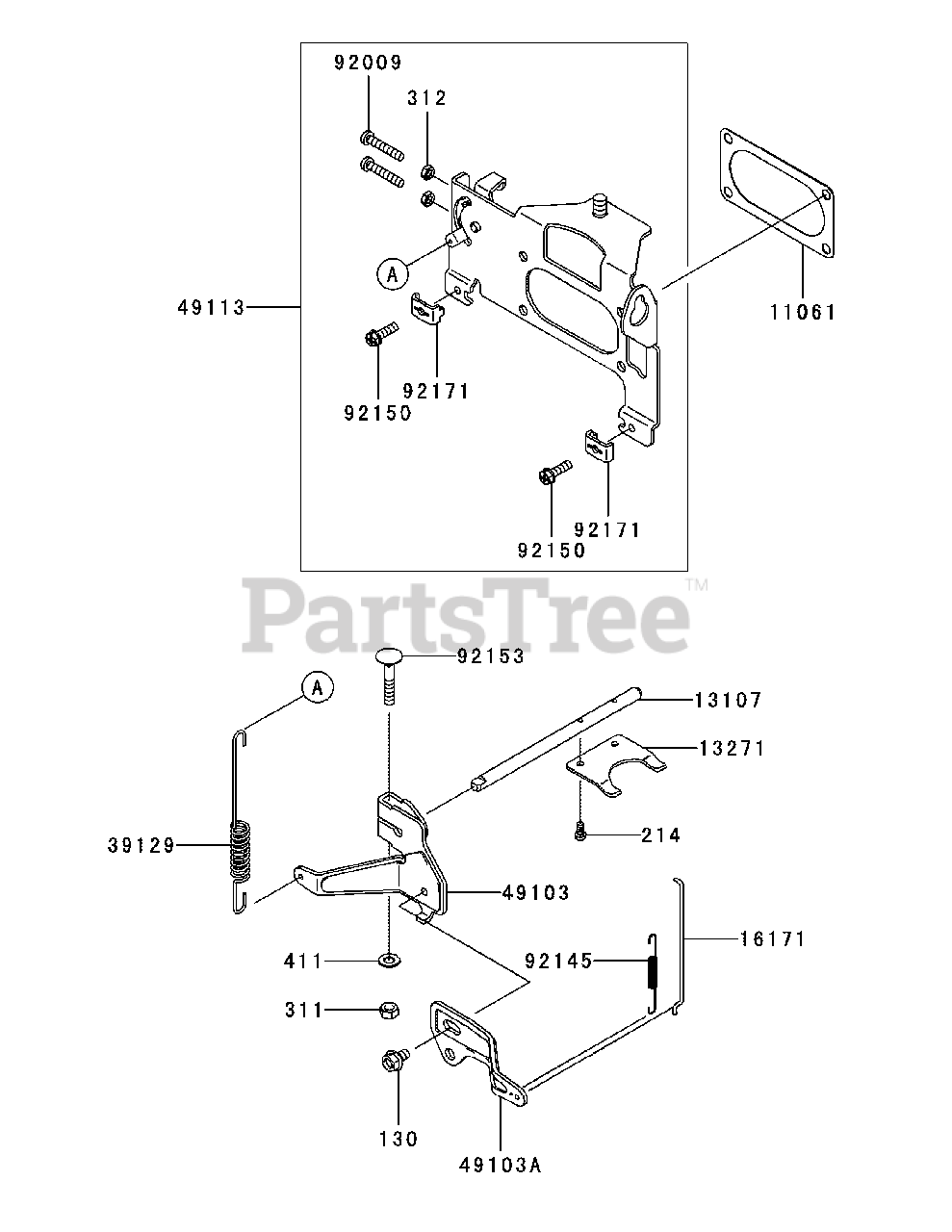

M72-KW (53AI8CTZ750) - Cub Cadet 72" Tank Zero-Turn Mower, 37hp Kawasaki FX1000V-AS00 Control Equipment Parts Diagram

72" Tank Zero-Turn Mower, 37hp Kawasaki

FX1000V-AS00 Control Equipment Parts Diagram

  • Title

11061

Cub Cadet KM-11061-7056

GASKET, PIPE-INTAKE

$1.49

$

In Stock, Qty 20+

0

13107

Cub Cadet KM-13107-7040

SHAFT
(Superseded to KM-13107-7050)

$11.99

$

Usually ships in 2-5 days

0

13271

Cub Cadet KM-13271-7038

PLATE

$3.49

$

In Stock, only 4 left!

0

16171

Cub Cadet KM-16171-7018

LINK
(Superseded to KM-16171-0038)

$0.99

$

In Stock, Qty 5

0

39129

Cub Cadet KM-39129-7017

SPRING-GOVERNOR
(Superseded to KM-39129-7027)

$4.99

$

In Stock, only 2 left!

0

49103

Cub Cadet KM-49103-7009

ARM-GOVERNOR

$4.49

$

In Stock, only 1 left!

0

49103A

Cub Cadet KM-49103-7010

ARM-GOVERNOR

$3.49

$

Usually ships in 2-5 days

0

49113

Cub Cadet KM-49113-7042

PANEL-COMP-CONTROL
(Superseded to KM-49113-0008)

$28.99

$

Usually ships in 2-5 days

0

92009

Cub Cadet KM-92009-2381

SCREW, 5X30

$0.99

$

In Stock, Qty 5

0

92145

Cub Cadet KM-92145-7050

SPRING

$1.49

$

In Stock, Qty 5

0

92150

Cub Cadet KM-92150-2182

BOLT, 5X18

$0.99

$

In Stock, Qty 16

0

92153

Cub Cadet KM-92153-7033

BOLT, 6X35
(Superseded to KM-92154-2697)

$0.99

$

In Stock, only 2 left!

0

92171

Cub Cadet KM-92171-7018

CLAMP

$2.99

$

Usually ships in 2-5 days

0

130

Cub Cadet KM-130BA0610

BOLT-FLANGED, 6X10

$1.49

$

In Stock, only 2 left!

0

214

Cub Cadet KM-214AA0408

SCREW-PAN+-, 4X8

$3.99

$

In Stock, only 1 left!

0

311

Cub Cadet KM-311AA0600

NUT-HEX, 6MM

$0.99

$

In Stock, Qty 20+

0

312

Cub Cadet KM-312B0500

NUT-HEX, 5MM

$

$

Not available

411

Cub Cadet KM-411B0600

WASHER-PLAIN, 6MM
(Superseded to KM-411AA0600)

$4.49

$

Usually ships in 2-5 days

0
