M72-KW (53AI8CTZ750) - Cub Cadet 72" Tank Zero-Turn Mower, 37hp Kawasaki Labels Parts Diagram

72" Tank Zero-Turn Mower, 37hp Kawasaki

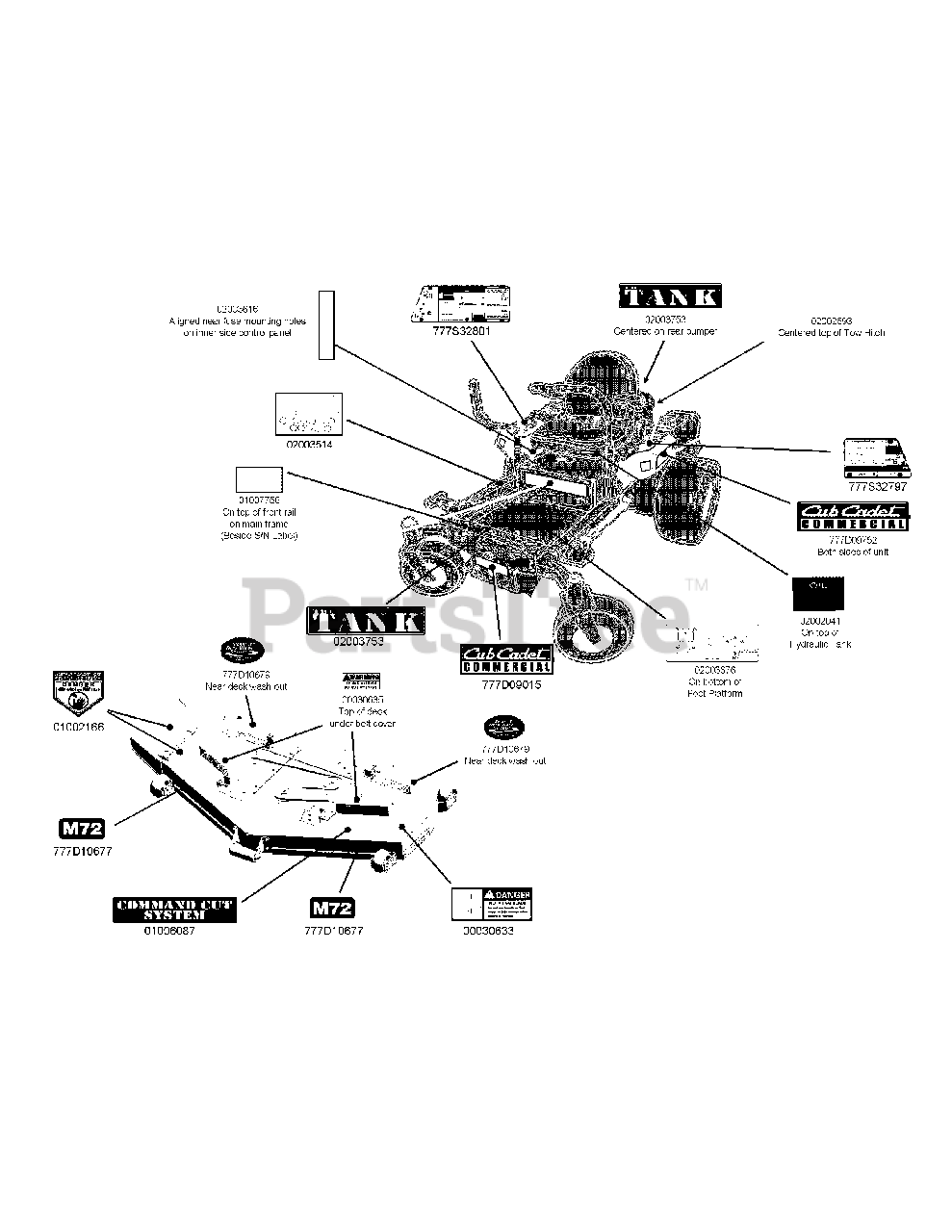

Labels Parts Diagram

  • Title

Cub Cadet 02003616

Fuse Indicator Label; Aligned near fuse mounting holes on inner side
(Superseded to 777I23522)

$

$

Not available

Cub Cadet 777S32801

Instrument Panel Label; Located on Right Panel

$24.99

$

In Stock, only 1 left!

0

Cub Cadet 02003753

Tank Label; Centered on rear bumper

$

$

Not available

Cub Cadet 02002693

Warning Hitch; Centered top of Tow Hitch
(Superseded to 777S35177)

$8.49

$

Usually ships in 3-6 days

0

Cub Cadet 777S32797

Park Brake Warning; Located on Left Panel
(Superseded to 777S33877)

$

$

Not available

Cub Cadet 777D09752

Cub Cadet Commercial Label; Located on both sides of unit

$

$

Not available

Cub Cadet 02002041

Oil Label; Located on top of Hydraulic Tank

$

$

Not available

Cub Cadet 02003676

Belt: Routing & Lubrication Label; Located on bottom of Foot Platform
(Superseded to 777I23535)

$10.99

$

Usually ships in 3-6 days

0

Cub Cadet 777D09015

Cub Cadet Commercial Label; Centered on front of unit

$

$

Not available

Cub Cadet 02003735

Tank Label; Centered on front under seat

$

$

Not available

Cub Cadet 01007756

Patent Label; On top of front rail on main fram (Beside S/N Label)

$

$

Not available

Cub Cadet 02003514

Height for Deck Label; Located on Right Side of unit

$

$

Not available

Cub Cadet 777D10679

Deck Wash Label; Near deck wash out

$7.99

$

In Stock, only 2 left!

0

Cub Cadet 00030635

Shield Warning Label; Top of deck under belt cover
(Superseded to 777S33782)

$7.99

$

Usually ships in 3-6 days

0

Cub Cadet 00030633

Rotating Blade Warning Label; Located on deck Left Side

$

$

Not available

Cub Cadet 777D10677

Deck Model Label; Located on front of deck

$

$

Not available

Cub Cadet 01006087

Command Cut System Label; Located on top of deck Left Side

$

$

Not available

Cub Cadet 01002166

Discharge Chute Warning Label; Located on Chute and Deck

$12.99

$

Usually ships in 3-6 days

0
