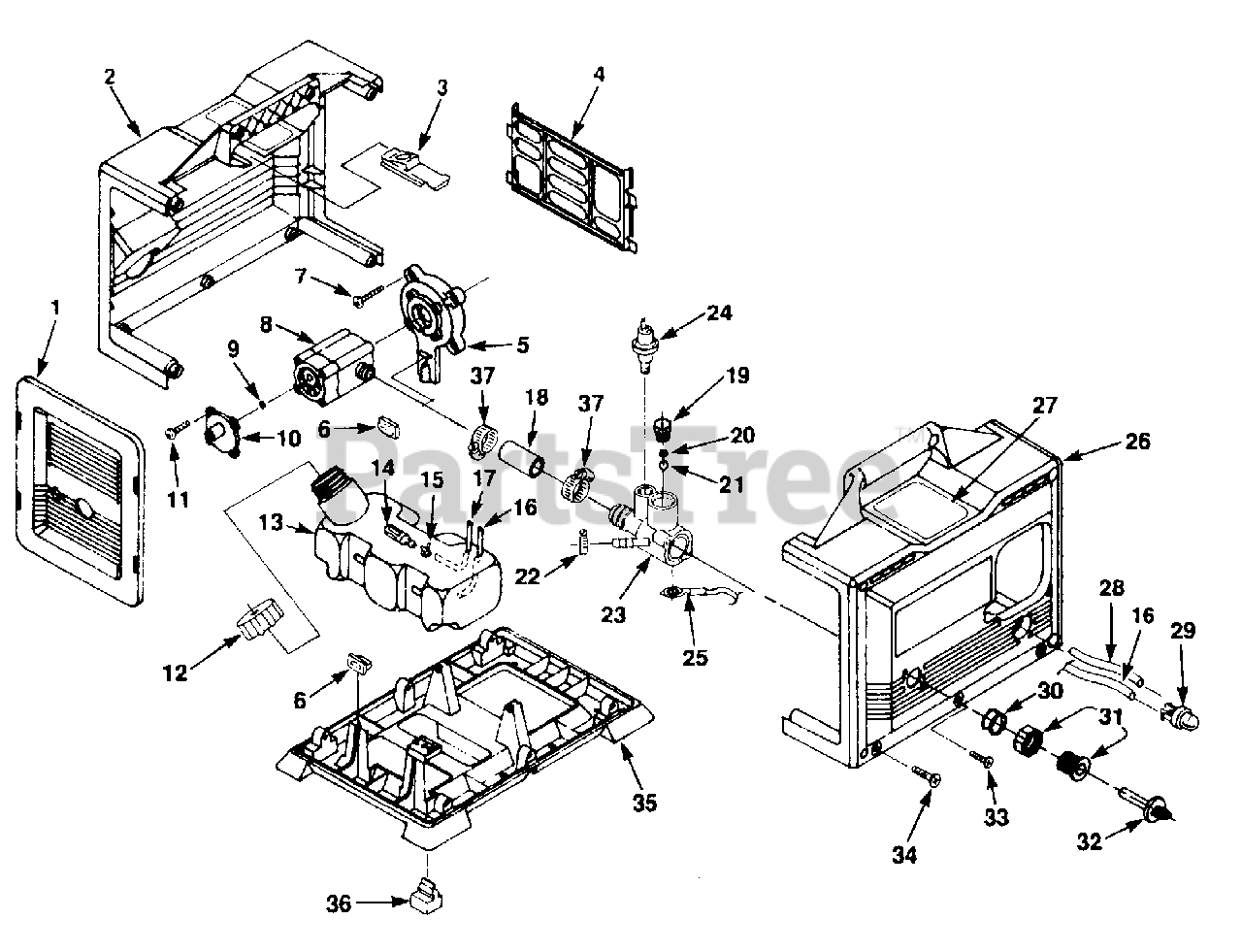

MB 1000 (UT-01596) - Homelite Pressure Washer Housing, Pump & Tank Parts Diagram

Pressure Washer

Housing, Pump & Tank Parts Diagram

  • Title

1

Homelite 04133

COVER- Front

$

$

Not available

2

Homelite A01692

HOUSING- Right w/Decals

$

$

Currently unavailable

3

Homelite 04237

EYELET

$

$

Not available

4

Homelite 00673A

SHIELD

$

$

Currently unavailable

5

Homelite A03829

ADAPTOR (w/Insert & Bearing)

$

$

Not available

6

Homelite 98792

BUMPER- Rubber

$1.49

$

In Stock, only 3 left!

0

7

Homelite 82538

SCREW- (10-24 X 3/4")

$1.49

$

Usually ships in 3-7 days

0

8

Homelite 04115

PUMP

$

$

Not available

9

Homelite 67900

"O" RING

$

$

Not available

10

Homelite 04187A

CAP- Pump
(Superseded to 041873)

$

$

Not available

11

Homelite 03917

SCREW- Mach. Truss Hd.

$2.99

$

Usually ships in 3-7 days

0

12

Homelite A00982A

CAP- Fuel Tank

$

$

Currently unavailable

13

Homelite A00225

FUEL TANK ASSEMBLY

$

$

Currently unavailable

14

Homelite 49422

FILTER- Fuel
(Superseded to PS03380)

$

$

Not available

15

Homelite 98268

CLAMP- Wire
(Superseded to 690765001)

$1.49

$

In Stock, Qty 6

0

16

Homelite 9477244

TUBING- Rubber (11")

$

$

Not available

17

Homelite 9477227

TUBING- Rubber (8")

$

$

Currently unavailable

18

Homelite 04197A

HOSE- Rubber

$

$

Not available

19

Homelite 04138A

PLUG- Vent
(Superseded to 041381)

$

$

Not available

20

Homelite 01283

"O" RING
(Superseded to UP04862)

$

$

Not available

21

Homelite 04137

BALL-Plastic

$

$

Not available

22

Homelite 02902

CLAMP- Hose (#4)

$

$

Not available

23

Homelite 04135A

MANIFOLD- Plumbing

$

$

Currently unavailable

24

Homelite 04136

SWITCH- Pressure

$

$

Not available

25

Homelite A00506

LEAD- Ground

$4.49

$

Usually ships in 3-7 days

0

26

Homelite A01691

HOUSING- Left (w/Decal)

$

$

Currently unavailable

27

Homelite 00463A

DECAL- Warning

$

$

Not available

28

Homelite 9477224

TUBING- Rubber (6")
(Superseded to UP05860)

$51.99

$

Usually ships in 3-7 days

0

29

Homelite 01183

BULB Primer
(Superseded to 300780002)

$

$

Not available

30

Homelite A02244

SPRING & ADAPTOR

$

$

Not available

31

Homelite A49908

ADAPTOR- Garden Hose

$

$

Not available

32

Homelite 00430

FILTER- Inlet

$

$

Not available

33

Homelite 82538

SCREW- Thd. Form (10-24 x 3/4")

$1.49

$

Usually ships in 3-7 days

0

34

Homelite 82563

SCREW- Thd. Form (10-14 x 3/4")

$1.49

$

In Stock, Qty 6

0

35

Homelite 04132

BASE

$

$

Not available

36

Homelite 00471

FOOT- Rubber

$4.49

$

Usually ships in 3-7 days

0

37

Homelite 03733

CLAMP- Hose (#6)

$4.49

$

Usually ships in 3-7 days

0
