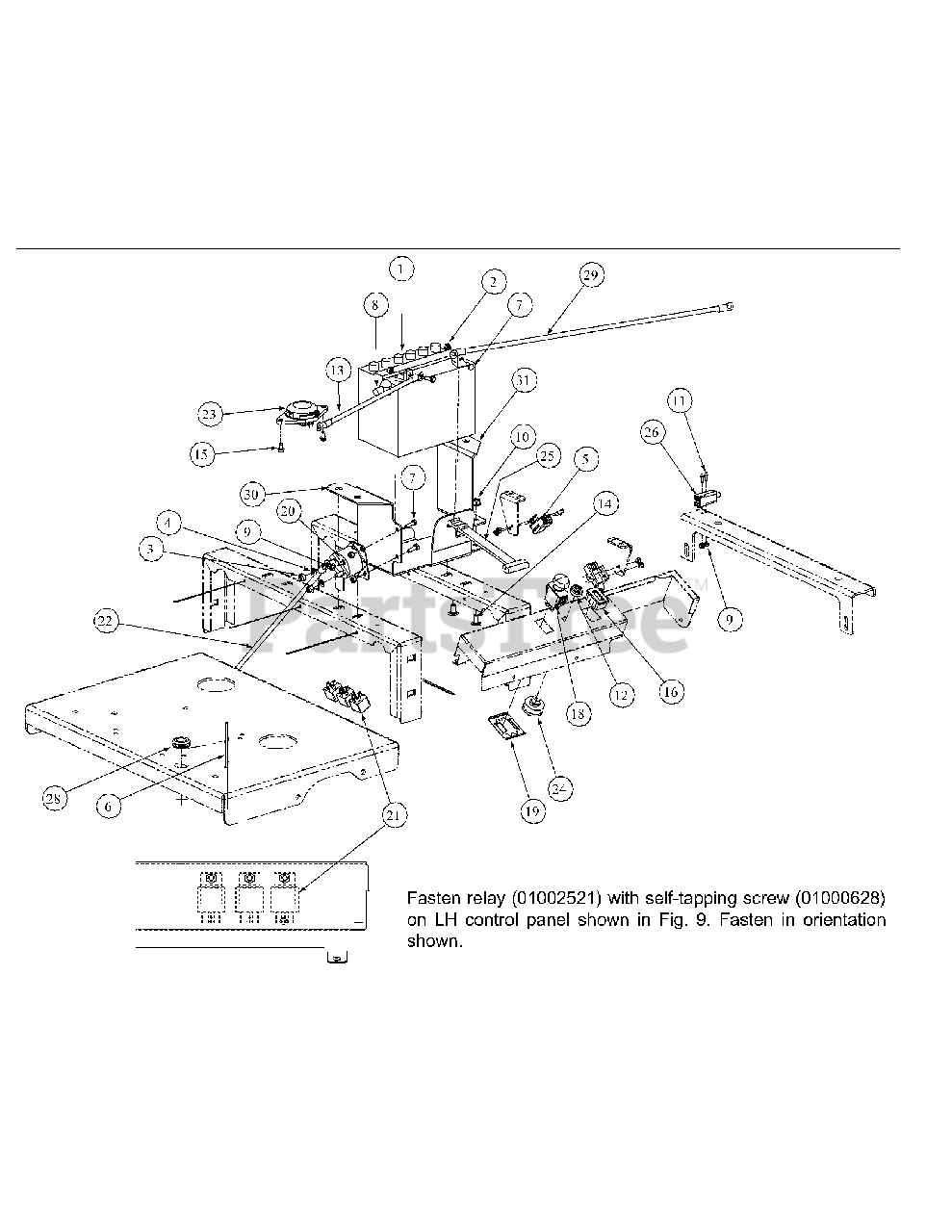

MMZ-1848 (53AB555M195) - MTD Pro Zero-Turn Mower Electrical Assembly Parts Diagram

Pro Zero-Turn Mower

Electrical Assembly Parts Diagram

  • Title

1

MTD 925-1707D

Battery

$

$

Not available

2

MTD 00012152

Nut, Lock, Nylon Insert, 1/4-20

$3.99

$

In Stock, only 1 left!

0

3

MTD 00012165

Nylock Nut, 5/16-18

$4.49

$

In Stock, only 1 left!

0

4

MTD 00012168

Lock Washer, 5/16

$

$

Not available

5

MTD 00012242

Switch, Safety
(Superseded to 925-04039)

$22.99

$

In Stock, Qty 20+

0

6

MTD 725-0157

Tie, Cable, 3/16 x .05 x 7.4"

$3.49

$

In Stock, only 4 left!

0

7

MTD 00013131

Screw, Hex, Cap, 1/4-20 x .75

$6.49

$

In Stock, only 1 left!

0

8

MTD 00013258

Boot, 1" OD Rubber Battery-PST, Red

$9.99

$

Usually ships in 3-6 days

0

9

MTD 00014608

Nut, Lock, Nylon Insert, #10-32
(Superseded to 712-05003)

$2.99

$

In Stock, only 3 left!

0

10

MTD 00022560

Nut, Hex, Flange Lock, 3/8-16
(Superseded to 712-05007)

$3.99

$

In Stock, Qty 20+

0

11

MTD 00030906

Screw, Phillips Head, Machine, 10-32 x 5/8

$6.49

$

Usually ships in 3-6 days

0

12

MTD 00032097

Nut, W/Cap, 5/8-32 Ignition
(Superseded to 00032097P)

$

$

Not available

13

MTD 00095773

Cable, Battery, Red, 15"

$

$

Not available

14

MTD 710-3178

Carriage Bolt, 3/8-16 x .75 LG.

$3.99

$

In Stock, Qty 20+

0

15

MTD 710-0599

Screw, TT, 1/4-20, .500, Hex Index Washer

$3.99

$

In Stock, Qty 20+

0

16

MTD 925-04893

Meter, Hour
(Superseded to 925-04893A)

$154.99

$

Usually ships in 3-6 days

0

17

MTD 01001811

Hourmeter, Harness
(Superseded to 929-04195)

$7.99

$

Usually ships in 3-6 days

0

18

MTD 01002111

Switch, Electric, PTO
(Superseded to 925-1716A)

$68.99

$

In Stock, Qty 20+

0

19

MTD 783-0462

Bracket, PTO Switch Retainer

$7.99

$

In Stock, only 3 left!

0

20

MTD 925-3001

Solenoid Magnetic Switch

$54.99

$

In Stock, Qty 12

0

21

MTD 01002251

Relay, 12V 40A

$53.99

$

In Stock, only 3 left!

0

22

MTD 01005406

Cable, Battery Red, 32"

$

$

Not available

23

MTD 01003277

Switch, Seat

$36.99

$

In Stock, only 3 left!

0

24

MTD 01003581P

Switch, Ignition, 6 Pin

$65.99

$

In Stock, Qty 20+

0

25

MTD 723-0444

Strap, Battery

$22.99

$

Usually ships in 3-6 days

0

26

MTD 01003712

Switch, Plunger
(Superseded to 725-3223)

$17.99

$

In Stock, only 2 left!

0

27

MTD 01006555

Harness Assembly

$

$

Not available

28

MTD 01004040

Grommet, .75 ID
(Superseded to 735-04285)

$3.99

$

Usually ships in 3-6 days

0

29

MTD 01004078

Cable, Battery Black, 24"

$35.99

$

Usually ships in 3-6 days

0

30

MTD 01004514

Mount Bracket, Battery

$

$

Not available

31

MTD 01004559

Mount Bracket, Battery

$

$

Not available

32

MTD 01002230

Harness Adaptor

$

$

Not available
