MT 155420 H (2691199-00) - Yard King 42" Lawn Tractor, 15.5hp (2013) Seat Deck Group Parts Diagram

42" Lawn Tractor, 15.5hp

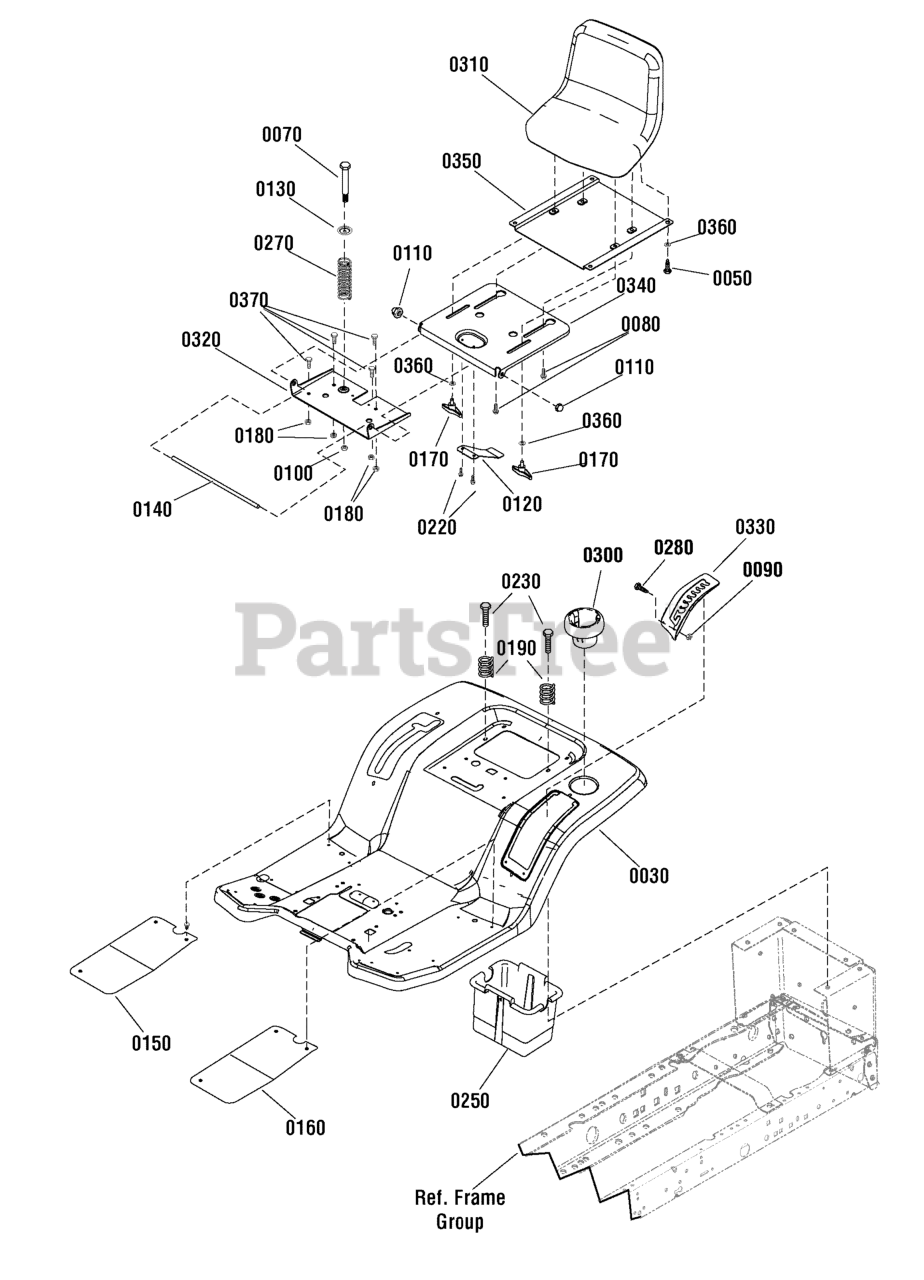

Seat Deck Group Parts Diagram

  • Title

0030

Murray 7300843BIYP

DECK, Seat

Note: (Used on Gear Drive Models)

$341.99

$

Usually ships in 2-12 days

0

0030

Murray 7300842BIYP

DECK, Seat

Note: (Used on Hydro Drive Models)

$319.99

$

Usually ships in 2-12 days

0

0050

Murray 001X45MA

BOLT, Hex, 5/16-18 x 5/8
(Superseded to 703822)

$4.49

$

In Stock, only 2 left!

0

0070

Murray 009X55MA

BOLT, Shoulder, 1/4-20 x 5/16

$3.49

$

Usually ships in 2-12 days

0

0080

Murray 009X56MA

BOLT, Shoulder, 5/16-18 x 5/8

$3.49

$

Usually ships in 2-12 days

0

0090

Murray 015X81MA

NUT, McLean Lock, #10-24

$4.99

$

Usually ships in 2-12 days

0

0100

Murray 015X89MA

NUT, Hex Flange Lock, 1/4-20

$4.49

$

Usually ships in 2-12 days

0

0110

Murray 028X23MA

CAP, Push On
(Superseded to 703948)

$4.49

$

In Stock, Qty 6

0

0120

Murray 094057MA

LEAF SPRING

$5.99

$

Usually ships in 2-12 days

0

0130

Murray 094155ZMA

WASHER, Cup

$3.99

$

Usually ships in 2-12 days

0

0140

Murray 094156ZMA

ROD, Pivot

$7.99

$

Usually ships in 2-12 days

0

0150

Murray 094998MA

MAT, Right

$

$

Not available

0160

Murray 094999MA

MAT, Left

$18.99

$

In Stock, only 1 left!

0

0170

Murray 1001054MA

BOLT, Wing, 5/16-18 x 1/2

$6.99

$

Usually ships in 2-12 days

0

0180

Murray 15X123MA

NUT, Nylock 5/16-18

$3.99

$

Usually ships in 2-12 days

0

0190

Murray 164X30MA

SPRING, Compression

$15.99

$

Usually ships in 2-12 days

0

0220

Murray 26X229MA

SCREW, 1/4-14 x 3/8

$4.49

$

In Stock, only 1 left!

0

0230

Murray 26X249MA

CAPSCREW, 5/16-18 x 3/4

$

$

Not available

0250

Murray 690424MA

CONTAINER, Battery

$45.99

$

In Stock, only 1 left!

0

0270

Murray 164X31MA

SPRING, Compression

$7.99

$

In Stock, only 2 left!

0

0280

Murray 26X270MA

SCREW, Thread Forming, #10-24

$4.49

$

In Stock, only 3 left!

0

0300

Murray 1001542MA

BEVERAGE HOLDER

$11.99

$

Usually ships in 2-12 days

0

0310

Murray 7103142YP

SEAT

$307.99

$

Usually ships in 2-12 days

0

0320

Murray 7300794BMYP

BRACKET, Seat Pivot

$33.99

$

Usually ships in 2-12 days

0

0330

Murray 7300839BMYP

PLATE, Index

$19.99

$

Usually ships in 2-12 days

0

0340

Murray 7300875BMYP

SUPPORT, Seat

$65.99

$

Usually ships in 2-12 days

0

0350

Murray 7400302BMYP

SEAT PLATE

$61.99

$

Usually ships in 2-12 days

0

0360

Murray 017X47MA

WASHER, Flat, 5/16
(Superseded to 704015)

$4.49

$

Usually ships in 2-12 days

0

0370

Murray 001X45MA

BOLT, Hex, 5/16-18 x 5/8
(Superseded to 703822)

$4.49

$

In Stock, only 2 left!

0
