MT 24520 H (2690930-01) - Murray 52" Lawn Tractor, Hydro Drive, 24hp (2012) Frame & Front Axle Group Parts Diagram

52" Lawn Tractor, Hydro Drive, 24hp

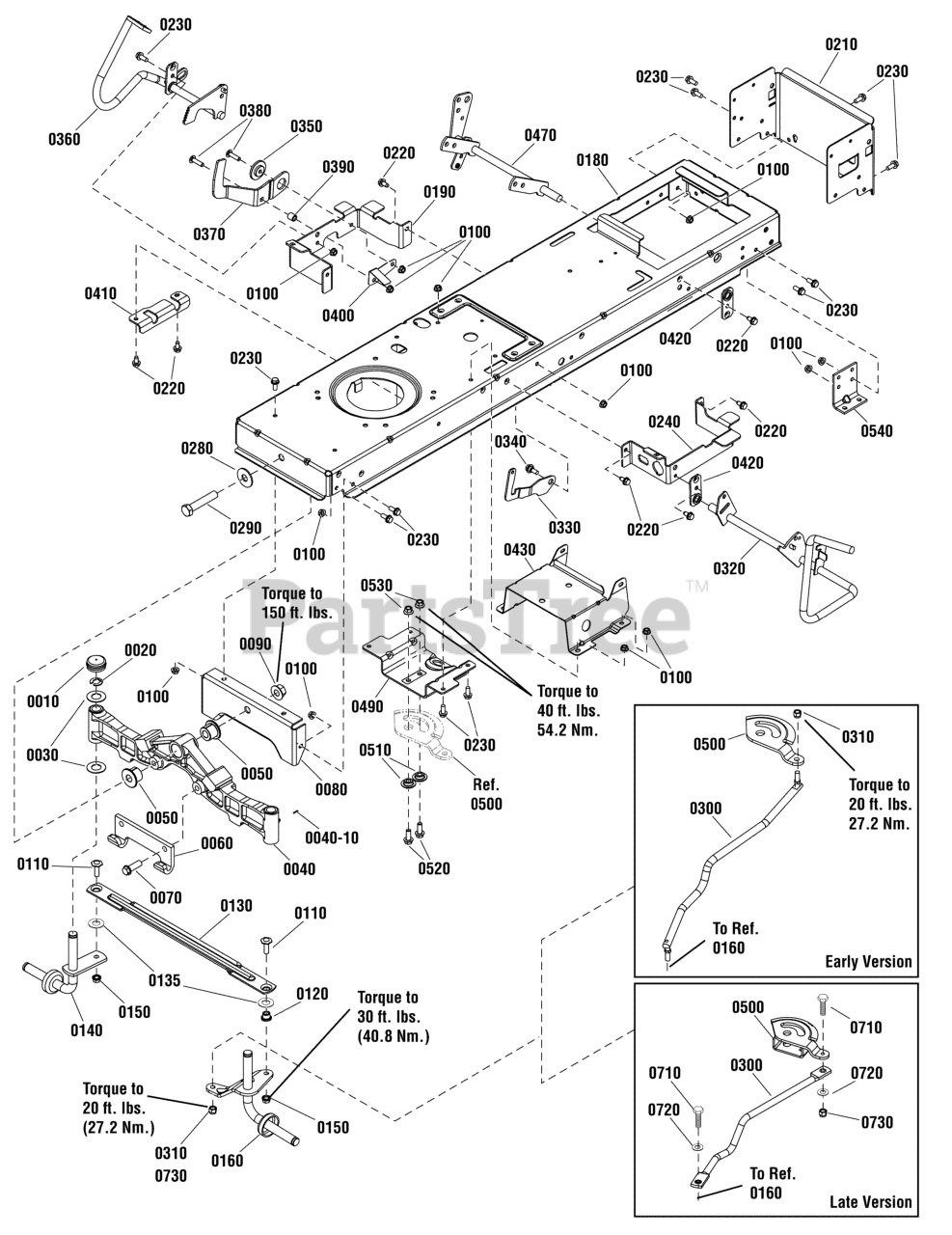

Frame & Front Axle Group Parts Diagram

  • Title

0010

Murray 1734135

CAP, Hub, 1.48 ID x .62 Long
(Superseded to 1734135SM)

$5.99

$

In Stock, Qty 20+

0

0020

Murray 1611710

RING, Klipring, 3/4 Dia.
(Superseded to 1611710SM)

$4.49

$

In Stock, Qty 20+

0

0030

Murray 2860183

WASHER, 3/4 x 1-5/8 OD x 1/16 Thick
(Superseded to 2860183SM)

$4.99

$

In Stock, Qty 20+

0

0040

Murray 1728018

AXLE, Front
(Superseded to 1756386YP)

$185.99

$

In Stock, only 1 left!

0

0040-10

Murray 1704314

FITTING, Lube, .250" Drive, .25" Shank Ball Chk Yel
(Superseded to 1704314SM)

$4.99

$

In Stock, Qty 20+

0

0050

Murray 1730186

BUSHING, Axle Pivot
(Superseded to 1730186SM)

$6.99

$

In Stock, Qty 14

0

0060

Murray 1721918

HOOK, Mower, Hitch
(Superseded to 1721918ASM)

$31.99

$

In Stock, Qty 9

0

0070

Murray 1960652

CAPSCREW, Hex, Whiz Lock, 7/16-14 x 1-1/2
(Superseded to 1960652SM)

$5.49

$

In Stock, Qty 8

0

0080

Murray 1727902

PLATE, Axle Support
(Superseded to 1727902SM)

$43.99

$

Usually ships in 2-12 days

0

0090

Murray 2860646

NUT, Hex Flange, Two Way, 5/8-11
(Superseded to 2860646SM)

$10.99

$

In Stock, Qty 6

0

0100

Murray 1931277

NUT, Hex Flange, Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0110

Murray 1960032

CAPSCREW, Hex Head, 3/8-16 x 1-1/4, G5
(Superseded to 1960032SM)

$5.49

$

In Stock, only 2 left!

0

0120

Murray 1731912

BUSHING, 3/8 ID x 5/8 OD x 9/16 Long
(Superseded to 1731912SM)

$4.49

$

In Stock, Qty 20+

0

0130

Murray 1728080A

TIE ROD, Flat
(Superseded to 1728080ASM)

Note: (Early Version)

$35.99

$

In Stock, only 1 left!

0

0130

Murray 1751964

TIE ROD, Flat
(Superseded to 1751964BMYP)

Note: (Late Version)

$32.99

$

In Stock, Qty 5

0

0135

Murray 1960703SM

WASHER, 5/8

Note: (Late Version)

$4.49

$

In Stock, only 2 left!

0

0140

Murray 1727872A

WHEEL SPINDLE ASSEMBLY, R.H.
(Superseded to 1727872ASM)

$98.99

$

In Stock, Qty 20+

0

0150

Murray 1930645

NUT, Hex Flange, Two Way, Locking, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

0160

Murray 1727873

WHEEL SPINDLE ASSEMBLY, L.H.
(Superseded to 1727873ASM)

Note: (Early Version)

$101.99

$

In Stock, Qty 7

0

0160

Murray 1751922

WHEEL SPINDLE ASSEMBLY, L.H.
(Superseded to 1751922YP)

Note: (Late Version)

$109.99

$

Usually ships in 2-12 days

0

0180

Murray 1736715A

FRAME
(Superseded to 1756448YP)

Note: (Was 1738937)

$222.99

$

Usually ships in 2-12 days

0

0190

Murray 1727904

SUPPORT, Front Footrest, R.H.
(Superseded to 1759842BMYP)

$39.99

$

Usually ships in 2-12 days

0

0210

Murray 1736746A

SUPPORT, Rear Frame
(Superseded to 1738229YP)

$41.99

$

In Stock, only 1 left!

0

0220

Murray 1930601

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 5/8
(Superseded to 703949)

$3.99

$

In Stock, Qty 5

0

0230

Murray 1930591

CAPSCREW, Hex, Whiz Lock, 5/16-18 x 3/4
(Superseded to 80003531)

$5.49

$

In Stock, Qty 14

0

0240

Murray 885536

SUPPORT, Front Footrest, L.H.
(Superseded to 885536AYP)

Note: (Was 1727905)

$25.99

$

Usually ships in 2-12 days

0

0280

Murray 1960035

WASHER, 5/8 x 1-3/4 OD
(Superseded to 1960035SM)

$4.49

$

In Stock, only 1 left!

0

0290

Murray 2860744

CAPSCREW, Hex Head, 5/8-11 x 3-1/4, G5
(Superseded to 2860744SM)

$8.49

$

Usually ships in 2-12 days

0

0300

Murray 1727868

LINK, Drag (with Ball Joint), 3/8
(Superseded to 1727868SM)

Note: (Early Version)

$

$

Not available

0300

Murray 1738051

LINK, Drag (with Bearing), 5/16
(Superseded to 1738051YP)

Note: (Late Version)

$60.99

$

In Stock, Qty 12

0

0310

Murray 1960747

NUT, Hex, Nylock, 3/8-24
(Superseded to 703901)

Note: (Early Version)

$3.49

$

In Stock, Qty 5

0

0320

Murray 1736404

PEDAL ASSEMBLY, Brake
(Superseded to 1736404AYP)

$98.99

$

Usually ships in 2-12 days

0

0330

Murray 1735595A

LATCH, Brake Lock
(Superseded to 1735595ASM)

$10.99

$

Usually ships in 2-12 days

0

0340

Murray 1729576

BOLT, Shoulder, 5/16-18 x 15/32, G5
(Superseded to 703851)

$5.49

$

In Stock, only 1 left!

0

0350

Murray 1727935

SPACER, Pivot, 11/32 ID 1-3/4 OD
(Superseded to 1727935SM)

$5.99

$

In Stock, only 3 left!

0

0360

Murray 1736714

PEDAL ASSEMBLY, Forward
(Superseded to 1736714AYP)

$89.99

$

Usually ships in 2-12 days

0

0370

Murray 1727246A

PEDAL, Reverse
(Superseded to 1727246SM)

$20.99

$

Usually ships in 2-12 days

0

0380

Murray 1960223

BOLT, Carriage, 5/16-18 x 1-1/4, G5
(Superseded to 703446)

$4.49

$

In Stock, Qty 5

0

0390

Murray 1728024

SPACER, Foot Pedal
(Superseded to 1728024SM)

$4.99

$

Usually ships in 2-12 days

0

0400

Murray 1728025

ACTUATOR, RMO Switch
(Superseded to 1728025BMYP)

$6.49

$

Usually ships in 2-12 days

0

0410

Murray 1727909

BRACKET, Pedal Pivot
(Superseded to 885591YP)

$22.99

$

Usually ships in 2-12 days

0

0420

Murray 1727911

PLATE, Bearing
(Superseded to 1727911ASM)

$12.99

$

Usually ships in 2-12 days

0

0430

Murray 1727282

SUPPORT, Battery
(Superseded to 1727282SM)

$

$

Not available

0470

Murray 1737957

LIFT SHAFT ASSEMBLY
(Superseded to 1737957YP)

$59.99

$

In Stock, only 1 left!

0

0490

Murray 1727940

BRACKET, Sector Support
(Superseded to 1727940SM)

$

$

Not available

0500

Murray 1728027

GEAR, Steering
(Superseded to 1751110YP)

Note: (Early Version)

$34.99

$

In Stock, Qty 20+

0

0500

Murray 1751110

GEAR, Steering, 26 Teeth
(Superseded to 1751110YP)

Note: (Late Version)

$34.99

$

In Stock, Qty 20+

0

0510

Murray 1728122

SPACER, Sector Gear, 3/8 ID x 1-1/4 OD
(Superseded to 1728122SM)

$5.49

$

In Stock, Qty 10

0

0520

Murray 1934654

CAPSCREW, Hex, Whiz Lock, 3/8-16 x 1
(Superseded to 704038)

$5.99

$

In Stock, only 3 left!

0

0530

Murray 1930645

NUT, Hex Flange, Two-Way Lock, 3/8-16
(Superseded to 703893)

Note: (Was 1931211)

$6.99

$

In Stock, Qty 20+

0

0540

Murray 1727903

SUPPORT, Transmission
(Superseded to 1727903SM)

$10.99

$

In Stock, Qty 12

0

0710

Murray 1921977

CAPSCREW, Hex Head, 5/16-18 x 1-1/4
(Superseded to 1921977SM)

Note: (Late Version)

$4.99

$

In Stock, Qty 10

0

0720

Murray 1924874

WASHER, 5/16 Flat (.341 I.D. x .87 O.D. X .06 Thick) Black
(Superseded to 703302)

Note: (Late Version)

$4.49

$

In Stock, Qty 20+

0

0730

Murray 1935048

NUT, Hex Flange Two-Way Lock, 5/16-18
(Superseded to 704067)

Note: (Late Version)

$3.99

$

In Stock, Qty 20+

0
