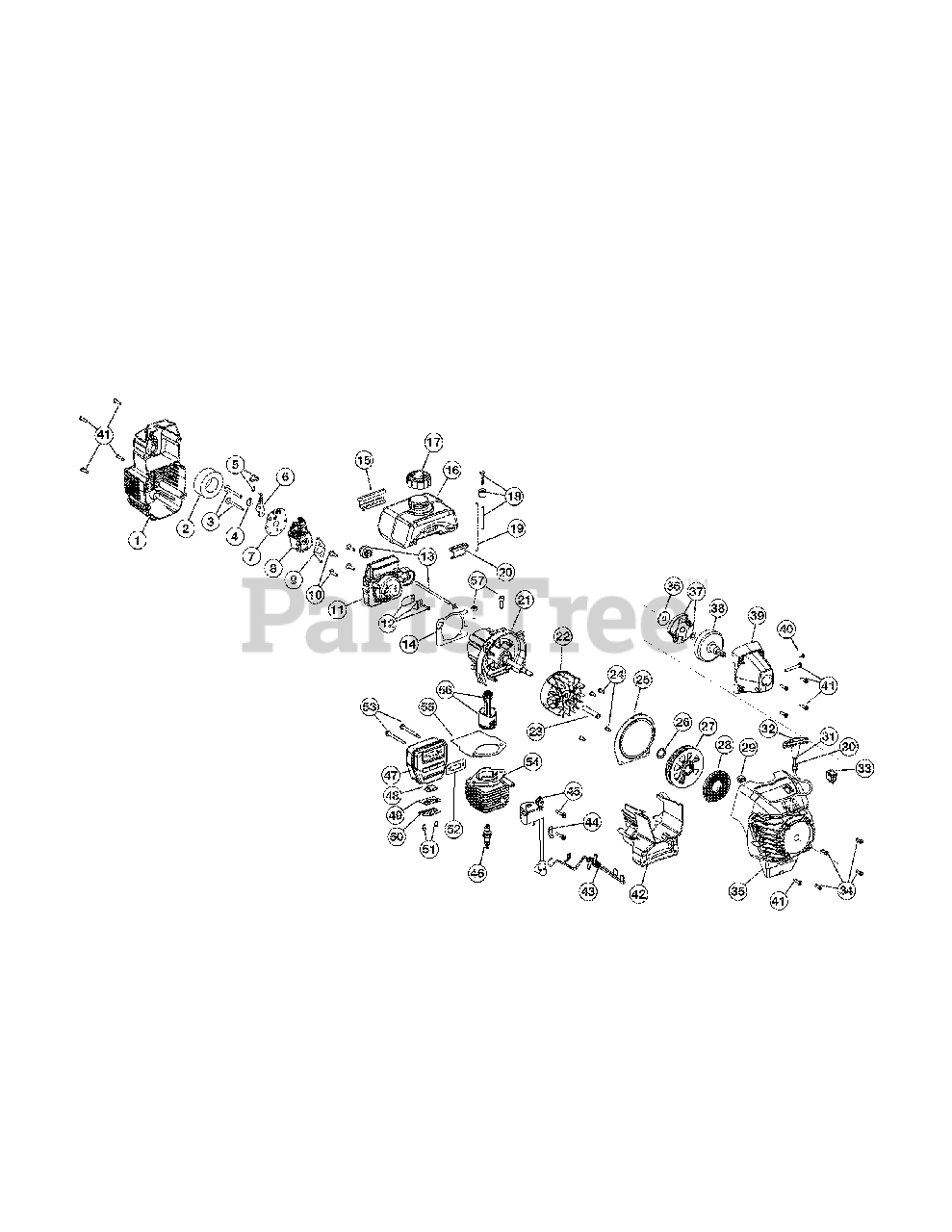

MT 705 (41AD705G977) - McCulloch String Trimmer Engine Parts Parts Diagram

String Trimmer

Engine Parts Parts Diagram

  • Title

1

MTD 753-04511

Air Cleaner Cover Assembly (includes 2 & 41)

$38.99

$

Usually ships in 3-6 days

0

2

MTD 791-180350B

Air Cleaner Filter

$9.99

$

In Stock, only 1 left!

0

3

MTD 791-180351

Carburetor Mounting Screw Assembly

$

$

Not available

4

MTD 791-180226

Wavey Washer
(Superseded to 936-0271)

$4.49

$

In Stock, Qty 10

0

5

MTD 791-182202

Choke Knob

$

$

Not available

6

MTD 753-04418

Choke Lever (includes 5)

$

$

Not available

7

MTD 753-04419

Choke Plate (includes 6)

$

$

Not available

8

MTD 753-04333

Carburetor Assembly (includes 9 & 18)

$

$

Not available

9

MTD 791-610675

Carburetor Gasket

$4.49

$

In Stock, Qty 19

0

10

MTD 791-181860

Carb Mount Screw

$

$

Not available

11

MTD 753-1196

Carb Mount Assembly (includes 10, 12 & 14)

$

$

Not available

12

MTD 791-684451

Reed Assembly

$

$

Not available

13

MTD 791-683974B

Primer and Hose Assembly

$22.99

$

In Stock, Qty 18

0

14

MTD 753-1208

Carburetor Mount Gasket

$16.99

$

Usually ships in 3-6 days

0

15

MTD 791-612134

Rear Mounting Pad

$

$

Not available

16

MTD 791-182767

Fuel Tank Assembly (includes 17 & 19)

$

$

Not available

17

MTD 791-182612

Fuel Cap

$20.99

$

In Stock, Qty 10

0

18

MTD 791-682039

Fuel Line Assembly

$16.99

$

In Stock, Qty 11

0

19

MTD 791-181086

Fuel Return Line

$7.49

$

In Stock, Qty 20+

0

20

MTD 791-145308

Front Mounting Pad

$

$

Not available

21

MTD 753-04401

Crank Case Service Assembly (includes 10)

$

$

Not available

22

MTD 791-182736

Flywheel Assembly
(Superseded to 753-05240)

$76.99

$

In Stock, only 2 left!

0

23

MTD 791-181525

Spacer

$22.99

$

Usually ships in 3-6 days

0

24

MTD 753-1202

Pressure Plate Screw
(Superseded to 1755)

$3.99

$

Usually ships in 3-6 days

0

25

MTD 753-04928

Pressure Plate (includes 24 & 29)

$

$

Not available

26

MTD 753-04288

Pulley Retainer

$10.99

$

Usually ships in 3-6 days

0

27

MTD 753-04823

Recoil Pulley Assembly (includes 26)

$33.99

$

In Stock, Qty 8

0

28

MTD 753-04286

Recoil Spring

$26.99

$

In Stock, Qty 5

0

29

MTD 753-04824

Rope Guide Retainer

$

$

Not available

30

MTD 791-611061

Rope Guide

$10.99

$

In Stock, only 2 left!

0

31

MTD 791-613103

Rope

$10.99

$

In Stock, only 2 left!

0

32

MTD 791-181079

Pull Handle
(Superseded to 631-04164B)

$3.99

$

In Stock, only 1 left!

0

33

MTD 791-182673

Switch

$10.99

$

Usually ships in 3-6 days

0

34

MTD 791-181862

Housing Screw
(Superseded to 1964)

$4.49

$

In Stock, Qty 15

0

35

MTD 753-04904

Starter Housing Assembly (includes 24-34 & 41)

$

$

Not available

36

MTD 791-182396

Clutch Washer
(Superseded to 9162-1)

$4.49

$

In Stock, only 3 left!

0

37

MTD 791-182369

Clutch Rotor Assembly
(Superseded to 753-05860)

$25.99

$

In Stock, Qty 10

0

38

MTD 791-153592

Clutch Drum Assembly

$51.99

$

In Stock, Qty 12

0

39

MTD 753-04889

Clutch Cover Assembly (includes 40 & 41)

$21.99

$

Usually ships in 3-6 days

0

40

MTD 791-182519

Anti-Rotation Screw

$4.99

$

Usually ships in 3-6 days

0

41

MTD 791-181345

Cover Screw

$4.49

$

In Stock, only 4 left!

0

42

MTD 753-04702

Shroud Extension & Stand (includes 41)

$29.99

$

Usually ships in 3-6 days

0

43

MTD 753-05023

Wire Leads and Sleeve
(Superseded to 794-00028)

$9.49

$

Usually ships in 3-6 days

0

44

MTD 791-611063

Ground Tab

$

$

Not available

45

MTD 753-04324

Module Assembly

$110.99

$

In Stock, only 1 left!

0

46

MTD 791-610311B

Spark Plug

$14.99

$

In Stock, only 3 left!

0

47

MTD 753-04618

Muffler Assembly (includes 48 & 49)
(Superseded to 753-05169)

$112.99

$

Usually ships in 3-6 days

0

48

MTD 753-04619

Exhaust Gasket

$9.49

$

In Stock, only 1 left!

0

49

MTD 753-04620

Muffler Mounting Bolts
(Superseded to 710-04188A)

$4.49

$

Usually ships in 3-6 days

0

50

MTD 753-04814

Cylinder Assembly (includes 52 & 53)

$83.99

$

In Stock, only 1 left!

0

51

MTD 753-04367

Piston and Rod Assembly

$

$

Not available

52

MTD 753-04182

Cylinder Gasket

$16.99

$

Usually ships in 3-6 days

0

53

MTD 791-182723

Cylinder Bolt

$4.49

$

In Stock, Qty 13

0

MTD 753-1209

Piston Ring Set (NOT SHOWN)

$52.99

$

Usually ships in 3-6 days

0

MTD 753-04689

Spark Arrestor Screen (NOT SHOWN)

$

$

Not available

MTD 753-04812

Short Block Assembly (includes 10, 21, 46, 50-53) (NOT SHOWN)

$208.99

$

Usually ships in 3-6 days

0

MTD 791-181599

Clutch Springs (Qty. 2) (NOT SHOWN)

$11.99

$

Usually ships in 3-6 days

0
