MZ 2142 (17AC2ACS058) - Murray 42" Zero-Turn Mower (2013) Rear Drive & Wheels Parts Diagram

42" Zero-Turn Mower

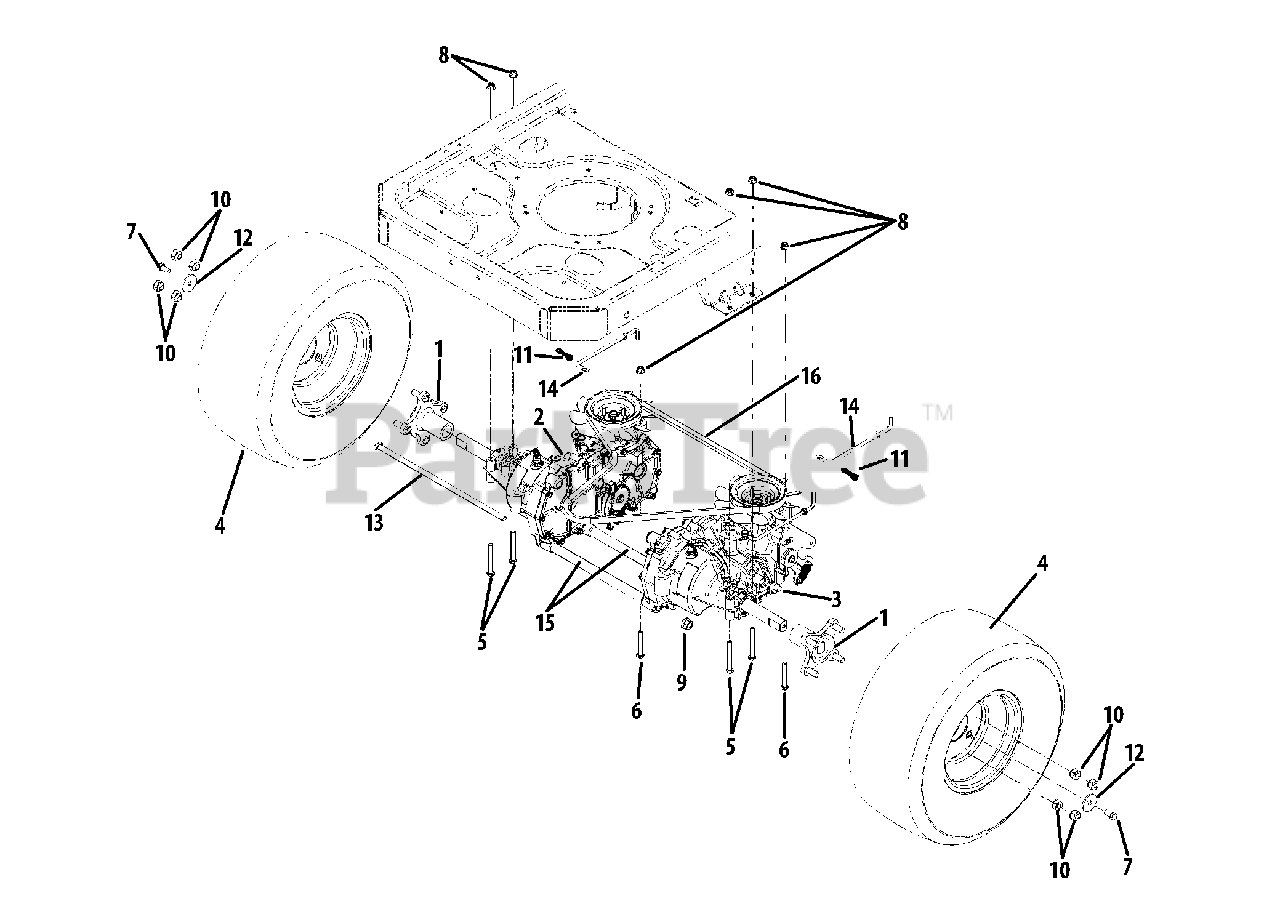

Rear Drive & Wheels Parts Diagram

  • Title

1

MTD 918-04317

Wheel Hub, 7/16-14 x 1.6

$116.99

$

In Stock, Qty 10

0

2

MTD 918-04431B

Transmission Assembly, LH

$1719.99

$

Usually ships in 3-6 days

0

3

MTD 918-04432B

Transmission Assembly, RH

$1805.99

$

Usually ships in 3-6 days

0

4

MTD 634-04293-0911

Wheel Assembly, 18 x 8.5-8
(Superseded to 634-04293-0916)

$132.99

$

Usually ships in 3-6 days

0

5

MTD 710-0176

Hex Cap Screw, 5/16-18 x 2.75

$4.49

$

In Stock, only 3 left!

0

6

MTD 710-0395

Hex Cap Screw, 5/16-18 x 2.25

$4.99

$

In Stock, Qty 7

0

7

MTD 710-3119

Hex Cap Screw, 3/8-16 x .75

$6.99

$

In Stock, Qty 7

0

8

MTD 712-04063

Hex Flange Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

9

MTD 712-0459

Hex Flange Nut, 7/16-20

$4.99

$

In Stock, Qty 20+

0

10

MTD 712-3050

Lug Nut, 7/16-14

$9.99

$

In Stock, Qty 20+

0

11

MTD 714-04040

Bow-Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

12

MTD 936-0227

Flat Washer, .39 x 1.5 .134
(Superseded to 736-0227)

$

$

Not available

13

MTD 738-04192B

Rod, .405 x 14.0

$21.99

$

Usually ships in 3-6 days

0

14

MTD 747-04217C-0637

Bypass Rod

$21.99

$

Usually ships in 3-6 days

0

15

MTD 750-04561

Tube, .45 x .69 x 10.2
(Superseded to 750-04561A)

$26.99

$

In Stock, only 2 left!

0

16

MTD 954-04043B

V-Belt

$42.99

$

In Stock, Qty 20+

0
