MZ 25 (965877201) - Husqvarna Zero-Turn Mower (2010-02) WHEELS & TIRES Parts Diagram

Zero-Turn Mower

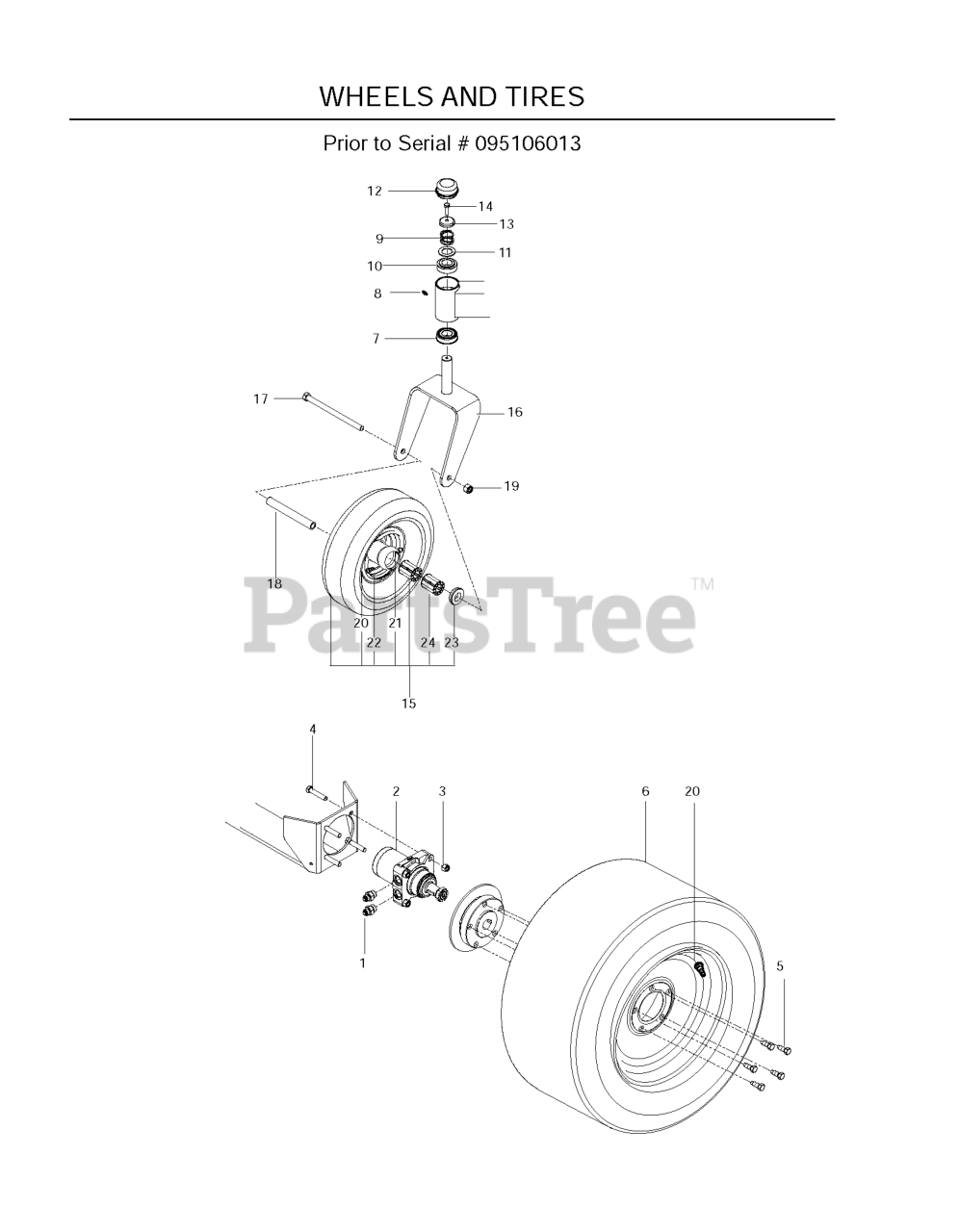

WHEELS & TIRES Parts Diagram

  • Title

1

Husqvarna 539101239

CONNECTOR, STRAIGHT
(Superseded to 539101237)

$12.99

$

In Stock, only 3 left!

0

18

Husqvarna 539102856

SPACER, CASTER

$18.99

$

In Stock, Qty 10

0

7

Husqvarna 539112660

BEARING FLANGED

$35.99

$

In Stock, Qty 19

0

19

Husqvarna 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$3.99

$

In Stock, Qty 20+

0

8

Husqvarna 539115638

ZERK, 3/16, DRIVE IN

$4.99

$

In Stock, Qty 13

0

6

Husqvarna 532140556

WHEEL.R.TS.23X10.5-12.C.MS

$278.99

$

Usually ships in 3-10 days

0

23

Husqvarna 539102484

BEARING RETAINER

$3.99

$

In Stock, Qty 20+

0

24

Husqvarna 539102485

ROLLER BEARING

$18.99

$

In Stock, Qty 7

0

10

Husqvarna 539117901

BUSHING, CASTER

$8.99

$

In Stock, Qty 20+

0

3

Husqvarna 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$3.99

$

In Stock, Qty 20+

0

14

Husqvarna 539990209

HCS 5/16C X 1

$3.49

$

Usually ships in 3-10 days

0

5

Husqvarna 532140080

HUB BOLT

$3.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539115749

CASTER.PLUG

$

$

Not available

11

Husqvarna 539115675

WASHER, 1.025 ID X 1.64

$

$

Not available

12

Husqvarna 539102535

GREASE CAP
(Superseded to 595281301)

$3.99

$

In Stock, Qty 20+

0

15

Husqvarna 539104572

TIRE.ASSEM.13X5-6.SMOOTH.SILVE

$

$

Not available

22

Husqvarna 539104573

RIM
(Superseded to 539104572)

$

$

Not available

2

Husqvarna 539114523

WHEEL MOTOR, TJ

$

$

Not available

20

Husqvarna 539912234

VALVE STEM TR-412

$6.49

$

In Stock, Qty 20+

0

9

Husqvarna 539115747

SPRING, CASTER

$

$

Not available

4

Husqvarna 539101332

HCS 1/2C X 2 3/4

$4.99

$

In Stock, only 4 left!

0

17

Husqvarna 539102855

SCREW 1/2C X 7 1/2 HEX CAP

$7.49

$

Usually ships in 3-10 days

0

16

Husqvarna 539131674

YOKE, CASTER

$

$

Not available

21

Husqvarna 539976997

ZERK 1/8 NPT

$3.99

$

Usually ships in 3-10 days

0
