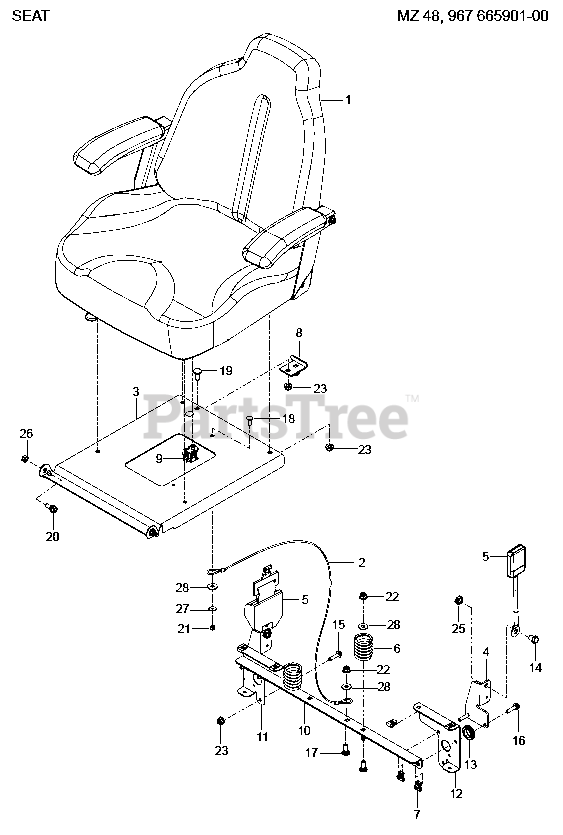

MZ 48 (967665901-00) - Husqvarna 48" Zero-Turn Mower (2017-02) SEAT Parts Diagram

48" Zero-Turn Mower

SEAT Parts Diagram

  • Title

1

Husqvarna 501580402

SEAT.ASM.907.TRACK.W/O.BELT

$727.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539103247

SEAT LANYARD

$21.99

$

In Stock, only 2 left!

0

3

Husqvarna 501762102

SUPPORT.SEAT.ORANGE
(Superseded to 596300901)

$75.99

$

Usually ships in 3-10 days

0

4

Husqvarna 584916802

MOUNT.SEAT.BELT.BLACK

$3.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539130359

Seat Belt, Retractable
(Superseded to 596322701)

$133.99

$

In Stock, only 1 left!

0

6

Husqvarna 587613301

SPRING.COMPRESSION.SEAT.BLACK

$6.49

$

In Stock, Qty 19

0

7

Husqvarna 539104763

U-CLIP 5/16-18 NUT RETAINER

$6.49

$

In Stock, Qty 15

0

8

Husqvarna 539130793

STOP, SEAT - BLACK
(Superseded to 539130794)

$4.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532421062

SWITCH.SNAPMOUNT.NC

$10.99

$

In Stock, Qty 16

0

10

Husqvarna 584809102

SUPPORT.SEAT. BLK

$24.99

$

Usually ships in 3-10 days

0

11

Husqvarna 584990102

SUPPORT.RT.BLK

$4.99

$

Usually ships in 3-10 days

0

12

Husqvarna 584990202

SUPPORT.LT.BLK

$4.99

$

In Stock, only 4 left!

0

13

Husqvarna 539105974

RUBBER GROMMET

$

$

Not available

14

Husqvarna 539112034

HCS 7/16-20 X .75 GD 5

$3.99

$

Usually ships in 3-10 days

0

15

Husqvarna 874490512

HHFS 5/16-18 X 3/4

$

$

Not available

16

Husqvarna 525544001

HHFS 5/16-18 X 1.25 TPBLT GD 5

$3.99

$

Usually ships in 3-10 days

0

17

Husqvarna 872140608

BOLT D
(Superseded to 872110608)

$3.99

$

In Stock, Qty 10

0

18

Husqvarna 872110406

BOLT
(Superseded to 582735501)

$4.99

$

Usually ships in 3-10 days

0

19

Husqvarna 872050506

RHSNB 5/16-18 X 3/4 GR5 BLK ZN
(Superseded to 539109100)

$4.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539130896

SB 5/16-18 HEX HD GD5, BLK ZN

$17.99

$

Usually ships in 3-10 days

0

21

Husqvarna 873800400

LOCKNUT.NYLOC.1/4-20
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

22

Husqvarna 521996501

NUT 3/8-16 HEX FLG NYLOC ZD

$

$

Not available

23

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$4.99

$

In Stock, Qty 12

0

24

Husqvarna 873800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

25

Husqvarna 539990394

NUT HEX 7/16F LOCK RP

$3.99

$

Usually ships in 3-10 days

0

26

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK

$3.99

$

Usually ships in 3-10 days

0

27

Husqvarna 819091216

WASHER PM

$

$

Not available

28

Husqvarna 819141614

WASHER 3/8 FLAT
(Superseded to 539990517)

$3.99

$

Usually ships in 3-10 days

0
