MZ 48 - Husqvarna 48" Zero-Turn Mower (Original) TRANSMISSION 2 Parts Diagram

48" Zero-Turn Mower

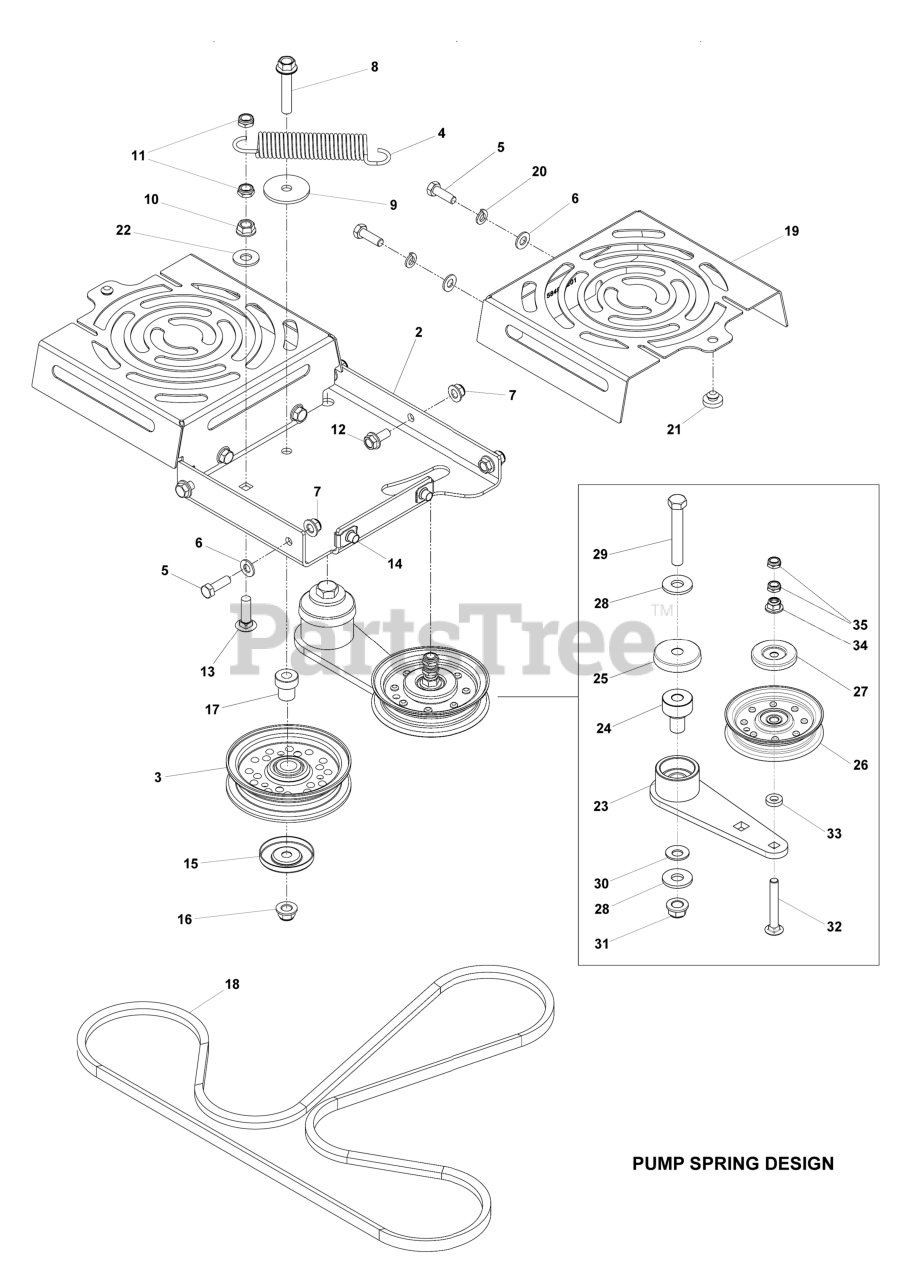

TRANSMISSION 2 Parts Diagram

  • Title

25

Husqvarna 539114662

SHIELD, DUST

$

$

Not available

29

Husqvarna 874780852

HCS 1/2-13 X 3-1/4 GD 5 ZD

$3.49

$

Usually ships in 3-10 days

0

33

Husqvarna 539109562

WASHER 3/8 X 3/4 X .187 TK

$4.99

$

In Stock, Qty 20+

0

27

Husqvarna 510254501

DUST SHIELD

$

$

Not available

11

Husqvarna 596230801

Nuts

$3.99

$

In Stock, Qty 20+

0

10

Husqvarna 596583501

Washers

$3.99

$

In Stock, only 1 left!

0

31

Husqvarna 521991101

NUT, 1/2-13 HEX FLG NYLOC ZD
(Superseded to 521991102)

$3.99

$

In Stock, Qty 20+

0

12

Husqvarna 592858702

Bolts

$3.99

$

Usually ships in 3-10 days

0

18

Husqvarna 574870901

BELT, HYDRO, 3400

$36.99

$

In Stock, Qty 20+

0

7

Husqvarna 594944401

NUT HEXAGON FLANGE 5/16-18 ST

$4.99

$

In Stock, Qty 12

0

21

Husqvarna 539102587

GROMMET, BUMPER

$4.99

$

In Stock, Qty 15

0

8

Husqvarna 596319401

Bolts

$2.49

$

In Stock, only 1 left!

0

4

Husqvarna 510254402

Springs

$4.99

$

In Stock, Qty 6

0

23

Husqvarna 510041603

ARM, IDLER, STEEL, W/BGS

$53.99

$

In Stock, only 4 left!

0

24

Husqvarna 510206301

PIVOT, BEARING

$6.49

$

In Stock, only 2 left!

0

19

Husqvarna 584994202

SHIELD FAN BLACK

$10.99

$

Usually ships in 3-10 days

0

2

Husqvarna 586670402

PLATE.PNT.IDLER.SUPPORT.E-DIP

$26.99

$

Usually ships in 3-10 days

0

30

Husqvarna 539115528

CONTACT BELLSPR 1/2

$3.99

$

In Stock, only 3 left!

0

5

Husqvarna 596580801

Bolts

$3.99

$

In Stock, Qty 10

0

20

Husqvarna 596238801

WASHER SPRING LOCK WASHER WITH

$3.99

$

In Stock, Qty 18

0

13

Husqvarna 595901101

Bolts

$3.99

$

Usually ships in 3-10 days

0

6

Husqvarna 596204101

WASHER 11/32 X 11/16 X 14 GA T

$3.99

$

In Stock, Qty 20+

0

26

Husqvarna 539107620

FLAT IDLER PULLEY
(Superseded to 532175820)

$

$

Not available

28

Husqvarna 819182212

WASHER.9/16 X 1 3/8 X 12 GA.

$

$

Not available

16

Husqvarna 521996502

GSPW Nuts

$3.99

$

In Stock, Qty 20+

0

34

Husqvarna 521996501

NUT 3/8-16 HEX FLG NYLOC ZD

$

$

Not available

14

Husqvarna 539104763

U-CLIP 5/16-18 NUT RETAINER

$6.49

$

In Stock, Qty 15

0

32

Husqvarna 539130235

RHSNB 3/8-16 X 2.75

$3.99

$

Usually ships in 3-10 days

0

22

Husqvarna 596433701

GSPW Washers

$3.99

$

In Stock, Qty 20+

0

35

Husqvarna 539200282

NUT HEX 3/8-16 NYLON, THIN

$

$

Not available

15

Husqvarna 510254502

SHIELD DUST

$3.99

$

In Stock, Qty 13

0

17

Husqvarna 525435601

PIVOT, IDLER

$8.99

$

In Stock, Qty 8

0

9

Husqvarna 596917301

Washers

$3.99

$

In Stock, Qty 8

0

3

Husqvarna 596739801

PULLEYS

$34.99

$

In Stock, only 2 left!

0
