MZ 54 (970455801-00) - Husqvarna 54" Zero-Turn Mower (2019-12) FRAME 12 Parts Diagram

54" Zero-Turn Mower

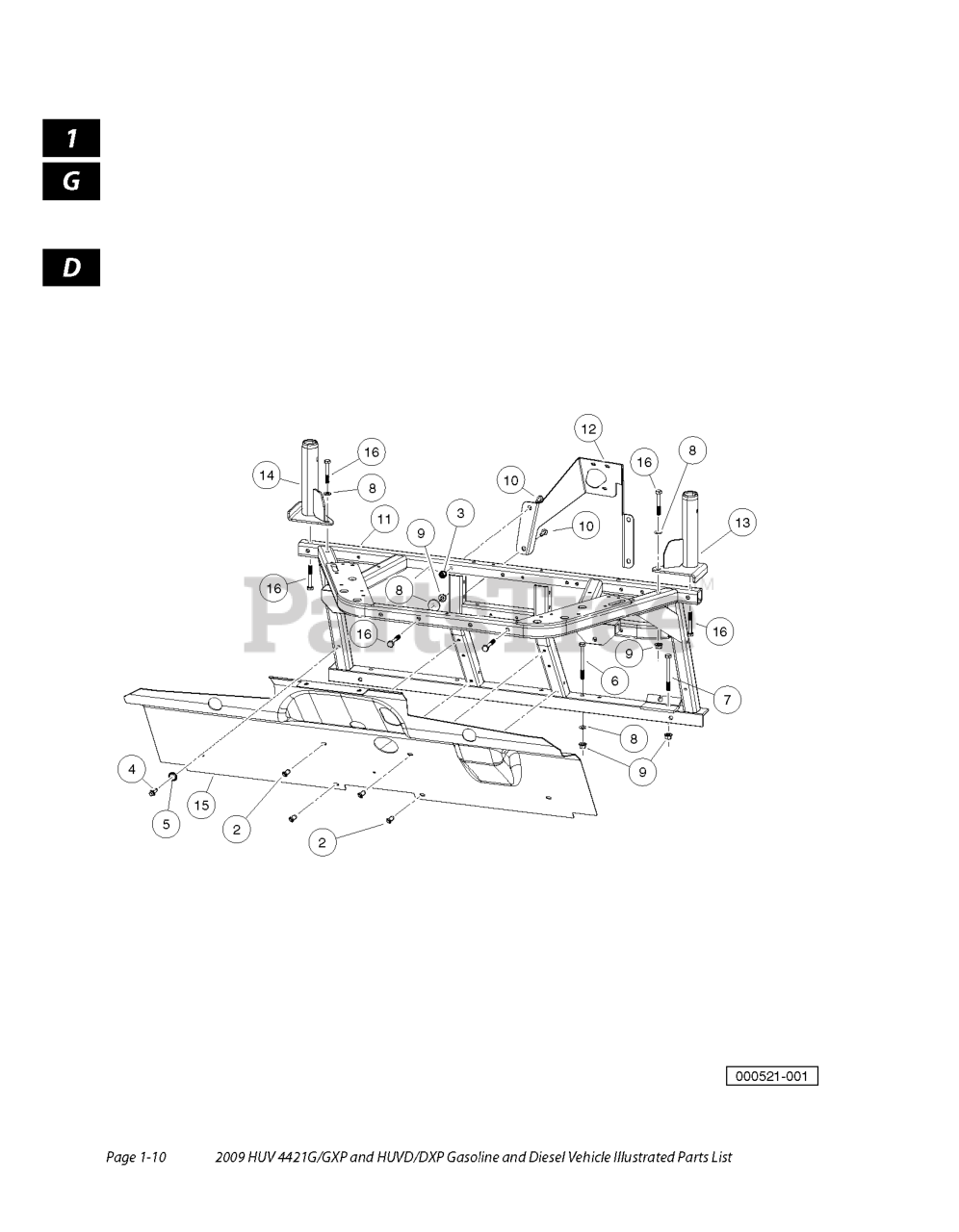

FRAME 12 Parts Diagram

  • Title

11

Husqvarna 603003433

WELDMENT, DASH, FRONT

$

$

Not available

1

NEEDS DESCRIPTION

Note: NOT AVAILABLE

$

$

Not available

10

Husqvarna 603001306

BOLT FLG, M8X1.25X65

$

$

Not available

13

Husqvarna 531308405

WELDMENT, FRT, BASE, ROPS, RH

Note: RH

$

$

Not available

5

Husqvarna 603003522

WASHER, FLAT, 3/8, BLK FIN

$

$

Not available

12

Husqvarna 603003434

BKT, COLUMN, STEERING

$

$

Not available

9

Husqvarna 603001300

NUT FLG M10 X 1.5 MECH DEF

$

$

Not available

7

Husqvarna 603003432

BOLT, M10 X 1.50 X 110 BLACK

$

$

Not available

3

Husqvarna 603000877

NUT, M8, ALL METAL LOCK

$

$

Not available

14

Husqvarna 531308404

WELDMENT, FRT, BASE, ROPS, LH

Note: LH

$

$

Not available

6

Husqvarna 603001173

BOLT,M10X1.50X100 BLACK

Note: BLACK

$

$

Not available

16

Husqvarna 603000448

BOLT, M10 X 1.50 X 65

$

$

Not available

8

Husqvarna 603001174

WASHER HARD, M10

$

$

Not available

2

Husqvarna 603000379

BLIND RIVET, PUSH TYPE

$

$

Not available

15

Husqvarna 603004407

GUARD, SPLASH, GAS INJECTION

$

$

Not available

4

Husqvarna 603003559

M8-1.25X20 TAPTITE

$

$

Not available
