MZ 5424 S (967003903-02) - Husqvarna 54" Zero-Turn Mower (2015-12) MOWER DECK / CUTTING DECK Parts Diagram

54" Zero-Turn Mower

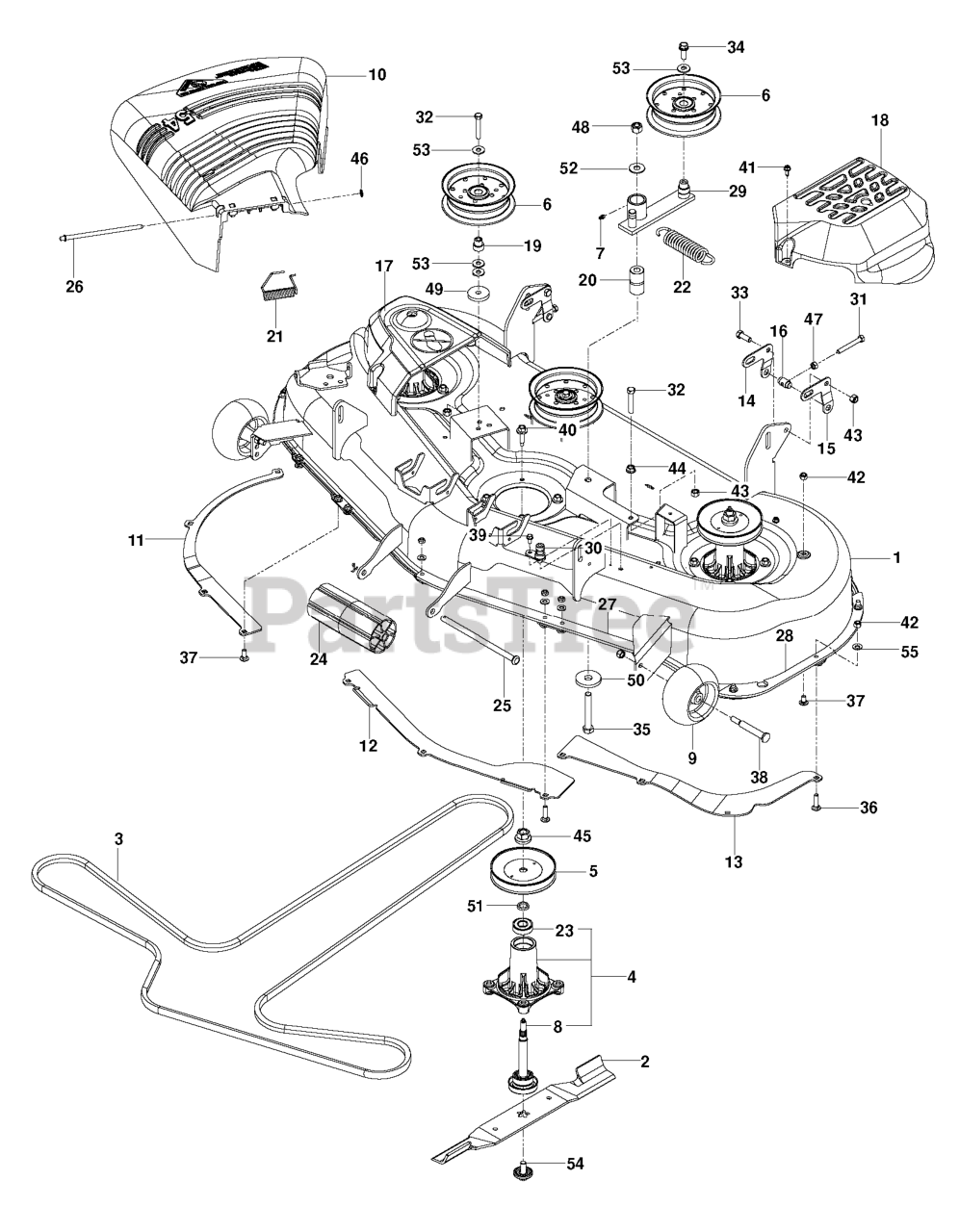

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

5

Husqvarna 539112171

PULLEY
(Superseded to 532173436)

$10.99

$

In Stock, Qty 20+

0

55

Husqvarna 819111116

WASHER
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

38

Husqvarna 532193406

BOLT.SHOULDER.3/8-16X3-5/8.
(Superseded to 596434404)

$3.49

$

In Stock, Qty 20+

0

28

Husqvarna 585322805

PLATE.REIN.SIDE.BOLT.54"X431

$

$

Not available

42

Husqvarna 873680500

LOCKNUT
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

47

Husqvarna 539990196

NUT 5/16C HEX

$1.49

$

Usually ships in 3-10 days

0

12

Husqvarna 532187607

BAFFLE CENTER 54" MOWER

$15.99

$

In Stock, Qty 15

0

27

Husqvarna 585322605

PLATE.REIN.FRONT.BOLT54"X431

$9.99

$

In Stock, only 2 left!

0

3

Husqvarna 577503601

BELT.DECK.EL=152.9

$133.99

$

In Stock, Qty 6

0

1

Husqvarna 577200203

DECK.SVC W/DECALS.54.MZ.ORANGE

Note: w/ SAFETY DECALS ORG

$853.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532187342

BAFFLE.RIGHT.54"

$12.99

$

Usually ships in 3-10 days

0

34

Husqvarna 539990582

4CS 3/8C X 1 SERRATED HEAD

$

$

Not available

26

Husqvarna 532131491

ROD.HINGE
(Superseded to 595297001)

$3.99

$

In Stock, Qty 20+

0

39

Husqvarna 539108461

BOLT 1/4-20 X 1/2 HWST

$4.99

$

In Stock, Qty 10

0

7

Husqvarna 539976998

ZERK
(Superseded to 596899901)

$2.49

$

In Stock, Qty 20+

0

4

Husqvarna 539112057

MANDREL GREASABLE
(Superseded to 587820301)

$44.99

$

In Stock, Qty 20+

0

37

Husqvarna 539990799

CARRIAGE BOLT 5/16C X 5/8"
(Superseded to 596039401)

$3.99

$

In Stock, Qty 20+

0

20

Husqvarna 539103427

PIVOT BUSHING

$7.49

$

In Stock, Qty 6

0

10

Husqvarna 532187257

DEFLECTOR.BLACK.54"

$80.99

$

In Stock, Qty 20+

0

25

Husqvarna 532179127

ROD.ROLLER.NOSE.NARROW.48"
(Superseded to 594092501)

$4.99

$

In Stock, Qty 20+

0

40

Husqvarna 532173984

SCREW, WASHER HEAD
(Superseded to 584953901)

$3.49

$

In Stock, Qty 20+

0

31

Husqvarna 586892501

SCREW.HCS 5/16-18 X 3 GR 5

$3.49

$

Usually ships in 3-10 days

0

41

Husqvarna 539107631

SCREW- 1/4-20 X 5/8
(Superseded to 532137729)

$4.99

$

In Stock, Qty 20+

0

2

Husqvarna 532187256

BLADE.BAGGING.54"
(Superseded to 594892901)

$23.99

$

In Stock, Qty 20+

0

46

Husqvarna 539107626

PUSH NUT
(Superseded to 532110452)

$3.99

$

In Stock, Qty 20+

0

14

Husqvarna 584859402

BRACKET.RT.PNT.MS431

$4.99

$

In Stock, only 1 left!

0

48

Husqvarna 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$3.99

$

In Stock, Qty 20+

0

13

Husqvarna 532187344

BAFFLE.LEFT.54"

$18.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539132728

PULLEY, IDLER
(Superseded to 589766102)

$29.99

$

In Stock, Qty 20+

0

9

Husqvarna 532133957

WHEEL GAGE DONUT

$13.99

$

In Stock, Qty 20+

0

23

Husqvarna 539112050

BEARING, BALL

$7.49

$

In Stock, Qty 20+

0

22

Husqvarna 539103256

SPRING

$12.99

$

In Stock, Qty 20+

0

45

Husqvarna 532400234

NUT.FLANGE.LOCK.TOP
(Superseded to 596134801)

$3.49

$

In Stock, Qty 20+

0

51

Husqvarna 532187690

WASHER.SPACER.MANDREL

$3.49

$

In Stock, Qty 20+

0

53

Husqvarna 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

35

Husqvarna 539103433

HCS 1/2C X 3 1/4

$4.99

$

In Stock, Qty 11

0

21

Husqvarna 532178102

SPRING, TORSION
(Superseded to 539107609)

$4.99

$

In Stock, Qty 20+

0

32

Husqvarna 874780632

CAP.SCREW.HEX.HD.3/8-16
(Superseded to 583614701)

$4.99

$

Usually ships in 3-10 days

0

24

Husqvarna 532176066

NOSE ROLLER 48"

$9.99

$

In Stock, Qty 20+

0

15

Husqvarna 584859404

BRACKET.LH.PNT.MS431

$4.99

$

In Stock, only 4 left!

0

30

Husqvarna 532415598

PORT.WASHOUT

$8.99

$

In Stock, Qty 20+

0

54

Husqvarna 532193003

BOLT.WASHER.ASM.7/16-2

$8.99

$

In Stock, Qty 20+

0

19

Husqvarna 539112076

IDLER BUSHING

$

$

Not available

44

Husqvarna 539990613

NUT 3/8C WHIZ

$3.99

$

Usually ships in 3-10 days

0

49

Husqvarna 539106504

SPINDLE WASHER

$

$

Not available

43

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

18

Husqvarna 532187297

COVER.MANDREL.LH.DECK.54"

$37.99

$

In Stock, Qty 10

0

52

Husqvarna 539990550

WASHER 1/2 FLAT

$3.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539112056

GREASABLE MANDREL SHAFT
(Superseded to 532187291)

$

$

Not available

50

Husqvarna 539102243

WASHER, SUPPORT

$

$

Not available

36

Husqvarna 539100472

BOLT, CARRIAGE 5/16X1-1/4

$3.99

$

In Stock, Qty 20+

0

29

Husqvarna 539112198

IDLER ARM

$121.99

$

In Stock, only 1 left!

0

33

Husqvarna 539990563

HCS 3/8-16X1.GRD.5.ZD

$1.49

$

Usually ships in 3-10 days

0

16

Husqvarna 539131859

TRUNION, PITCH

$

$

Not available

17

Husqvarna 532188187

COVER.MANDREL.RH.DECK.54"

$37.99

$

In Stock, only 1 left!

0
