MZ 6128 (966502301) - Husqvarna 61" Zero-Turn Mower (2009-10) Steering Parts Diagram

61" Zero-Turn Mower

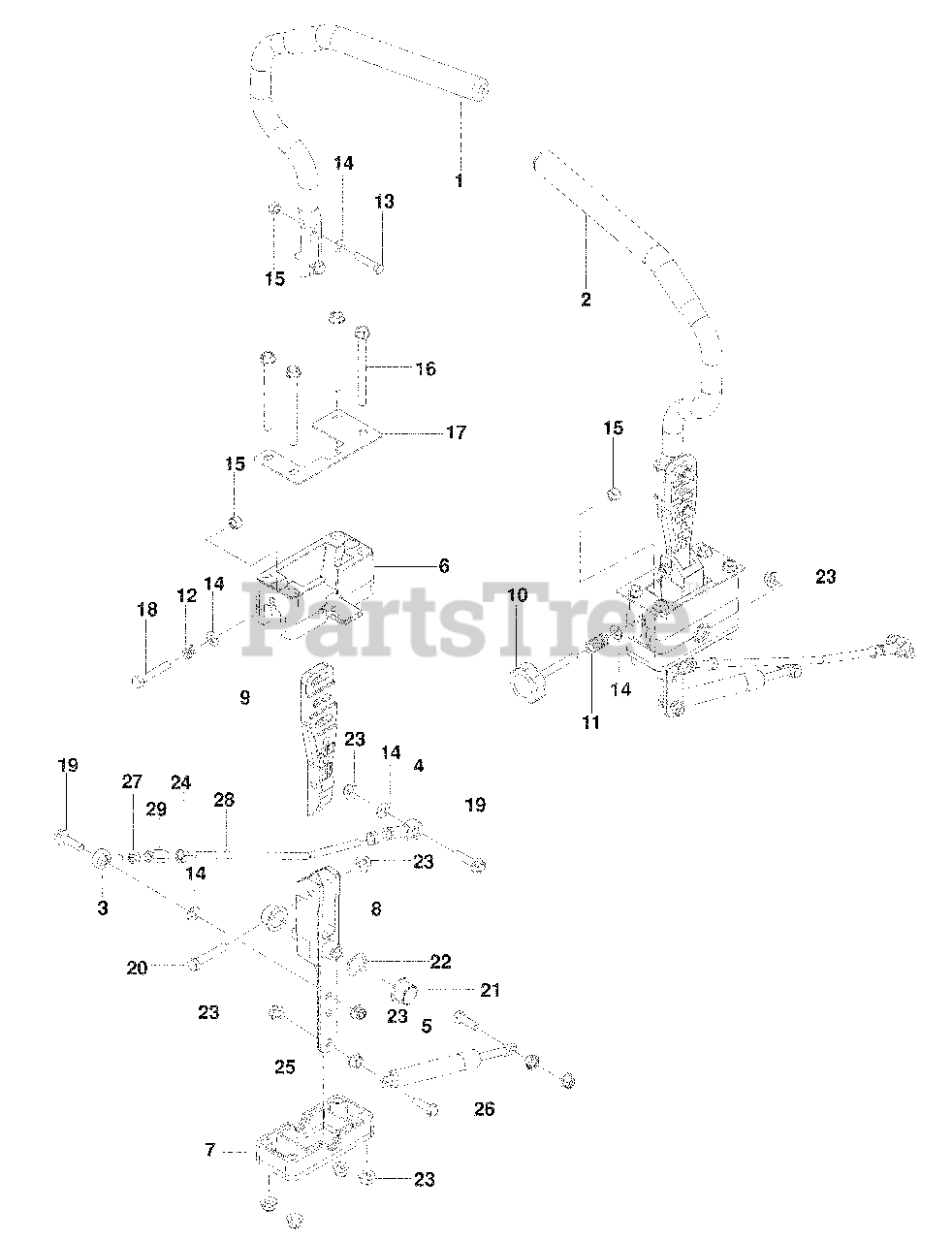

Steering Parts Diagram

  • Title

1

Husqvarna 539132009

LEVER, DRIVE w/ GRIP RT

$80.99

$

In Stock, Qty 18

0

2

Husqvarna 539132010

LEVER, DRIVE w/ GRIP LT

$80.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539116690

ROD END LH
(Superseded to 588692502)

$9.99

$

In Stock, Qty 11

0

4

Husqvarna 539115729

ROD END RH
(Superseded to 579764601)

$8.99

$

In Stock, Qty 6

0

5

Husqvarna 539102720

DAMPENER

$66.99

$

In Stock, Qty 15

0

6

Husqvarna 539131517

BLOCK, UPPER

$30.99

$

In Stock, only 1 left!

0

7

Husqvarna 539131519

BLOCK, LOWER

$15.99

$

Usually ships in 3-10 days

0

8

Husqvarna 522452901

PIVOT SECTION, DR CNTRL

$31.99

$

In Stock, Qty 20+

0

9

Husqvarna 539131521

MOUNT, DR CNTRL HANDLE
(Superseded to 576452801)

$40.99

$

In Stock, Qty 20+

0

10

Husqvarna 539131799

KNOB

$

$

Not available

11

Husqvarna 539101224

SPRING

$7.49

$

Usually ships in 3-10 days

0

12

Husqvarna 539102845

SPRING

$4.99

$

In Stock, only 3 left!

0

13

Husqvarna 539976935

BOLT, HEX 5/16-18 x 1 ½

$1.49

$

Usually ships in 3-10 days

0

14

Husqvarna 539990188

WASHER 5/16 SAE FLAT
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

15

Husqvarna 539990717

NUT 5/16-18 HEX NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

16

Husqvarna 539131780

SCREW, HX FLG 5/16-18 x 3¾

$3.99

$

Usually ships in 3-10 days

0

17

Husqvarna 575230002

PLATE, NEUTRAL STOP

$14.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539108394

BOLT 5/16-18 x 1¾ TPBLT

$3.99

$

Usually ships in 3-10 days

0

19

Husqvarna 525544001

HHFS 5/16-18 x 1¼ TPBLT

$3.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539990669

BOLT, HEX 5/16-18 x 1¾
(Superseded to 874780528)

$7.49

$

In Stock, only 4 left!

0

21

Husqvarna 539131518

BEARING, FLANGE

$10.99

$

In Stock, Qty 5

0

22

Husqvarna 539133007

WASHER .825, WAVE

$4.99

$

In Stock, Qty 10

0

23

Husqvarna 539112899

NUT 5/16-18 FLANGE NYLOC
(Superseded to 594944401)

$4.99

$

In Stock, Qty 12

0

24

Husqvarna 539990223

NUT 5/16-24 HEX

$3.99

$

Usually ships in 3-10 days

0

25

Husqvarna 539990585

NUT 5/16-18 HEX WHIZLK

$3.99

$

Usually ships in 3-10 days

0

26

Husqvarna 539990209

BOLT, HEX 5/16-18 x 1

$3.49

$

Usually ships in 3-10 days

0

27

Husqvarna 539991073

NUT 5/16-24 HEX JAM LH

$3.99

$

Usually ships in 3-10 days

0

28

Husqvarna 574811401

ROD, MOTION CONTROL

$14.99

$

Usually ships in 3-10 days

0

29

Husqvarna 539116689

COUPLER, ROD END

$

$

Not available
