MZ 7227 (968999719) - Husqvarna 72" Zero-Turn Mower (2008-03) IGNITION SYSTEM Parts Diagram

72" Zero-Turn Mower

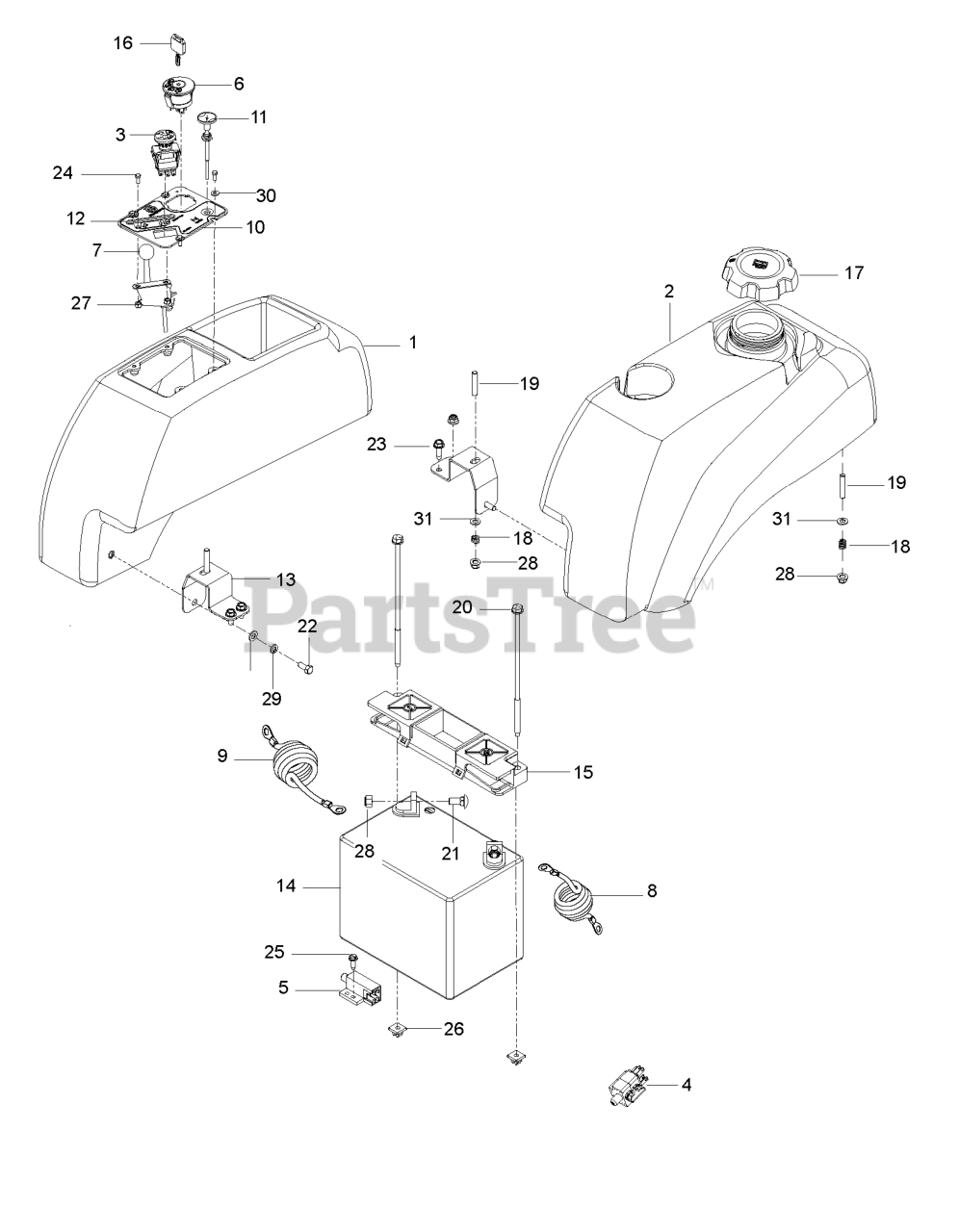

IGNITION SYSTEM Parts Diagram

  • Title

19

Husqvarna 539102502

STUD, 5/16C

$10.99

$

In Stock, Qty 5

0

23

Husqvarna 539113226

RP BLT 5/16-18 X 1 THRD FORM D
(Superseded to 593337201)

$3.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539101080

SWITCH, INTERLOCK

$7.49

$

In Stock, Qty 20+

0

21

Husqvarna 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

11

Husqvarna 539130209

CHOKE CONTROL
(Superseded to 539112439)

$34.99

$

In Stock, only 1 left!

0

2

Husqvarna 539104409

LEFT TANK W/CUP HOLDER

$302.99

$

Usually ships in 3-10 days

0

25

Husqvarna 539991034

SCREW #10 X 1/2 SELF TAPPING

$3.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539130393

FUEL CAP, HTC

$

$

Not available

10

Husqvarna 539131721

CONSOLE PLATE, BLACK

Note: PLATE

$11.99

$

Usually ships in 3-10 days

0

24

Husqvarna 539990411

HCS #10-24 X 1/2

$3.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539131671

SUPPORT, TANK, BLK

$34.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539107645

NEG. CABLE, 28"

$40.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539107544

KEY
(Superseded to 532140401)

$6.49

$

In Stock, Qty 20+

0

8

Husqvarna 539132413

POSITIVE CABLE, 46"

$18.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539131723

DECAL, CONSOLE

$

$

Not available

1

Husqvarna 539107593

FENDER CONSOLE

$157.99

$

Usually ships in 3-10 days

0

27

Husqvarna 539976977

NUT 10-24 NYLOC

$

$

Not available

31

Husqvarna 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

14

Husqvarna 539102436

BATTERY, 12 V 330 AMP
(Superseded to 579411601)

$

$

Not available

29

Husqvarna 539990187

WASHER.LOCK.HVY.HLCL.SPR.5/16
(Superseded to 596238801)

$3.99

$

In Stock, Qty 20+

0

30

Husqvarna 539105408

WASHER #10

$3.99

$

In Stock, Qty 12

0

22

Husqvarna 539976934

HCS 5/16C X 3/4
(Superseded to 596030501)

$3.99

$

In Stock, Qty 20+

0

3

Husqvarna 582107602

RP SWITCH.PTO.TERMINAL.STD.RED
(Superseded to 582107601)

$13.99

$

In Stock, Qty 20+

0

4

Husqvarna 539113792

SWITCH, BRAKE 3P

$12.99

$

In Stock, Qty 16

0

26

Husqvarna 539107629

PUSH NUT-NYLON

$4.99

$

In Stock, Qty 7

0

15

Husqvarna 539107628

BATTERY HOLD DOWN

$10.99

$

In Stock, only 4 left!

0

18

Husqvarna 539102845

SPRING

$4.99

$

In Stock, only 3 left!

0

6

Husqvarna 539107541

RP IGNITION SWITCH
(Superseded to 532175566)

$12.99

$

In Stock, Qty 20+

0

20

Husqvarna 539107632

BOLT - 1/4-20 X 7.5

$

$

Not available

28

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$4.99

$

In Stock, Qty 12

0

7

Husqvarna 539112438

THROTTLE CABLE

$

$

Not available
