MZ 7227 (968999719) - Husqvarna 72" Zero-Turn Mower (2008-03) SEAT Parts Diagram

72" Zero-Turn Mower

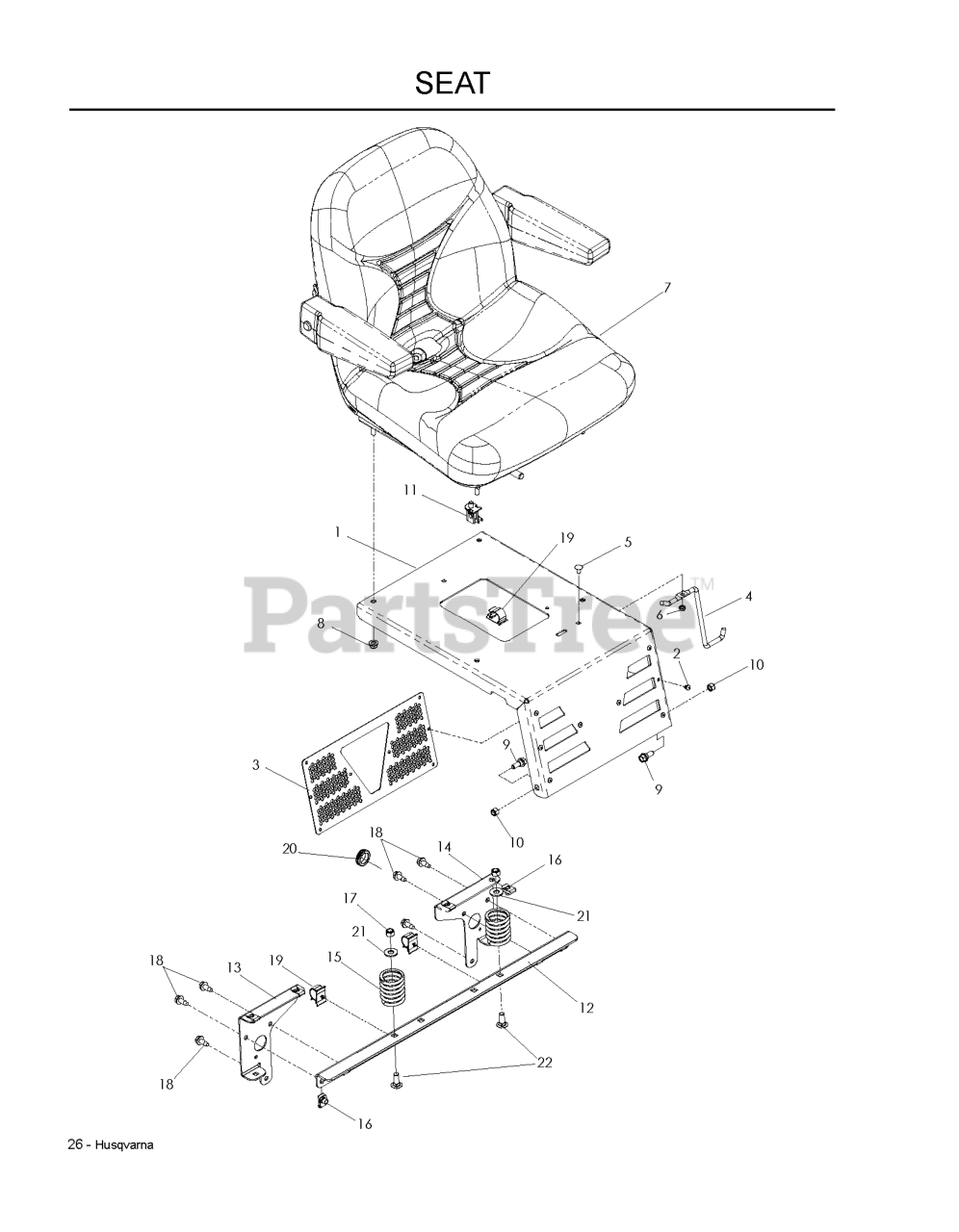

SEAT Parts Diagram

  • Title

9

Husqvarna 539130896

SB 5/16-18 HEX HD GD5, BLK ZN

$17.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539131656

SUPPORT, SEAT

$97.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539111777

RHSSNB 1/4-20 X 1/2

$3.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539108120

JAM NUT 1/4C (2 2 PW01)

$3.99

$

In Stock, only 2 left!

0

15

Husqvarna 539110300

SPRING, SEAT
(Superseded to 587613301)

$6.49

$

In Stock, Qty 19

0

13

Husqvarna 539131778

SUPPORT, LT

$17.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539990645

RHSNB 3/8C X 1

$3.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539104763

U-CLIP 5/16-18 NUT RETAINER

$6.49

$

In Stock, Qty 15

0

17

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

4

Husqvarna 539131899

STOP, SEAT, FORWQARD

$

$

Not available

2

Husqvarna 539132894

RIVET, 3/16" - .06-.25 GRIP

$

$

Not available

11

Husqvarna 539119741

SEAT SWITCH
(Superseded to 532421062)

$10.99

$

In Stock, Qty 16

0

18

Husqvarna 539107475

BOLT 5/16-18 X 3/4

$6.49

$

In Stock, Qty 5

0

20

Husqvarna 539105974

RUBBER GROMMET

$

$

Not available

10

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

14

Husqvarna 539131779

SUPPORT, RT

$17.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539131763

PANEL, HEX

$26.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539130873

SEAT
(Superseded to 539112281)

$

$

Not available

19

Husqvarna 539110815

PUSH-MOUNT WIRE CLIP

$3.49

$

In Stock, only 1 left!

0

1

Husqvarna 539132745

SEAT MOUNT W/DECAL

$42.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$4.99

$

In Stock, Qty 12

0
