MZM 2200 KH (7084304) - Snapper Zero-Turn Mower, 22hp Kohler Footrest Assembly Parts Diagram

Zero-Turn Mower, 22hp Kohler

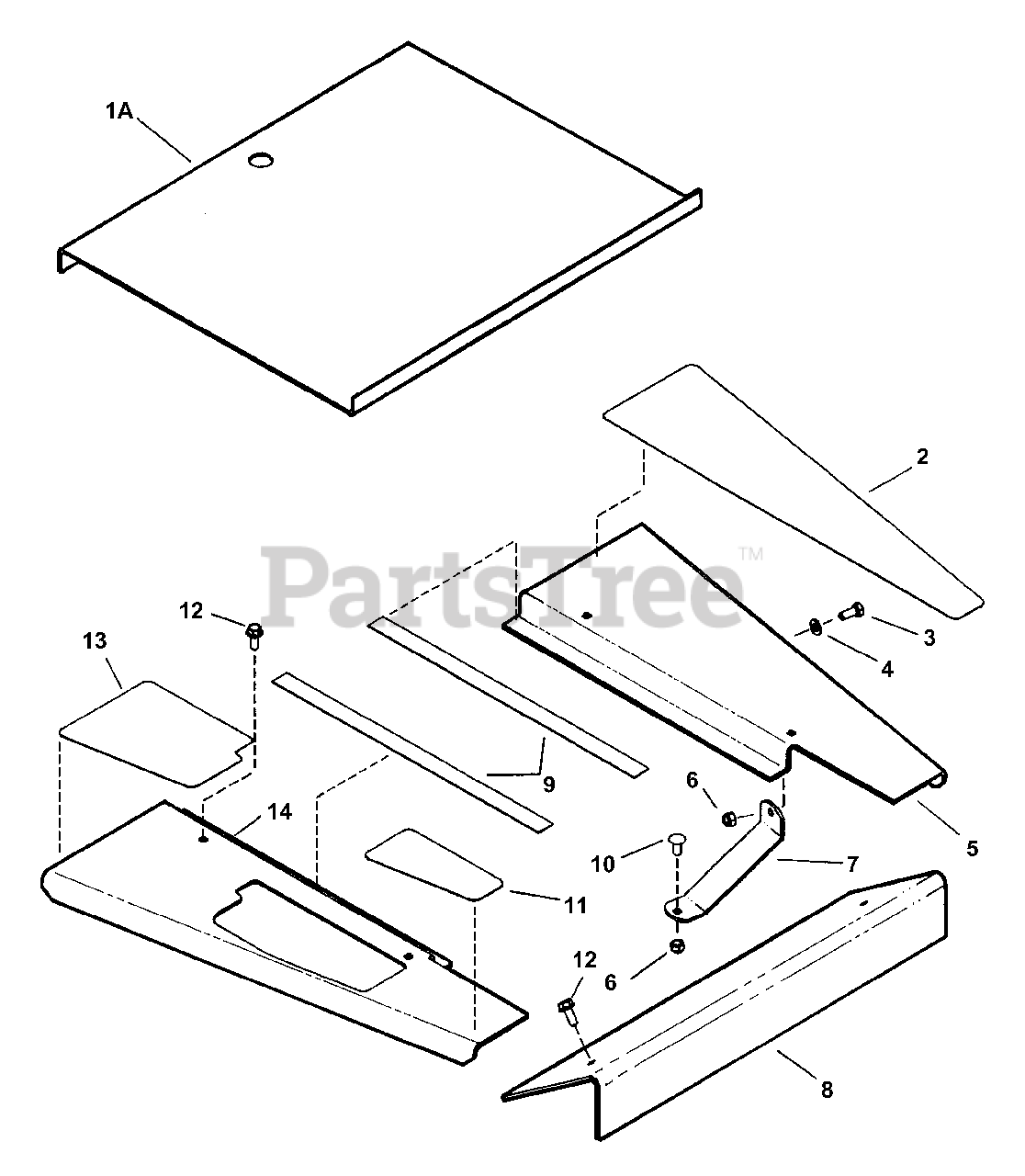

Footrest Assembly Parts Diagram

  • Title

1A

Snapper Pro 7046727

BRACKET, Floor Pan
(Superseded to 7046727YP)

$102.99

$

In Stock, only 1 left!

0

2

Snapper Pro 7043843

PAD Left Hand Friction

$

$

Not available

3

Snapper Pro 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, Qty 6

0

4

Snapper Pro 7090188

WASHER, 11/32" Flat Lock

Note: Was 91296

$

$

Not available

5

Snapper Pro 7043795

BRACKET, Left Hand Footrest
(Superseded to 7043795YP)

$99.99

$

Usually ships in 2-12 days

0

6

Snapper Pro 5025057

NUT, 5/16-18 HEX NYLON LOCK
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

7

Snapper Pro 7043800

BRACE, Left Hand Footrest

$

$

Currently unavailable

8

Snapper Pro 7046730

BRACKET, Footrest

$67.99

$

Usually ships in 2-12 days

0

9

Snapper Pro 7044867

PAD, Floor Pan Trim

$

$

Currently unavailable

10

Snapper Pro 7091508

BOLT, 5/16-18 x 3/4" Carriage Short Neck Grade 5

$

$

Not available

11

Snapper Pro 7044905

PAD, Right Hand Front Friction
(Superseded to 7044905YP)

$5.99

$

Usually ships in 2-12 days

0

12

Snapper Pro 7091541

SCREW, 5/16-18 x 3/4" Hex Self Tapping

$

$

Not available

13

Snapper Pro 7043842

PAD, Right Hand Rear Friction
(Superseded to 7043842YP)

$10.99

$

Usually ships in 2-12 days

0

14

Snapper Pro 7043794

BRACKET, Footrest (Right Hand)
(Superseded to 7043794YP)

$67.99

$

Usually ships in 2-12 days

0
