MZT 52 BF (967177003) - Husqvarna 52" Zero-Turn Mower (2013-01) FRAME Parts Diagram

52" Zero-Turn Mower

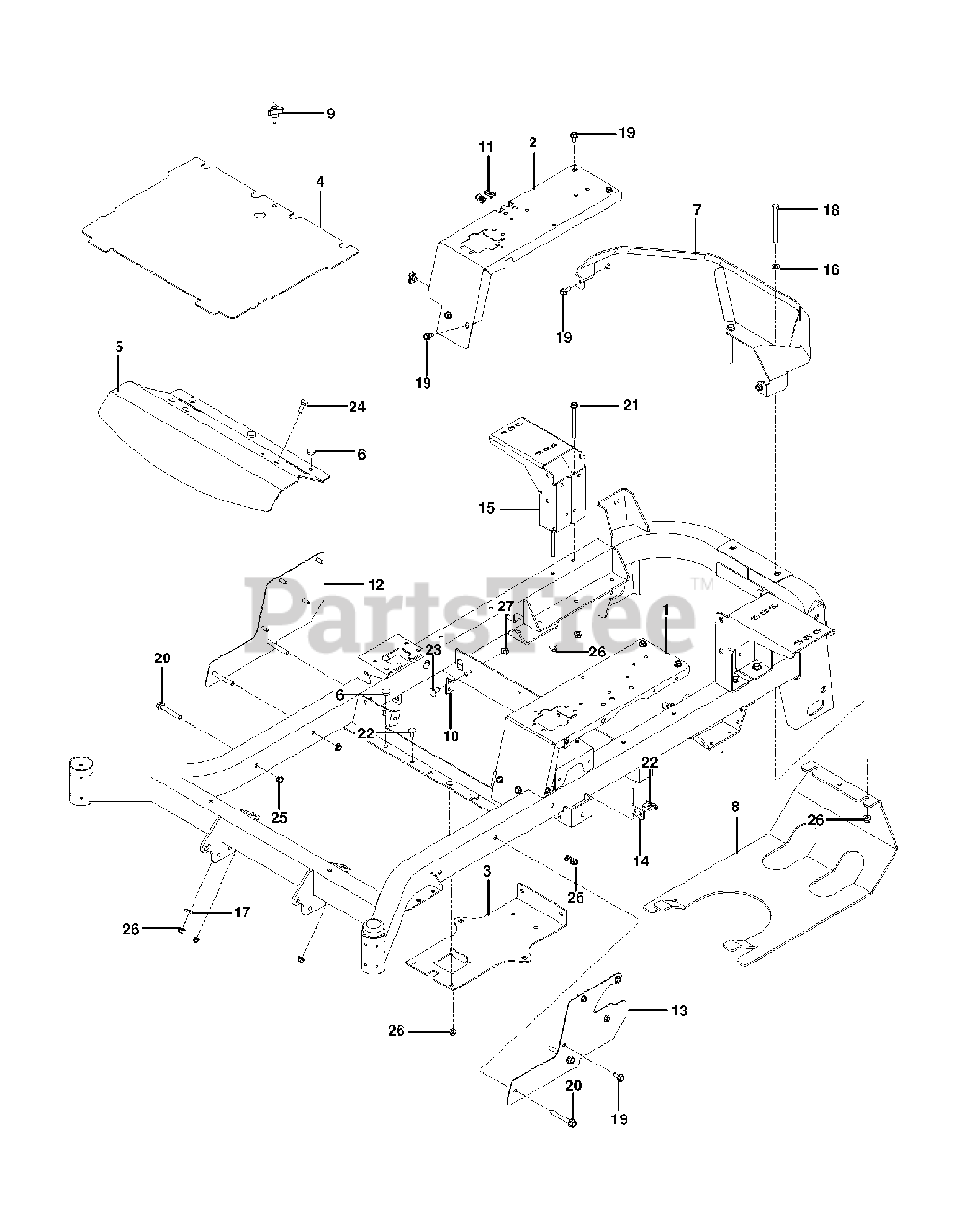

FRAME Parts Diagram

  • Title

1

Husqvarna 577256802

PANEL.FILLER.LT.ORANGE

Note: LT ORG

$39.99

$

In Stock, only 1 left!

0

2

Husqvarna 577256902

PANEL.FILLER.RT.ORANGE

Note: RT ORG

$102.99

$

Usually ships in 3-10 days

0

3

Husqvarna 575017202

PLATE, BATTERY, BLACK

Note: ORG

$60.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539132744

PLATE, FLOOR W/DECALS

$241.99

$

In Stock, only 1 left!

0

5

Husqvarna 539132380

PLATE, FOOTREST

$113.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539102587

GROMMET, BUMPER

$4.99

$

In Stock, Qty 15

0

7

Husqvarna 575348402

GUARD, REAR MZ, GRAY

$241.99

$

Usually ships in 3-10 days

0

8

Husqvarna 521921805

GUARD SKID PNT 498

Note: GREY

$102.99

$

In Stock, only 1 left!

0

9

Husqvarna 539104411

KNOB W/STUD
(Superseded to 597783101)

$2.49

$

In Stock, Qty 20+

0

10

Husqvarna 575245202

BRACKET.DAMPENER.BLACK

Note: BLK

$10.99

$

In Stock, Qty 5

0

11

Husqvarna 539104763

U-CLIP 5/16-18 NUT RETAINER

$6.49

$

In Stock, Qty 15

0

12

Husqvarna 577259801

SIDE LEFT BLACK

Note: BLK

$

$

Not available

13

Husqvarna 577259701

SIDE RIGHT BLACK
(Superseded to 586560201)

Note: BLK

$14.99

$

Usually ships in 3-10 days

0

14

Husqvarna 505256401

STOP, DECK, EZ+

$10.99

$

Usually ships in 3-10 days

0

15

Husqvarna 575533602

MOUNT, TANK, ZT BLK

Note: BLK

$74.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

17

Husqvarna 539109554

WASH USS FLAT 1/2

$

$

Not available

18

Husqvarna 539102335

HCS 5/16C X 4

$3.99

$

Usually ships in 3-10 days

0

19

Husqvarna 525464701

HHFS 5/16-18 X 3/4

$3.99

$

In Stock, only 3 left!

0

20

Husqvarna 539131781

HHFS 3/8-16 X 2 3/4

$4.99

$

In Stock, only 2 left!

0

21

Husqvarna 539131780

HHFS 5/16-18 X 3 3/4

$3.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

23

Husqvarna 539109117

RHSNB 3/8-16 X 3/4 GR 5 BLK ZN

$3.99

$

Usually ships in 3-10 days

0

24

Husqvarna 539990208

RHSNB 5/16C X 1

$3.99

$

Usually ships in 3-10 days

0

25

Husqvarna 539200282

NUT HEX 3/8-16 NYLON, THIN

$

$

Not available

26

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$4.99

$

In Stock, Qty 12

0

27

Husqvarna 521996501

NUT 3/8-16 HEX FLG NYLOC ZD

$

$

Not available
