MZT 61 BF (967177010-01) - Husqvarna 61" Zero-Turn Mower (2015-06) SEAT Parts Diagram

61" Zero-Turn Mower

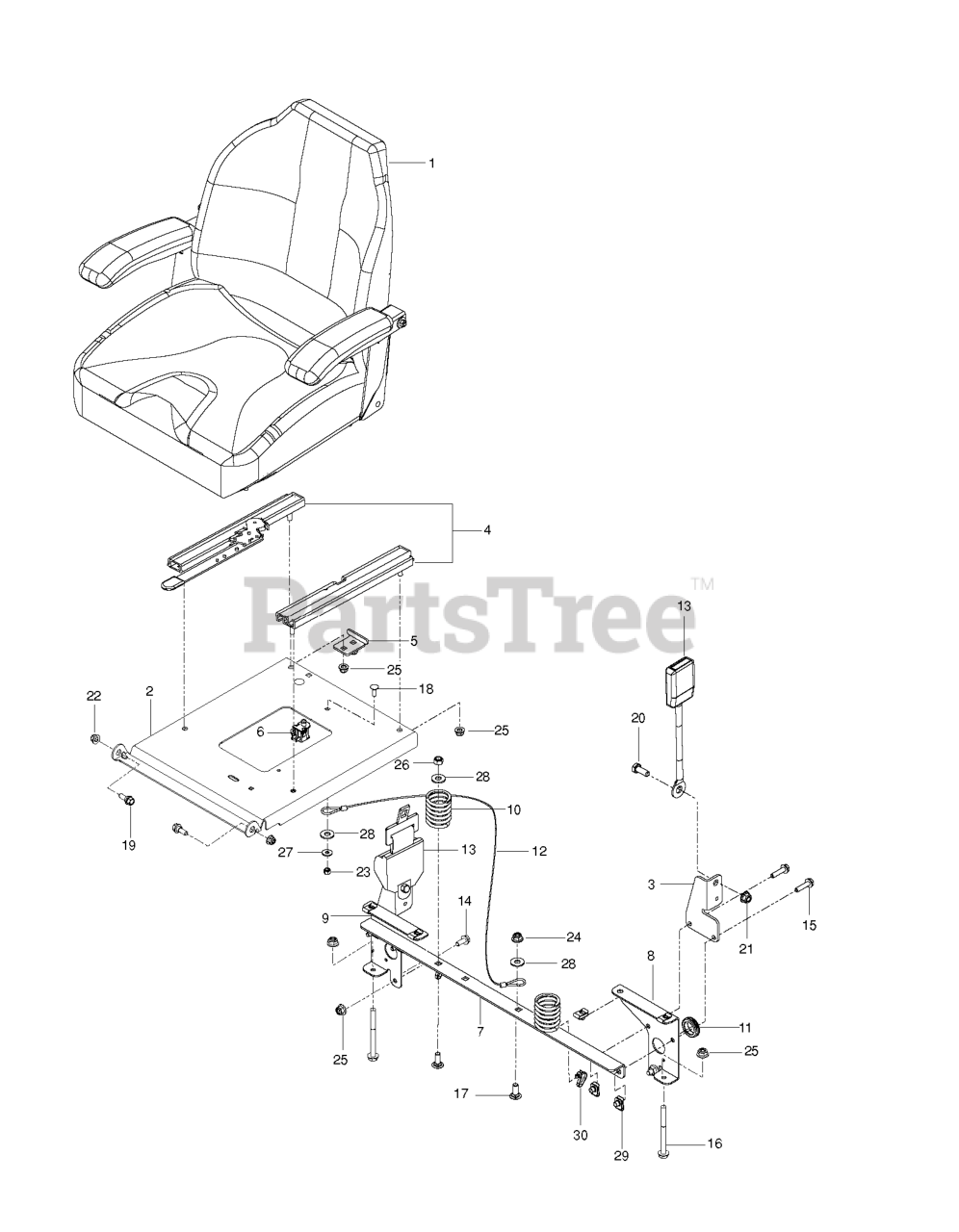

SEAT Parts Diagram

  • Title

27

Husqvarna 819091216

WASHER PM

$

$

Not available

9

Husqvarna 575224102

SUPPORT, LT, BLK

$36.99

$

Usually ships in 3-10 days

0

25

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$4.99

$

In Stock, Qty 12

0

7

Husqvarna 539131656

SUPPORT, SEAT

$97.99

$

Usually ships in 3-10 days

0

1

Husqvarna 576702001

SEAT.907.VINYL.HUSQVARNA
(Superseded to 501580402)

$727.99

$

Usually ships in 3-10 days

0

8

Husqvarna 575224002

SUPPORT, RT, BLK

$42.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539105974

RUBBER GROMMET

$

$

Not available

5

Husqvarna 539130793

STOP, SEAT - BLACK
(Superseded to 539130794)

$4.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539124775

SCREW 7/16-20 X 1 HHB GR5

$6.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539119741

SEAT SWITCH
(Superseded to 532421062)

$10.99

$

In Stock, Qty 16

0

14

Husqvarna 525464701

HHFS 5/16-18 X 3/4

$3.99

$

In Stock, only 3 left!

0

30

Husqvarna 505280001

TIE WRAP, 8-3/8", W/CLIP

$3.99

$

Usually ships in 3-10 days

0

24

Husqvarna 521996501

NUT 3/8-16 HEX FLG NYLOC ZD

$

$

Not available

2

Husqvarna 586867802

SUPPORT.PNT.SEAT.ORANGE
(Superseded to 596300901)

$75.99

$

Usually ships in 3-10 days

0

28

Husqvarna 819141614

RP WASHER 3/8 FLAT
(Superseded to 539990517)

$3.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539130896

SB 5/16-18 HEX HD GD5, BLK ZN

$17.99

$

Usually ships in 3-10 days

0

16

Husqvarna 874490560

BOLT.HEX.FLNG.5/16-18X3.75
(Superseded to 583613301)

$6.49

$

Usually ships in 3-10 days

0

10

Husqvarna 532124181

SPRING COMPRESSION
(Superseded to 587613301)

$6.49

$

In Stock, Qty 19

0

22

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK

$3.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539130359

SEAT BELT, RETRACTABLE
(Superseded to 596322701)

$133.99

$

In Stock, only 1 left!

0

23

Husqvarna 873800400

LOCKNUT.NYLOC.1/4-20
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

17

Husqvarna 872140608

BOLT D
(Superseded to 872110608)

$3.99

$

In Stock, Qty 10

0

12

Husqvarna 539103247

SEAT LANYARD

$21.99

$

In Stock, only 2 left!

0

26

Husqvarna 873800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

3

Husqvarna 584916802

MOUNT.SEAT.BELT.BLACK

$3.99

$

Usually ships in 3-10 days

0

18

Husqvarna 872110406

BOLT
(Superseded to 582735501)

$4.99

$

Usually ships in 3-10 days

0

29

Husqvarna 539104763

U-CLIP 5/16-18 NUT RETAINER

$6.49

$

In Stock, Qty 15

0

15

Husqvarna 525544001

HHFS 5/16-18 X 1.25 TPBLT GD 5

$3.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539990394

NUT HEX 7/16F LOCK RP

$3.99

$

Usually ships in 3-10 days

0
