NV730EKC48 - Exmark 48" Navigator Front Mount Mower, Kohler ECV730 EFI (SN: 313000000 - 313999999) (2013) Park Brake Assembly Parts Diagram

48" Navigator Front Mount Mower, Kohler ECV730 EFI

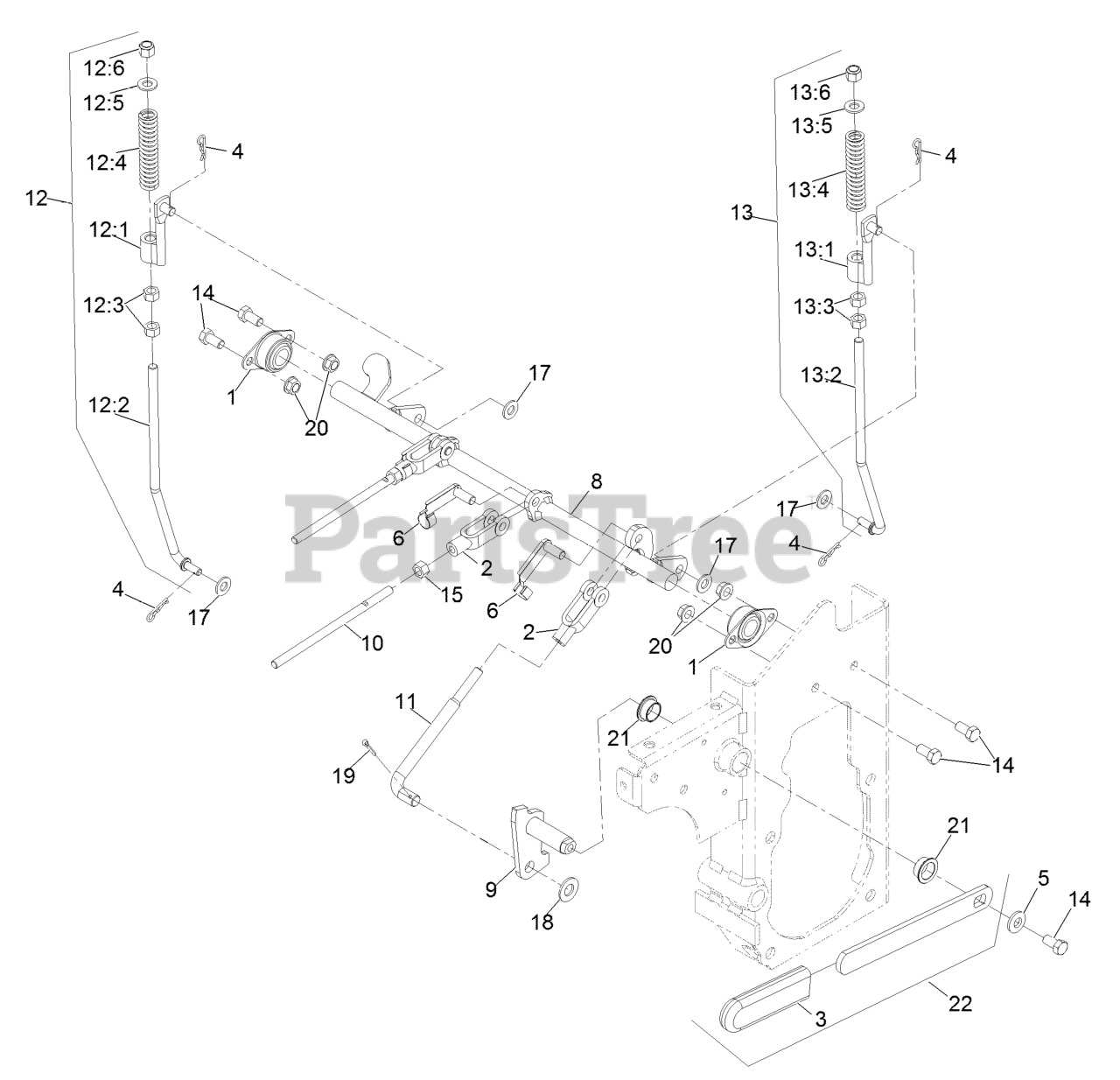

Park Brake Assembly Parts Diagram

  • Title

1

Exmark 1-633102

BEARING-FLANGE, SIDE

$18.99

$

In Stock, Qty 9

0

2

Exmark 1-633131

YOKE-LINKAGE, BRAKE

$15.99

$

In Stock, only 2 left!

0

3

Exmark 1-633268

GRIP-LEVER

$14.99

$

In Stock, Qty 20+

0

4

Exmark 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

5

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

6

Exmark 103-2399

PIN-SPRING, CLEVIS

$6.49

$

In Stock, Qty 20+

0

8

Exmark 116-7483-03

SHAFT-BRAKE

$82.99

$

Usually ships in 3-6 days

0

9

Exmark 116-7486

PIVOT-BRAKE

$41.99

$

Usually ships in 3-6 days

0

10

Exmark 116-7838

ROD-LINKAGE, BRAKE

$15.99

$

Usually ships in 3-6 days

0

11

Exmark 116-8474

ROD-LINKAGE, BRAKE

$32.99

$

Usually ships in 3-6 days

0

12

Exmark 116-9748

RH BRAKE LINKAGE ASM

$79.99

$

Usually ships in 3-6 days

0

12:1

Exmark 116-8467

BRAKE LINKAGE ASM

$31.99

$

Usually ships in 3-6 days

0

12:2

Exmark 116-8465

LINK-BRAKE, RH

$45.99

$

Usually ships in 3-6 days

0

12:3

Exmark 3219-3

NUT-HEX

$1.99

$

In Stock, Qty 20+

0

12:4

Exmark 116-8470

SPRING-COMPRESSION

$9.49

$

Usually ships in 3-6 days

0

12:5

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

12:6

Exmark 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

13

Exmark 116-9749

LH BRAKE LINKAGE ASM

$79.99

$

Usually ships in 3-6 days

0

13:1

Exmark 116-8467

BRAKE LINKAGE ASM

$31.99

$

Usually ships in 3-6 days

0

13:2

Exmark 116-8464

LINK-BRAKE, LH

$45.99

$

Usually ships in 3-6 days

0

13:3

Exmark 3219-3

NUT-HEX

$1.99

$

In Stock, Qty 20+

0

13:4

Exmark 116-8470

SPRING-COMPRESSION

$9.49

$

Usually ships in 3-6 days

0

13:5

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

13:6

Exmark 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

14

Exmark 323-4

SCREW-HH

$3.99

$

In Stock, Qty 19

0

15

Exmark 3219-3

NUT-HEX

$1.99

$

In Stock, Qty 20+

0

17

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

18

Exmark 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

19

Exmark 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

20

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

21

Exmark 108519

BUSHING-BRONZE

$15.99

$

In Stock, Qty 6

0

22

Exmark 103-9469

PARK BRAKE HANDLE ASM

$45.99

$

Usually ships in 3-6 days

0
