NVS740CKC42000 - Exmark 42" Navigator Front Mount Mower, Kohler CH740 (SN: 402082300 - 404314158) (2018) Parking Brake Assembly Parts Diagram

42" Navigator Front Mount Mower, Kohler CH740

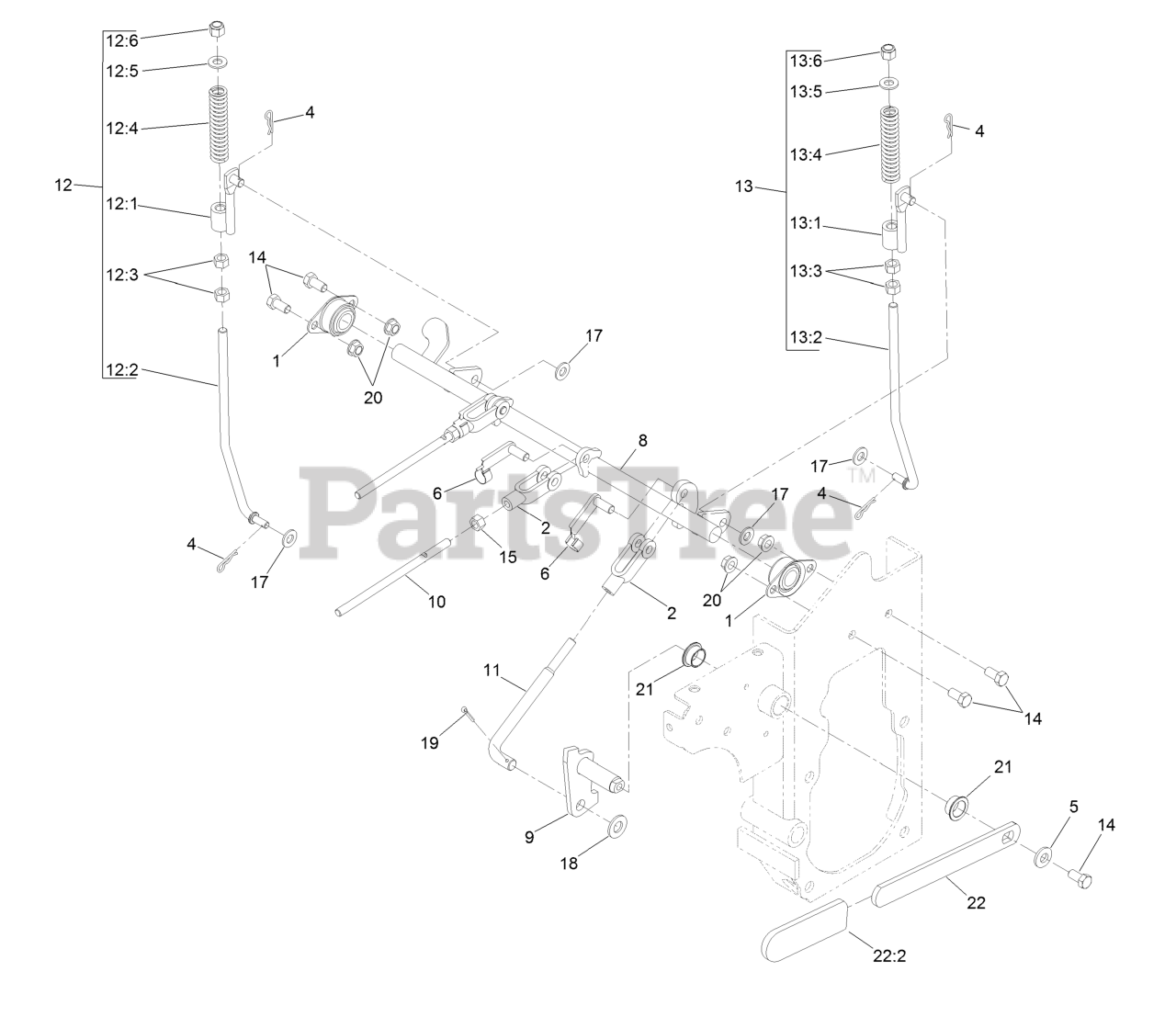

Parking Brake Assembly Parts Diagram

  • Title

1

Exmark 1-633102

Bearing-Flange, Side

$18.99

$

In Stock, Qty 9

0

2

Exmark 1-633131

Yoke-Linkage, Brake

$15.99

$

In Stock, only 2 left!

0

4

Exmark 1-806003

Pin-Cotter

$1.49

$

In Stock, Qty 20+

0

5

Exmark 98-5975

Washer-Belleville

$3.49

$

In Stock, Qty 20+

0

6

Exmark 103-2399

Pin-Spring, Clevis

$6.49

$

In Stock, Qty 20+

0

8

Exmark 116-7483-03

Shaft-Brake

$82.99

$

Usually ships in 3-6 days

0

9

Exmark 116-7486

Pivot-Brake

$41.99

$

Usually ships in 3-6 days

0

10

Exmark 116-7838

Rod-Linkage, Brake

$15.99

$

Usually ships in 3-6 days

0

11

Exmark 116-8474

Rod-Linkage, Brake

$32.99

$

Usually ships in 3-6 days

0

12

Exmark 116-9748

RH Brake Linkage ASM

$79.99

$

Usually ships in 3-6 days

0

12:1

Exmark 116-8467

Brake Linkage ASM

$31.99

$

Usually ships in 3-6 days

0

12:2

Exmark 116-8465

Link-Brake, RH

$45.99

$

Usually ships in 3-6 days

0

12:3

Exmark 3219-3

Nut-Hex

$1.99

$

In Stock, Qty 20+

0

12:4

Exmark 116-8470

Spring-Compression

$9.49

$

Usually ships in 3-6 days

0

12:5

Exmark 3256-24

Washer-Flat

$0.99

$

In Stock, Qty 20+

0

12:6

Exmark 3296-6

Nut-Lock

$1.99

$

In Stock, Qty 20+

0

13

Exmark 116-9749

LH Brake Linkage ASM

$79.99

$

Usually ships in 3-6 days

0

13:1

Exmark 116-8467

Brake Linkage ASM

$31.99

$

Usually ships in 3-6 days

0

13:2

Exmark 116-8464

Link-Brake, LH

$45.99

$

Usually ships in 3-6 days

0

13:3

Exmark 3219-3

Nut-Hex

$1.99

$

In Stock, Qty 20+

0

13:4

Exmark 116-8470

Spring-Compression

$9.49

$

Usually ships in 3-6 days

0

13:5

Exmark 3256-24

Washer-Flat

$0.99

$

In Stock, Qty 20+

0

13:6

Exmark 3296-6

Nut-Lock

$1.99

$

In Stock, Qty 20+

0

14

Exmark 323-4

Screw-HH

$3.99

$

In Stock, Qty 19

0

15

Exmark 3219-3

Nut-Hex

$1.99

$

In Stock, Qty 20+

0

17

Exmark 3256-24

Washer-Flat

$0.99

$

In Stock, Qty 20+

0

18

Exmark 3256-26

Washer-Flat

$0.99

$

In Stock, Qty 20+

0

19

Exmark 3272-10

Pin-Cotter

$1.49

$

In Stock, Qty 20+

0

20

Exmark 3290-357

Nut-HHF, Whiz

$0.99

$

In Stock, Qty 20+

0

21

Exmark 108519

Bushing-Bronze

$15.99

$

In Stock, Qty 6

0

22

Exmark 103-9469

Park Brake Handle ASM

$45.99

$

Usually ships in 3-6 days

0

22:2

Exmark 1-633268

Grip-Lever

$14.99

$

In Stock, Qty 20+

0
