NX-90V (2691527-02) - Snapper 21" Walk-Behind Mower Engine & Blade Group Parts Diagram

21" Walk-Behind Mower

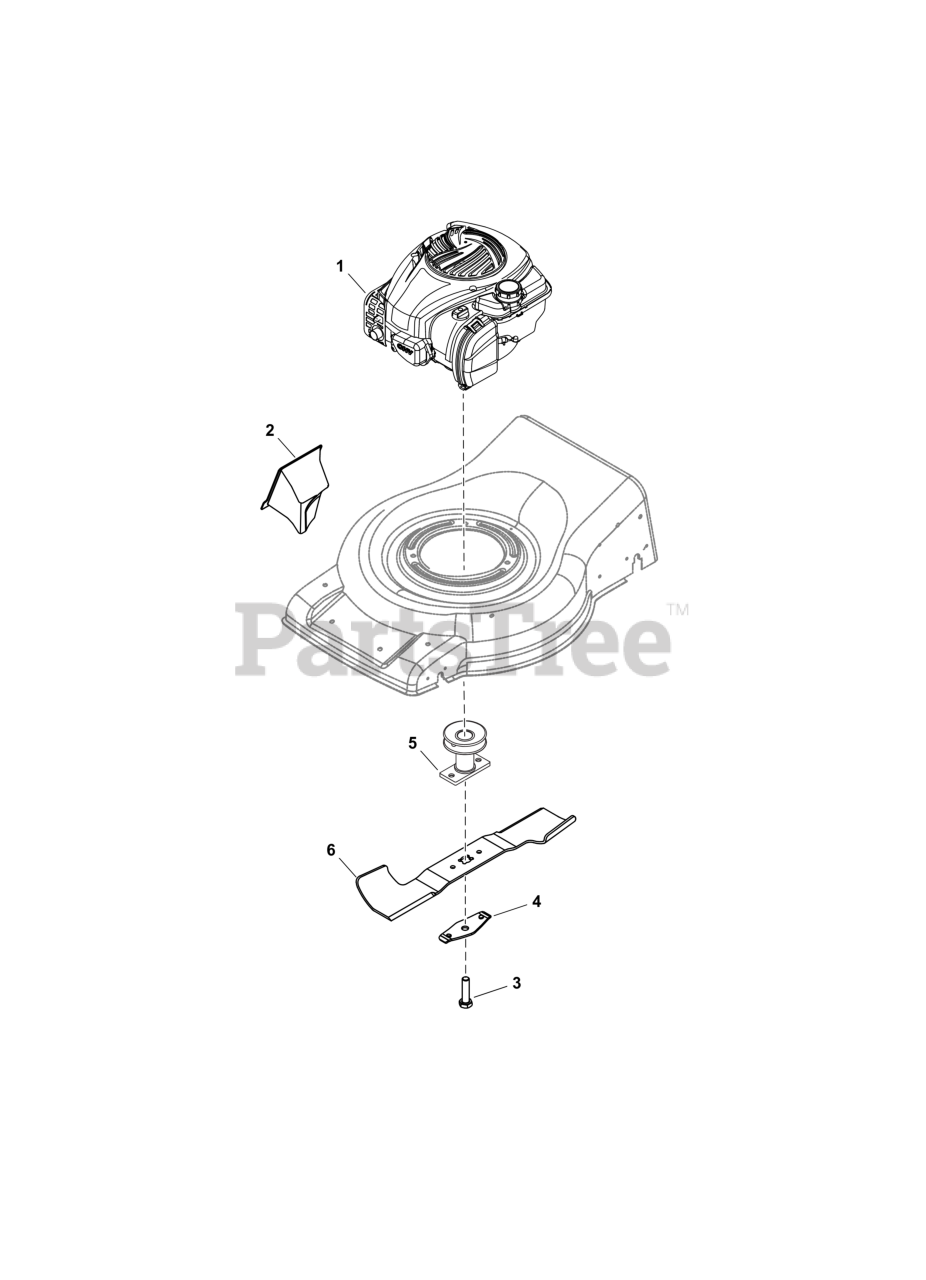

Engine & Blade Group Parts Diagram

  • Title

1

*ENGINE, Briggs & Stratton, Mod. 125P02-0056-H5

Note: (Not Serviceable)

$

$

Not available

2

Snapper 84007719

MULCH PLUG

$

$

Currently unavailable

3

Snapper 704785

SCREW Hex, 3/8-24 x 1-1/2

$

$

Currently unavailable

4

Snapper 703520

SUPPORT, Blade Bell

$11.99

$

In Stock, Qty 9

0

5

Snapper 84002587

BLADE ADAPTER

$

$

Currently unavailable

6

Snapper 84007718

BLADE

$

$

Currently unavailable
