NZM 25613 KWV (7800022) - Snapper 61" Zero-Turn Mower, 25hp Kawasaki DRIVE TIRE & WHEEL ASSEMBLY Parts Diagram

61" Zero-Turn Mower, 25hp Kawasaki

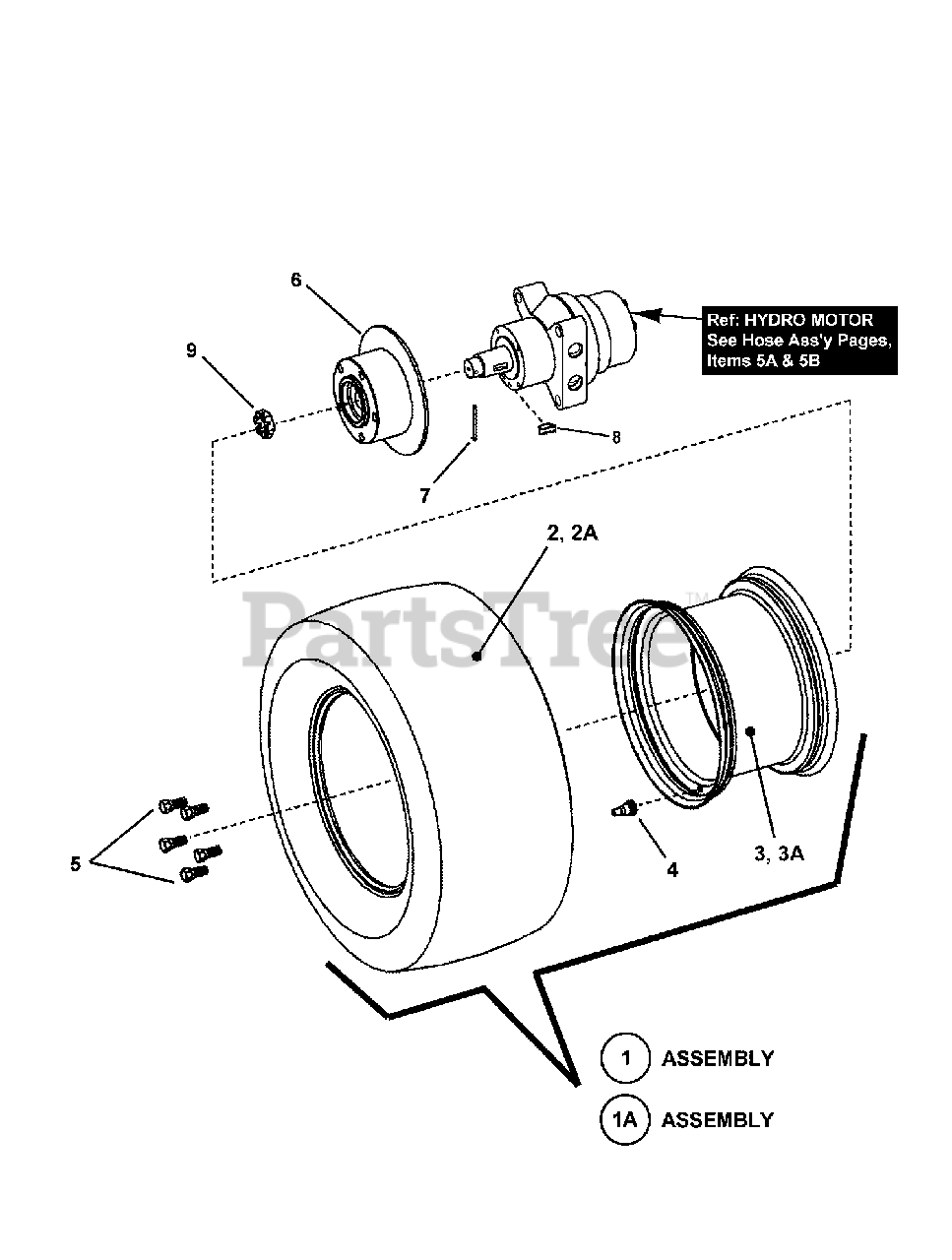

DRIVE TIRE & WHEEL ASSEMBLY Parts Diagram

  • Title

1

Snapper 7072796

ASSY, Wheel 23 x 10.50-12 (Incl. items 2, 3 & 4)

Note: used on 48" & 52" Deck Models

$

$

Not available

1A

Snapper 7072797

ASSY, Wheel 24 x 12-12 (Incl. items 2A, 3A & 4)
(Superseded to 7072797YP)

Note: used on Series 61" Deck Models

$396.99

$

Usually ships in 2-12 days

0

2

Snapper 7100296

TIRE, 23 x 10.50-12NHS 4Pr Turf Master TL
(Superseded to 7100296YP)

$265.99

$

Usually ships in 2-12 days

0

2A

Snapper 7100298

TIRE, 24 x 12-12HHS 49R Turf Master
(Superseded to 7100298YP)

$267.99

$

Usually ships in 2-12 days

0

3

Snapper 7100295

RIM, 12 x 7.00 5/4.5 AG Silver 237

$

$

Currently unavailable

3A

Snapper 7100297

RIM, 12 x 8.50 5/4.5 RAW

$

$

Not available

4

Snapper 7012234

AIR VALVE STEM & Cap
(Superseded to 7012234SM)

Note: Goodyear # TR-412 or equivalent

$6.49

$

In Stock, only 2 left!

0

5

Snapper 7092073

LUG BOLT, 1/2-20 UNF x 7/8"
(Superseded to 7092073YP)

$5.49

$

Usually ships in 2-12 days

0

6

Snapper 7071819

DRUM, Brake (Ausco)
(Superseded to 7600098YP)

$902.99

$

Usually ships in 2-12 days

0

7

Snapper 7091793

PIN, 9/64 x 1-1/2" Cotter
(Superseded to 7091793YP)

Note: included as part of wheel motor

$2.99

$

Usually ships in 2-12 days

0

8

Snapper 7013861

KEY, #11 Woodruff
(Superseded to 7013861YP)

Note: included as part of wheel motor

$3.49

$

In Stock, Qty 7

0

9

Snapper 7091828

NUT, 3/4-20 Slotted Hex

Note: included as part of wheel motor

$

$

Not available
