NZM 25613 KWV (7800022) - Snapper 61" Zero-Turn Mower, 25hp Kawasaki ELECTRICAL COMPONENTS Parts Diagram

61" Zero-Turn Mower, 25hp Kawasaki

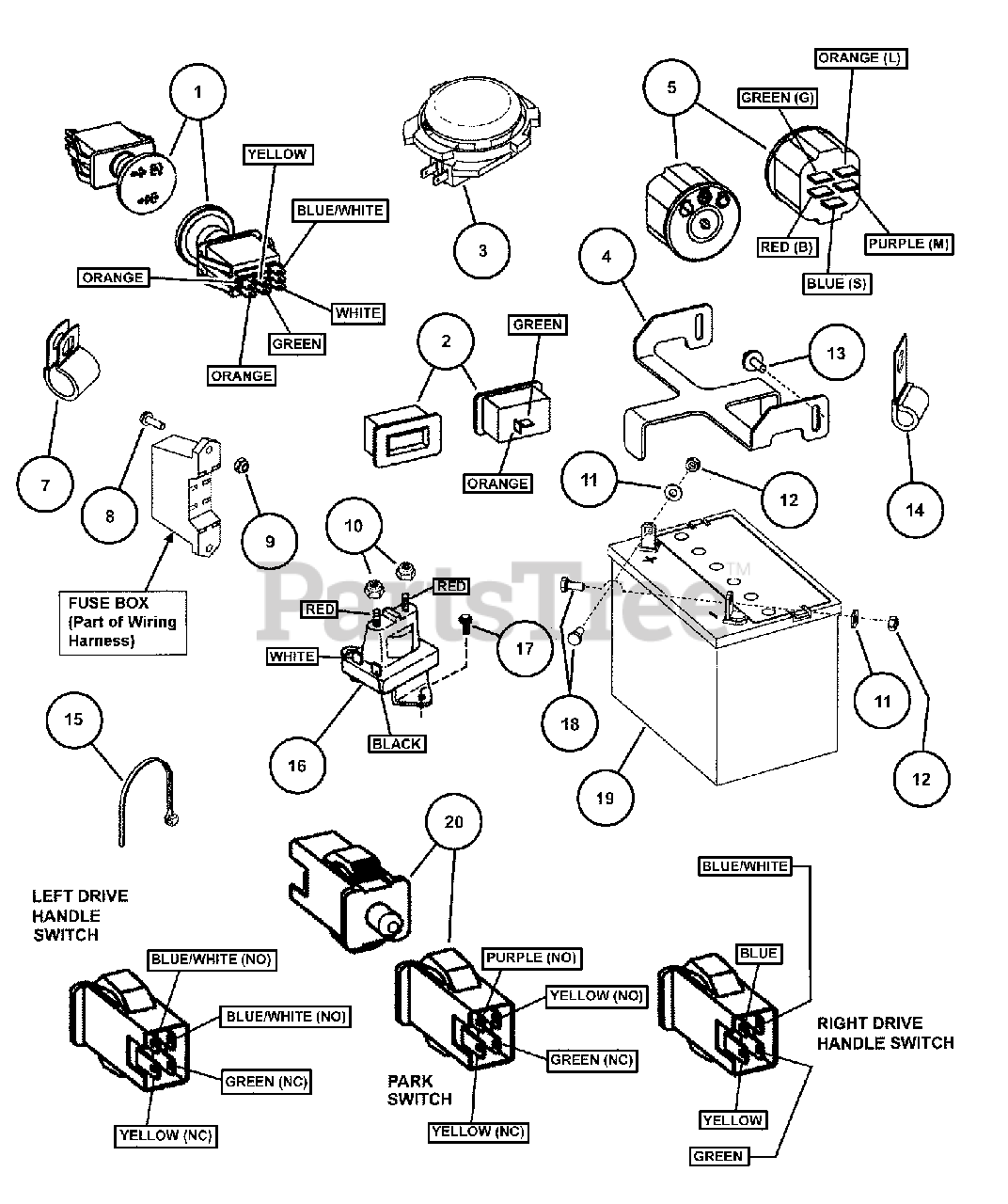

ELECTRICAL COMPONENTS Parts Diagram

  • Title

1

Snapper 7075132

SWITCH, PTO, Yellow
(Superseded to 1722887SM)

Note: also shown on CONTROL PANEL ASSEMBLY page

$33.99

$

In Stock, Qty 18

0

2

Snapper 7074796

HOUR METER w/Flash Alerts
(Superseded to 1731184SM)

Note: Sendec Corp. Model No. 804-204 (also shown on CONTROL PANEL page)

$64.99

$

In Stock, only 2 left!

0

3

Snapper 7023354

SWITCH, Seat, NC
(Superseded to 7023354YP)

Note: also shown on SEAT ASSEMBLY page

$12.99

$

Usually ships in 2-12 days

0

4

Snapper 7074809

BRACKET, Battery Hold-Down
(Superseded to 7074809YP)

$30.99

$

Usually ships in 2-12 days

0

5

Snapper 7072684

SWITCH, Ignition
(Superseded to 7072684YP)

$31.99

$

In Stock, only 1 left!

0

6

Snapper 7073406

KEY SET (not shown)
(Superseded to 1717163SM)

Note: qty. 2 keys per set

$8.99

$

In Stock, Qty 12

0

7

Snapper 7015861

CLIP, Harness
(Superseded to 7015861SM)

$3.49

$

Usually ships in 2-12 days

0

8

Snapper 7091240

SCREW, #10-32 x 5/8" Hex Washer Self-Tap
(Superseded to 7091240YP)

$4.99

$

In Stock, only 1 left!

0

9

Snapper 7090376

NUT, #10-32 Hex Nyloc
(Superseded to 703937)

$3.49

$

Usually ships in 2-12 days

0

10

Snapper 5025095

NUT, 1/4-20 HEX NYLON LOCK
(Superseded to 5025095SM)

$3.49

$

In Stock, Qty 11

0

11

Snapper 7091294

WASHER, 1/4" Flat
(Superseded to 703332)

$4.49

$

In Stock, Qty 10

0

12

Snapper 7090372

NUT, 1/4-20 Hex Center Lock
(Superseded to 703954)

$

$

Not available

13

Snapper 7090741

SCREW, 1/4-20 x 5/8" Hex Head Self-Tap
(Superseded to 703054)

Note: or 7091016 (w/loose washer)

$4.49

$

In Stock, only 2 left!

0

14

Snapper 7035638

CLIP, Open 3/8" Cushioned
(Superseded to 7035638YP)

Note: shown on Rear Frame & Tank Bracket page & Seat Assembly page

$3.49

$

Usually ships in 2-12 days

0

15

Snapper 7012080

CABLE TIE, 7" Long (not shown)
(Superseded to 7012080SM)

$4.99

$

Usually ships in 2-12 days

0

16

Snapper 7075622

SOLENOID, Super Trombetta
(Superseded to 1755382YP)

Note: vendor p/n 762-1221-210 (used on Kawasaki only)

$29.99

$

In Stock, Qty 7

0

17

Snapper 7090539

SCREW, 1/4-20 x 1/2" Hex Washer Self-Tap
(Superseded to 704130)

Note: or 7091122

$3.99

$

In Stock, Qty 20+

0

18

Snapper 7090072

SCREW, 1/4-20 x 5/8" Hex Head Cap GR 5
(Superseded to 001X38MA)

$4.49

$

In Stock, Qty 20+

0

19

Snapper 7075911

BATTERY, 11 Plate 375CCA- Wet

$

$

Not available

20

Snapper 7022886

SWITCH, DP NO/NC Snap-In
(Superseded to 7022886YP)

$14.99

$

In Stock, Qty 20+

0
