NZM 27612 KH (7085676) - Snapper 61" Zero-Turn Mower, 27hp Kohler TWIN STICK CONTROL ASSEMBLY (R.H.) Parts Diagram

61" Zero-Turn Mower, 27hp Kohler

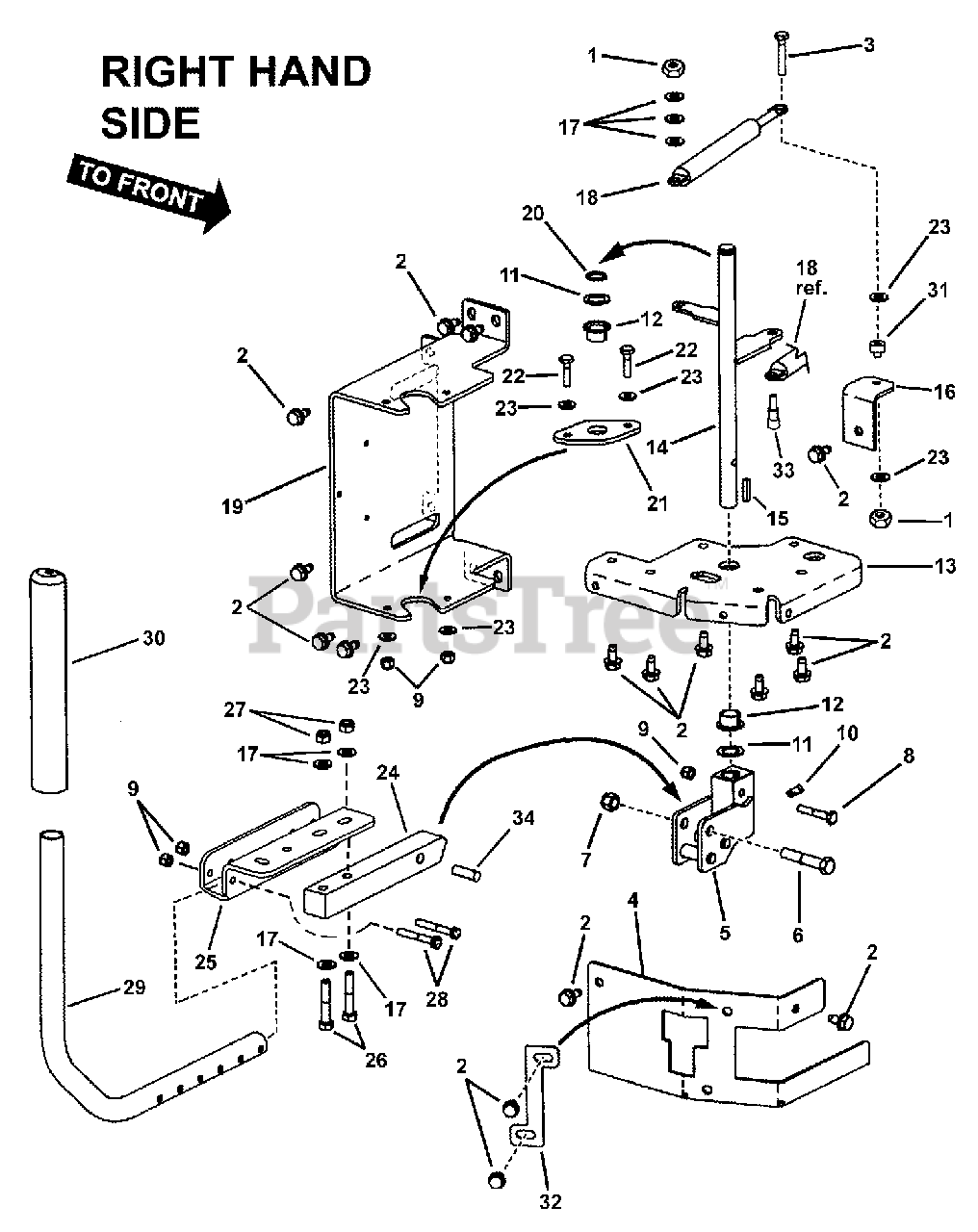

TWIN STICK CONTROL ASSEMBLY (R.H.) Parts Diagram

  • Title

1

Snapper Pro 7090372

NUT, 1/4-20 Hex Center Lock

$

$

Not available

2

Snapper Pro 7090361

SCREW, 5/16-18 x 5/8" Hex Washer Self-Tap
(Superseded to 703949)

$3.99

$

In Stock, Qty 18

0

3

Snapper Pro 7091814

SCREW, 1/4-20 x 1-1/4" Hex Head Cap
(Superseded to 7091814SM)

$3.99

$

Usually ships in 2-12 days

0

4

Snapper Pro 7074669

LIMITER BRACKET, Right Hand
(Superseded to 7074669YP)

$41.99

$

Usually ships in 2-12 days

0

5

Snapper Pro 7059101

WELDMENT, Mounting Hub
(Superseded to 7059101YP)

$103.99

$

Usually ships in 2-12 days

0

6

Snapper Pro 5025013X16

BOLT, 3/8-16 X 2, GD5, CZ
(Superseded to 80003522)

Note: Was 90588 or 91305

$4.49

$

In Stock, only 4 left!

0

7

Snapper Pro 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, only 2 left!

0

8

Snapper Pro 7079577

SCREW, 1/4-20 x 1-1/2" Hex Head Cap GR 5

$

$

Not available

9

Snapper Pro 5025095

NUT, 1/4-20 HEX NYLON LOCK
(Superseded to 5025095SM)

$3.49

$

In Stock, Qty 11

0

10

Snapper Pro 7092018

SET SCREW, 5/16-18 Square Head w/Patch

$2.99

$

Usually ships in 2-12 days

0

11

Snapper Pro 7091628

WASHER, .64 I.D. x .99 O.D. x .05 Flat
(Superseded to 7091628SM)

$4.49

$

In Stock, Qty 5

0

12

Snapper Pro 7072934

BUSHING, Teflon Impregnated

$7.99

$

Usually ships in 2-12 days

0

13

Snapper Pro 7074164

BUSHING MOUNT PLATE, Right Hand
(Superseded to 7074164YP)

$64.99

$

Usually ships in 2-12 days

0

14

Snapper Pro 7044982

WELDMENT, Cross Rod, RH

$

$

Not available

15

Snapper Pro 7074910

KEY, 3/16" Square x 7/8" Long

$

$

Not available

16

Snapper Pro 7074672

BRACKET, Dampener Frame
(Superseded to 7074672YP)

$10.99

$

Usually ships in 2-12 days

0

17

Snapper Pro 7090188

WASHER, 5/16" Flat

$

$

Not available

18

Snapper Pro 7075031

CYLINDER, Dampener
(Superseded to 7075031YP)

$

$

Not available

19

Snapper Pro 7075264

CHANNEL, Mounting

Note: replaces 74016

$

$

Not available

20

Snapper Pro 7010739

RING, 5/8" External Retaining
(Superseded to 7010739SM)

$3.49

$

In Stock, only 2 left!

0

21

Snapper Pro 7073061

MOUNTING PLATE, Left Hand Bearing

$

$

Currently unavailable

22

Snapper Pro 5025010X8

BOLT, 1/4-20 X 1" GD5 CZ
(Superseded to 5025010X8SM)

Note: Was 90548 or 27230

$3.99

$

Usually ships in 2-12 days

0

23

Snapper Pro 7091294

WASHER, .28 I.D. x .63 O.D. x .06 Thick Flat

$

$

Not available

24

Snapper Pro 7074186

MOUNTING ARM

$

$

Not available

25

Snapper Pro 7071825

BRACKET, Handle Adjustment
(Superseded to 7071825YP)

Note: replaces 59117

$20.99

$

Usually ships in 2-12 days

0

26

Snapper Pro 5025011X14

BOLT, 5/16-18 X 1-3/4 GD5 YZ
(Superseded to 5025011X14SM)

$3.99

$

Usually ships in 2-12 days

0

27

Snapper Pro 5025057

NUT, 5/16-18 HEX NYLON LOCK
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

28

Snapper Pro 5025010X14

BOLT, 1/4-20 X 1-3/4" GD5 YZ
(Superseded to 5025010X14SM)

Note: Was 91003 or 91813

$3.99

$

In Stock, only 1 left!

0

29

Snapper Pro 7074661

HANDLEBAR
(Superseded to 7074661YP)

$79.99

$

Usually ships in 2-12 days

0

30

Snapper Pro 7072212

GRIP, Twin Stick

$

$

Currently unavailable

31

Snapper Pro 7075026

SPACER
(Superseded to 7075026YP)

$26.99

$

Usually ships in 2-12 days

0

32

Snapper Pro 7074964

BRACKET, Speed Control
(Superseded to 7074964YP)

$4.99

$

Usually ships in 2-12 days

0

33

Snapper Pro 7092010

SCREW, 1/4-20 Shoulder Socket Head
(Superseded to 7092010YP)

$3.49

$

Usually ships in 2-12 days

0

34

Snapper Pro 7075029

SPACER, .498 O.D. x 1.010" long

$

$

Not available
