OCD02 - Exmark Next Lazer Operator Controlled Discharge OCD02 Assembly Parts Diagram

Next Lazer Operator Controlled Discharge

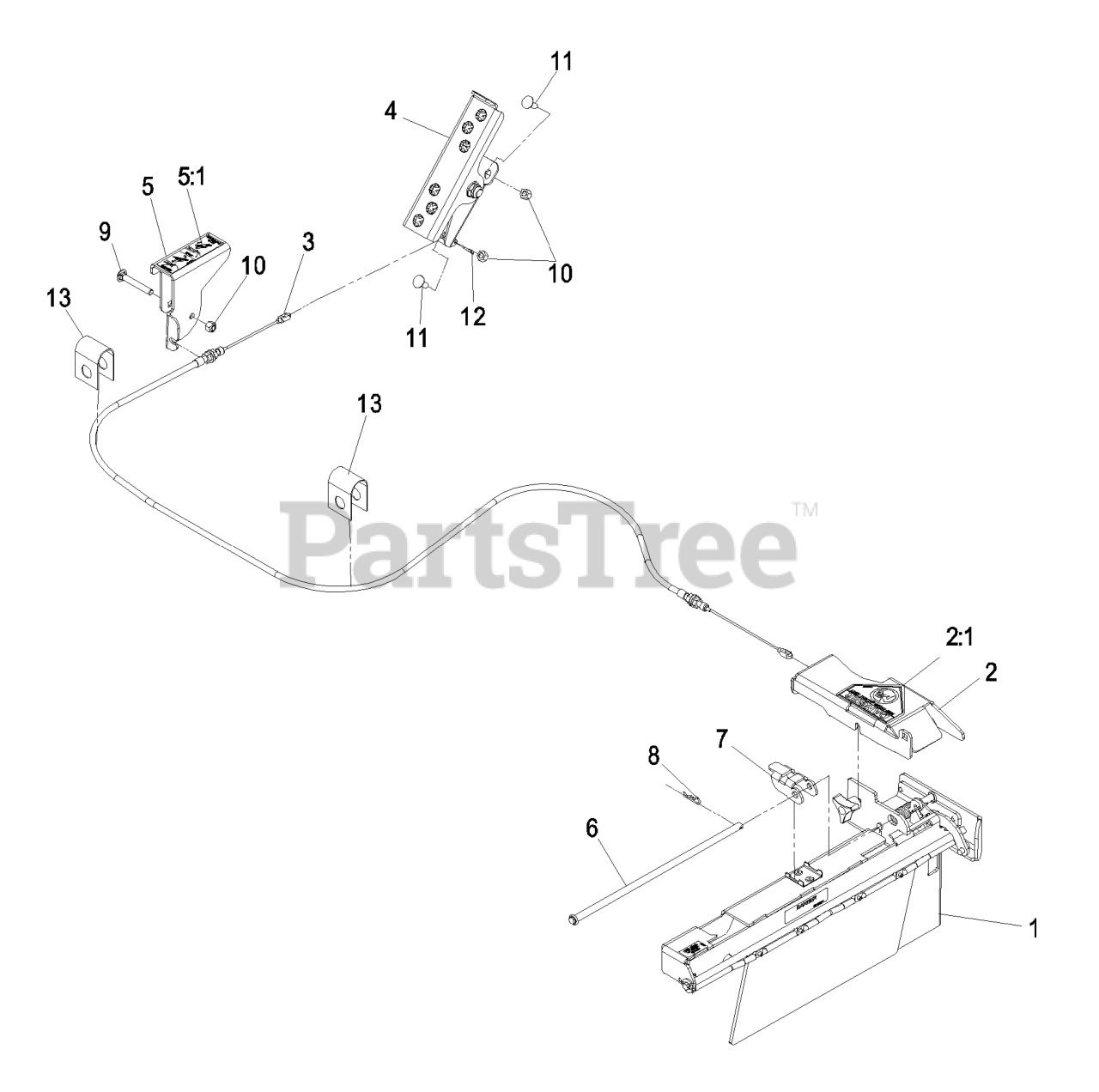

OCD02 Assembly Parts Diagram

  • Title

1

Exmark 109-7160

ASM,GATE LINKAGE

$

$

Not available

2

Exmark 109-9984

ASM,CABLE BRACKET

$85.99

$

In Stock, only 1 left!

0

2:1

Exmark 1-403005

DECAL-DANGER

$5.49

$

In Stock, Qty 20+

0

3

Exmark 109-8256

CABLE,DISCHARGE GATE

$103.99

$

In Stock, only 2 left!

0

4

Exmark 109-9059

ASM,PEDAL - OCD GATE

$178.99

$

Usually ships in 3-6 days

0

5

Exmark 109-7167

ASM,CABLE BRACKET

$63.99

$

Usually ships in 3-6 days

0

5:1

Exmark 109-9928

DECAL,OCDC OPERATION

$11.99

$

Usually ships in 3-6 days

0

6

Exmark 109-9581

ROD,CHUTE PIVOT

$25.99

$

Usually ships in 3-6 days

0

7

Exmark 109-9595

BRACKET,LINK PIVOT

$27.99

$

Usually ships in 3-6 days

0

8

Exmark 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

9

Exmark 3230-7

BOLT-CARR

$0.99

$

In Stock, Qty 10

0

10

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

11

Exmark 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

12

Exmark 3272-5

PIN-COTTER

$1.49

$

In Stock, Qty 8

0

13

Exmark 109-4101

STRAP,CABLE HANGER

$8.99

$

Usually ships in 3-6 days

0
