ODP 21400 - Snapper 21" Walk-Behind Mower, 4hp Drive System Self - Propelled Opening Price Point Mowers Parts Diagram

21" Walk-Behind Mower, 4hp

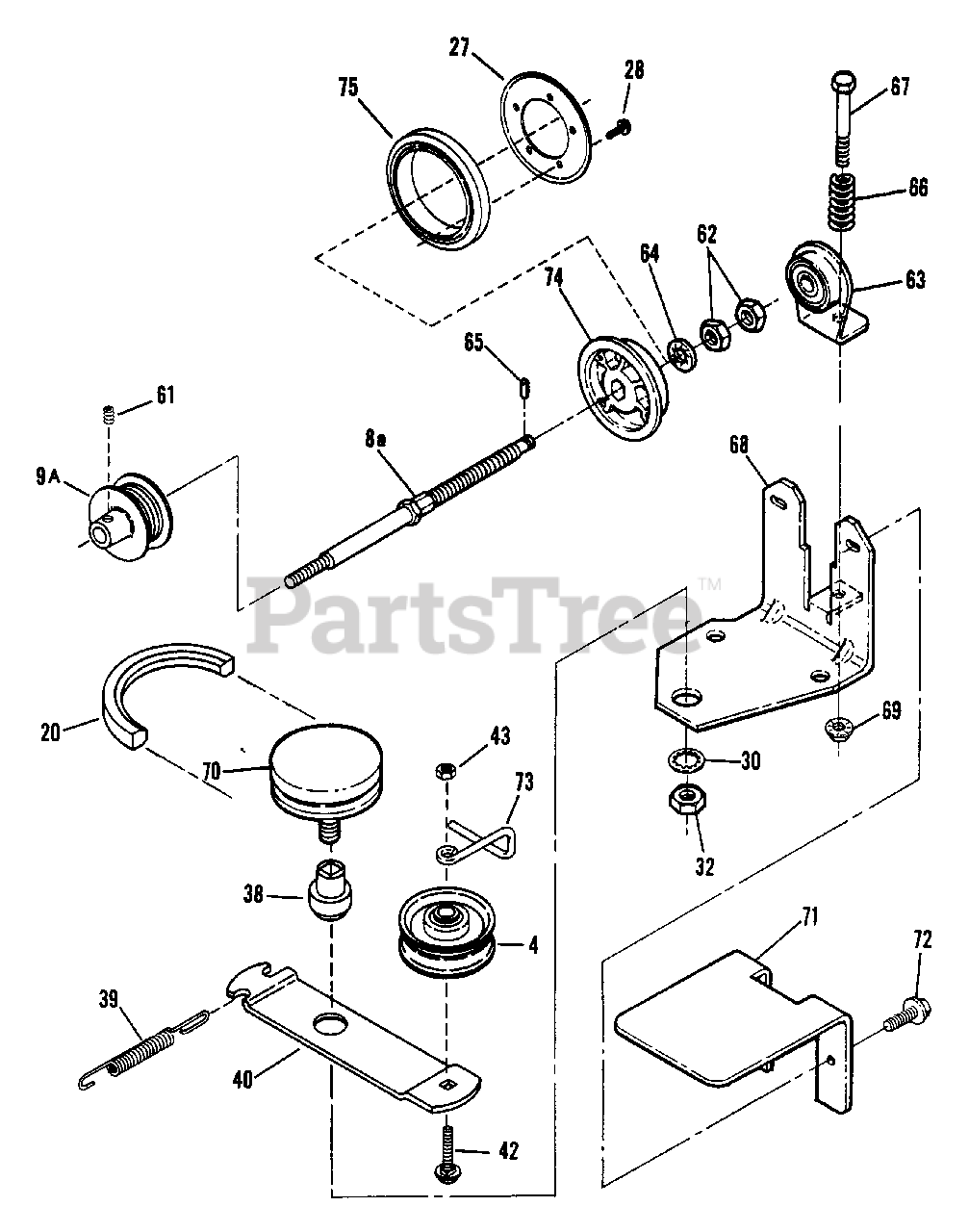

Drive System Self - Propelled Opening Price Point Mowers Parts Diagram

  • Title

4

Snapper 7012124

PULLEY, Idler
(Superseded to 7012124YP)

$18.99

$

In Stock, Qty 14

0

8A

Snapper 7024547

*SHAFT, Hex Drive
(Superseded to 7024547YP)

$96.99

$

Usually ships in 2-12 days

0

9A

Snapper 7024516

*PULLEY, Poly V (1-3/4" O.D.)
(Superseded to 7019383YP)

$54.99

$

In Stock, only 2 left!

0

20

Snapper 7012353

BELT, Engine Drive
(Superseded to 7012353YP)

$15.99

$

In Stock, only 4 left!

0

Snapper 7501000

ASSEMBLY, Driven Disc
(Superseded to 7600109YP)

Note: Was 7053225 (Includes items 21 thru 29)

$143.99

$

In Stock, only 3 left!

0

Snapper 7501000

ASSEMBLY, Driven Disc
(Superseded to 7600109YP)

Note: Was 7053225 or 54091 (FRP21600TV & P21600TV Models Only)(Includes 21A thru 29)

$143.99

$

In Stock, only 3 left!

0

27

Snapper 7031013

PLATE, Ring Retaining
(Superseded to 7031013YP)

$5.99

$

In Stock, Qty 6

0

28

Snapper 7090913

SCREW, #10-24 x 1/2" Hex Washer Self-Tap (Torx)
(Superseded to 704060)

$3.49

$

In Stock, Qty 12

0

30

Snapper 7090390

WASHER, 3/8 Internal Tooth Lock
(Superseded to 703930)

$4.49

$

In Stock, Qty 6

0

32

Snapper 7091630

NUT, 3/8-24 Hex, Grade B
(Superseded to 703895)

Note: Was 90155

$4.49

$

In Stock, Qty 7

0

38

Snapper 7017696

BUSHING
(Superseded to 703971)

$5.99

$

In Stock, only 1 left!

0

39

Snapper 7029025

SPRING (Wheel Drive & Idler)
(Superseded to 7029025YP)

Note: Was 17326

$5.99

$

In Stock, Qty 20+

0

40

Snapper 7032116

ARM, Idler
(Superseded to 7032116YP)

$13.99

$

In Stock, only 3 left!

0

42

Snapper 7090947

BOLT, 1/4-20 x 1-1/2" Carriage, Grade 5
(Superseded to 7090947YP)

$5.99

$

In Stock, Qty 12

0

43

Snapper 7090372

NUT, 1/4-20 Hex Center Lock, Grade 5 or B
(Superseded to 703954)

$

$

Not available

Snapper 7052987

ASSEMBLY, Deck Bracket
(Superseded to 7052987YP)

Note: (Includes items 44 thru 46)

$42.99

$

In Stock, only 1 left!

0

61

Snapper 7013670

*SCREW, 1/4-28 x 1/4" Hex Socket Set

$

$

Not available

62

Snapper 7090265

*NUT, 1/2-20 Hex, Grade 2

$

$

Currently unavailable

63

Snapper 7052854

*ASSEMBLY, Holder & Bearing
(Superseded to 7052854YP)

$62.99

$

Usually ships in 2-12 days

0

64

Snapper 7090509

*WASHER, 1/2 Internal Tooth Lock
(Superseded to 7090509YP)

$4.49

$

Usually ships in 2-12 days

0

65

Snapper 7014001

*PIN, 1/8 x 3/4" Roll
(Superseded to 7014001SM)

$3.49

$

Usually ships in 2-12 days

0

66

Snapper 7024545

*SPRING
(Superseded to 7024545YP)

$3.49

$

Usually ships in 2-12 days

0

67

Snapper 7090464

*SCREW, 5/16-24 x 2-3/4" Hex Head Cap, Grade 5

$

$

Not available

68

Snapper 7033670

*BRACKET, Deck
(Superseded to 7033670YP)

$17.99

$

Usually ships in 2-12 days

0

69

Snapper 7090480

*NUT, 5/16-24 Hex Flange Top Lock
(Superseded to 704279)

$3.49

$

In Stock, only 4 left!

0

70

Snapper 7052867

*ASSEMBLY, Drive Disk

$

$

Not available

71

Snapper 7033671

*COVER, Driven Ring
(Superseded to 7033671YP)

$20.99

$

Usually ships in 2-12 days

0

72

Snapper 7090913

*SCREW, #10-24 x 1/2" Hex Washer Self-Tap (Torx)
(Superseded to 704060)

Note: Was 90307

$3.49

$

In Stock, Qty 12

0

73

Snapper 7016380

*SCRAPER, Drive Pulley
(Superseded to 7016380YP)

$22.99

$

In Stock, only 1 left!

0

74

Snapper 7024546

*HUB, Driven Disc
(Superseded to 7024546YP)

Note: Was 24928 (Accepts Items 26, 27 & 28)

$82.99

$

Usually ships in 2-12 days

0

75

Snapper 7023364

*RING, Driven
(Superseded to 704059)

$14.99

$

In Stock, Qty 20+

0
