P 21506BE (83380) - Snapper 21" Walk-Behind Mower, 5hp Rear Wheels Parts Diagram

21" Walk-Behind Mower, 5hp

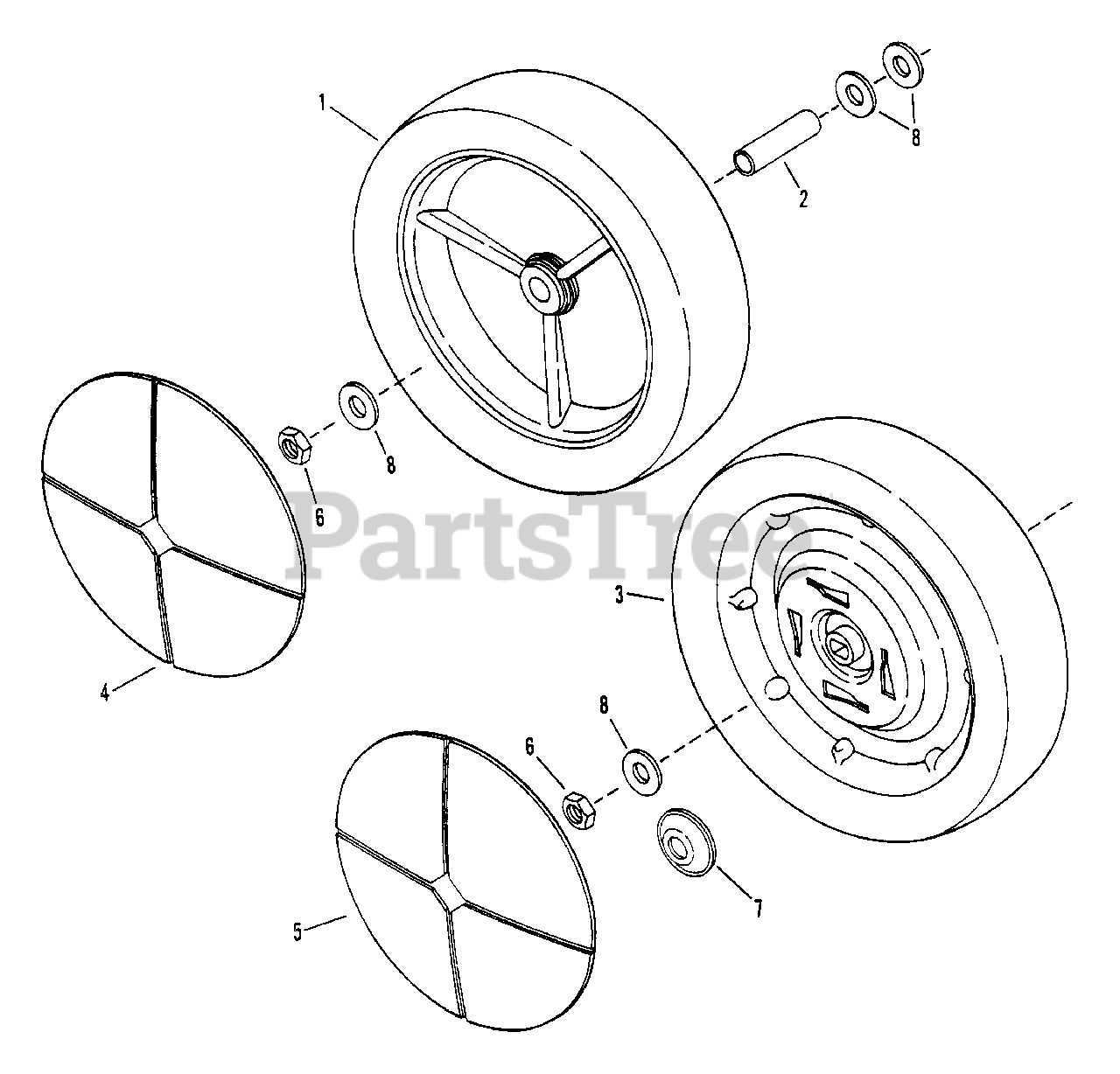

Rear Wheels Parts Diagram

  • Title

1

Snapper 7019420

WHEEL,9 x 2.00 Plastic Rim
(Superseded to 7012603YP)

Note: Was 19334 (Push Models)("91 Models & Later)

$50.99

$

In Stock, Qty 15

0

2

Snapper 7019420

WHEEL, 9 x 2.00 Plastic Rim
(Superseded to 7012603YP)

Note: Was 19196 (Push Models, 1990 Models & Earlier)

$50.99

$

In Stock, Qty 15

0

2

Snapper 7012309

BUSHING, Axle
(Superseded to 7012309YP)

Note: (Push)

$5.99

$

In Stock, Qty 20+

0

3

Snapper 7022801

WHEEL, 9 x 2.00 Steel Rim
(Superseded to 7014604YP)

Note: Was 19336 (Self-Propelled)("91 Models & Later)

$50.99

$

In Stock, only 2 left!

0

3

Snapper 7019201

WHEEL, 9 x 2.00 Steel Rim
(Superseded to 7014604YP)

Note: Was 19198 (Self-Propelled, 1990 Models & Earlier)

$50.99

$

In Stock, only 2 left!

0

4

Snapper 7019385

COVER, Wheel

Note: (Push & w.5 H.P. Self-Propelled)

$5.99

$

Usually ships in 2-12 days

0

5

Snapper 7019349

COVER, Wheel

Note: (Self-Propelled)

$

$

Not available

6

Snapper 7090377

NUT, 5/16-18 Hex Center Lock
(Superseded to 7090377SM)

$5.49

$

In Stock, Qty 20+

0

7

Snapper 7031960

CAP, Deep-Dish Hub
(Superseded to 7031960YP)

Note: (Self-Propelled)(Steel Wheels)

$3.99

$

Usually ships in 2-12 days

0

8

Snapper 7031961

WASHER, 7/16 Flat
(Superseded to 703964)

$4.49

$

In Stock, Qty 20+

0
