P 21558BV (80292) - Snapper 21" Walk-Behind Mower, 5.5hp Rear Wheel Brackets, Latches Parts Diagram

21" Walk-Behind Mower, 5.5hp

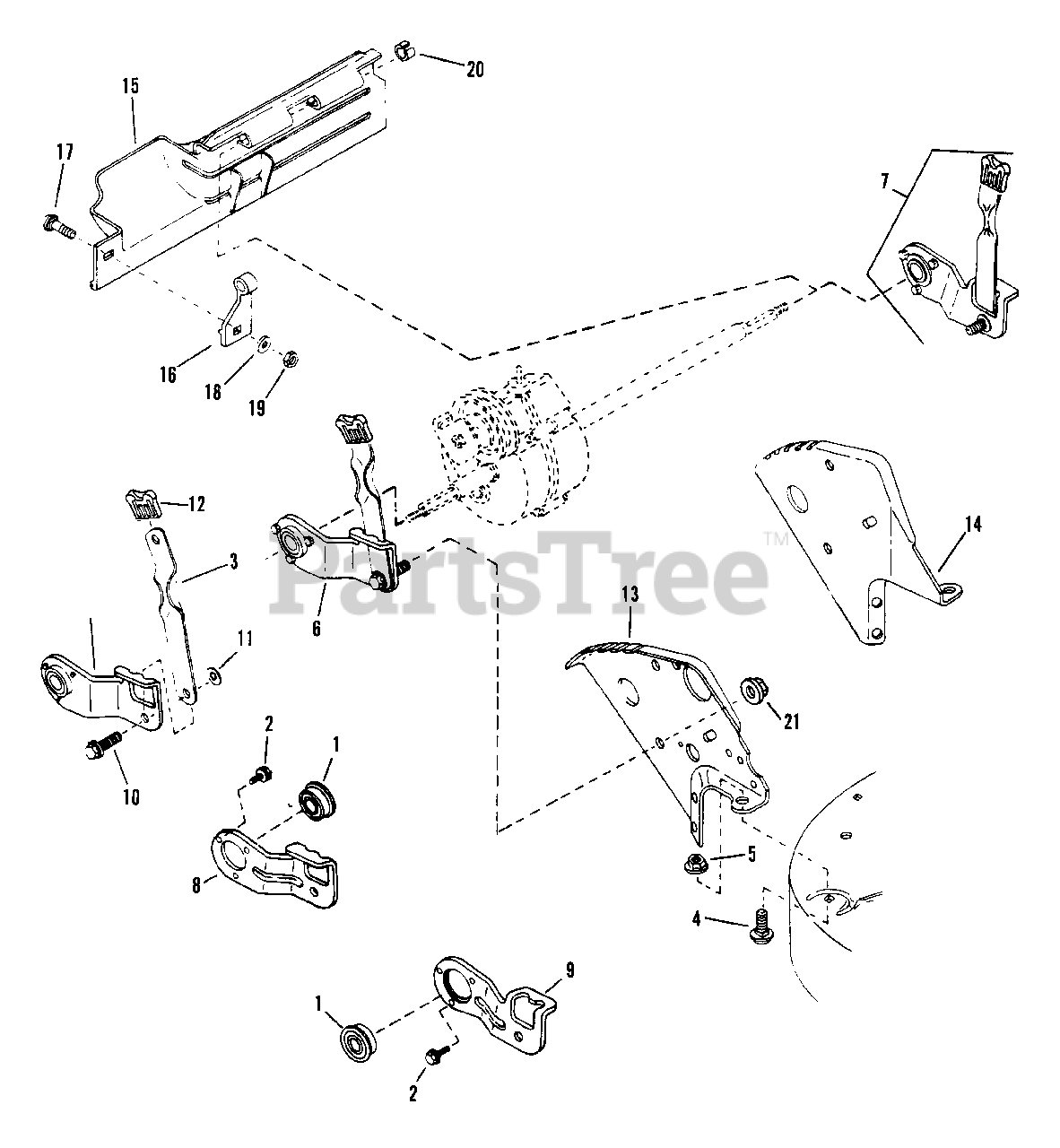

Rear Wheel Brackets, Latches Parts Diagram

  • Title

1

Snapper 7046983

BEARING
(Superseded to 7046983YP)

Note: Was 18767

$22.99

$

In Stock, Qty 5

0

2

Snapper 7091012

SCREW, #10-32 x 3/8" Self-Tapping
(Superseded to 703967)

$3.49

$

In Stock, only 3 left!

0

3

Snapper 7035717

LATCH, Height Adjusting (Long)
(Superseded to 7035717YP)

Note: Was 19218

$6.99

$

In Stock, only 3 left!

0

4

Snapper 7091508

BOLT, 5/16-18 x 3/4" Short Neck Carriage
(Superseded to 703185)

Note: Was 90001

$3.49

$

In Stock, Qty 20+

0

5

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0

6

Snapper 7054246

ASSEMBLY, Wheel Arm
(Superseded to 7054246YP)

Note: Was 51814 (Includes items 1, 2, 3, 8, 10, 11, 12)

$

$

Not available

7

Snapper 7054247

ASSEMBLY, Wheel Arm
(Superseded to 7054247YP)

Note: Was 51815 (Includes items 1, 2, 3, 9, 10, 11, 12)

$40.99

$

In Stock, Qty 9

0

8

Snapper 7032722

ARM, Right Rear Wheel, "P" Models
(Superseded to 7032722YP)

$6.99

$

In Stock, only 1 left!

0

9

Snapper 7032723

ARM, Left Rear Wheel, "P" Models
(Superseded to 7032723YP)

$6.49

$

In Stock, only 1 left!

0

10

Snapper 7015761

BOLT, 5/16-18 x 3/4" Shoulder
(Superseded to 703839)

$5.49

$

In Stock, only 4 left!

0

11

Snapper 7011791

RETAINER, 5/16 Bolt
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

12

Snapper 7027702

GRIP, Latch
(Superseded to 7103793YP)

$4.49

$

In Stock, Qty 9

0

13

Snapper 7033494

BRACKET, Right Rear Wheel
(Superseded to 7033494YP)

Note: (For Self-Propelled "P" Models)

$41.99

$

Usually ships in 2-12 days

0

14

Snapper 7033495

BRACKET, Left Rear Wheel
(Superseded to 7033495YP)

Note: (For Self-Propelled "P" Models)

$19.99

$

Usually ships in 2-12 days

0

15

Snapper 7019522

GUARD, Rear Foot
(Superseded to 7029008YP)

Note: (For Self-Propelled "P" Models)

$32.99

$

In Stock, only 1 left!

0

Snapper 7017010

GUARD, Rear Foot
(Superseded to 7042918YP)

Note: (For Euro Models)

$21.99

$

In Stock, Qty 15

0

16

Snapper 7012616

SUPPORT, Foot Guard
(Superseded to 7012616YP)

$4.99

$

In Stock, only 1 left!

0

17

Snapper 7091604

BOLT, 1/4-20 x 1/2" Short Neck Carriage, Grade 5
(Superseded to 703978)

Note: Was 90005

$3.99

$

In Stock, only 3 left!

0

18

Snapper 7090053

WASHER, 1/4 Internal Tooth Lock
(Superseded to 703462)

Note: Was 91023

$4.49

$

In Stock, Qty 12

0

19

Snapper 7091576

NUT, 1/4-20 Hex
(Superseded to 703127)

Note: Was 90063

$3.49

$

In Stock, only 3 left!

0

20

Snapper 7023791

RING, Black
(Superseded to 704009)

$3.99

$

Usually ships in 2-12 days

0

21

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0
